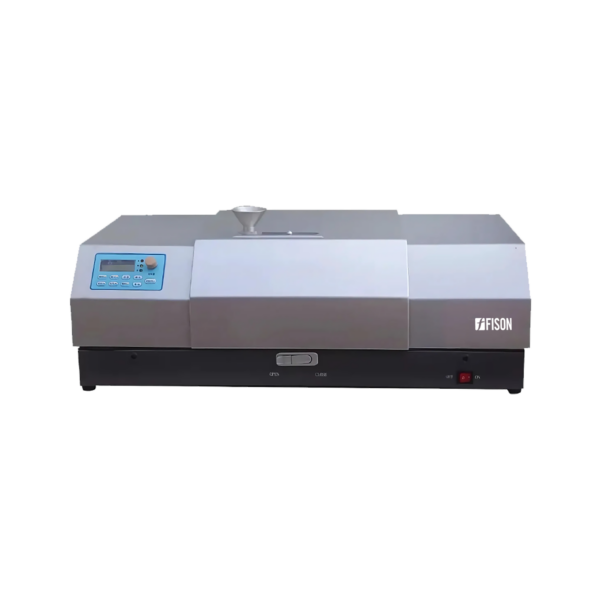

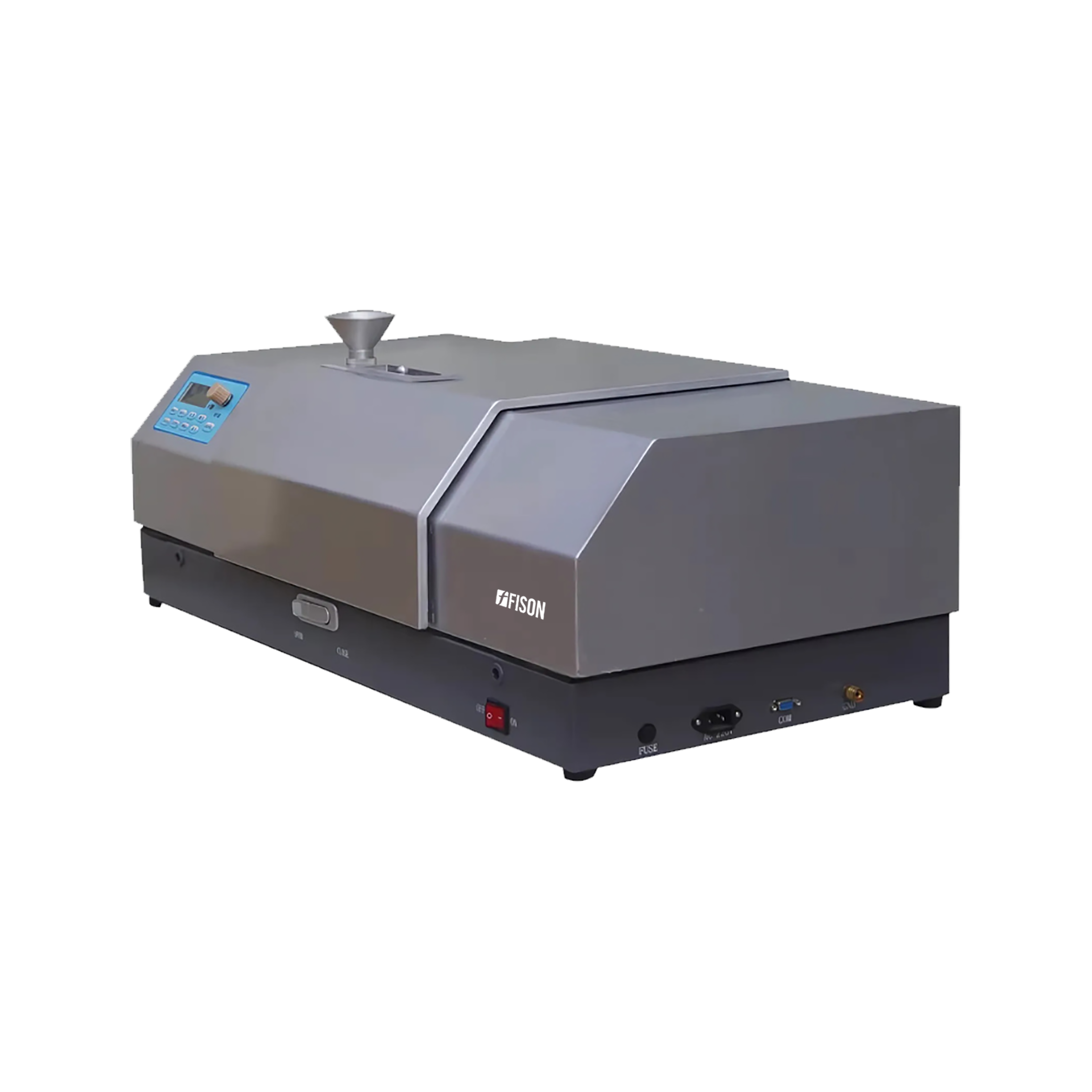

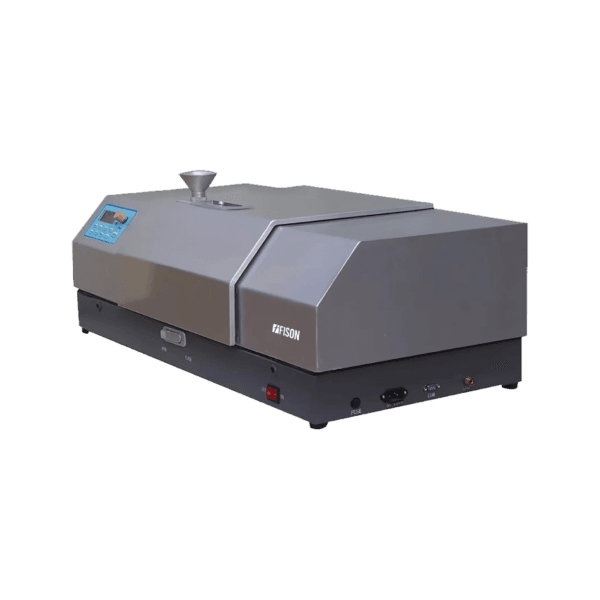

Laser Particle Size Analyzer FM-LPA-A201 is a dry dispersion device using MIE scattering theory. It measures particle sizes from 0.1 to 300 µm with 40 detector channels. High-sensitivity photodetectors and a He-Ne laser ensure precise results. An intelligent operating system supports dry turbulence dispersion and shock shearing effects. Results are delivered in under a minute with flexible reporting formats
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Laser particle size analyzer is used to measure the sizes of particles in a material across cosmetics, food, coal, paint, paper, petrochemicals, dyes, inks, explosives, kaolin, medicine, metal powder, mica, milling, minerals, oxides industries
| Dispersion Type | Dry |
| Measurement Range | 0.1 to 300 µm |
| Number of channels | 40 |
| Accuracy Error | <1% (National Standard Sample D50) |
| Repeatability Error | <1% (National Standard Sample D50) |
| Illumination Source | Red Fiber Laser (λ= 632.8nm,P>2.0MW) |
| Dispersion Medium | Compressed air |
| Detector | High-sensitive ring photoelectric detector |
| Dispersion Method | Dry-turbulence dispersion mode |
| Dispersion Technique | Normal shock wave shear technique |
| Automated control mode | Automatically control Air flow speed, dispersion, test and analysis. Better Repeatability after remove human-factor |
| Feeding | Automatic vibration feeding |
| OpticalAlignment | Three dimension alignment |
| Function mode | Automatic/ Manual |
| Standard | ISO 13320 to 2020 |
| Testing Rate | <1 min/time |
| Operating software | WIN 7/10/XP, 64 bits , Core i3/better 2G, Hard disk 160G, Disk D |
| Analysis mode | Free Distribution, R-R Distribution, Logarithm Normal Distribution, Mesh number classification |
| Statistical Approach | Volume Distribution, Quantity Distribution |
| Result comparison | Testing results of various samples, outcomes from different batches, samples before and after processing, and test results at different times |
| User – defined Analysis | Calculate percentage by particle size, determine particle size from percentage, assess percentage by size range, and meet representation demands for particle tests across industries |
| Test Report | Word, Excel, Photo( Bmp), Text etc. |
| Interface | USB |
| Dimension ( L× W ×H ) | 880 × 410 × 300 mm |
| Box 01 Packaging Dimension (L × W × H) | 1090 × 610 × 500 mm |
| Box 02 Packaging Dimension (L×W×H) | 860 × 450 × 750 mm |
| Box 03 Packaging Dimension (L × W × H) | 410 × 410 × 550 mm |
| Net Weight | 36 kg |
| Box 01 Gross Weight | 65 kg |
| Box 02 Gross Weight | 60 kg |
| Box 03 Gross Weight | 10 kg |
