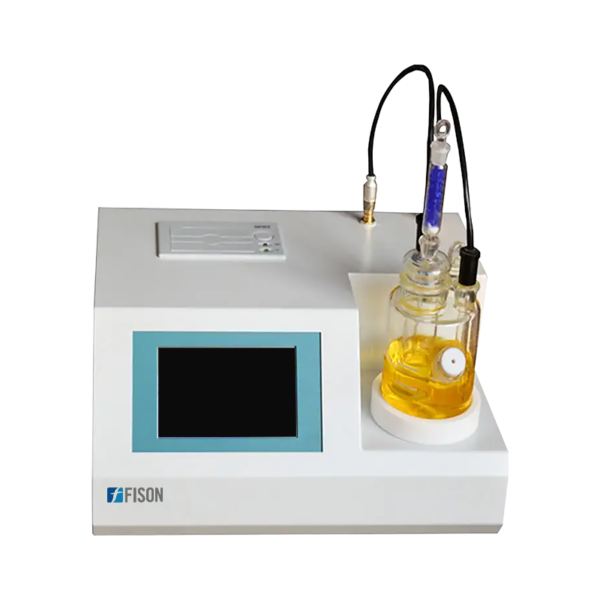

Karl Fischer titrator FM-AKT-C100 is a volumetric moisture testing unit programmed by Itanium and a double CPU with direct A/D conversion for testing electrode data. It is characterized by auto stirring and analyzing functions. The enclosed titration system avoids deviations and improves the quality index.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used in chemical industries, petroleum and power industries, pharmaceutical industries, pesticides, rigs, natural gas plants,etc
| Testing range | 0.01 µg to 200 mg of H 2 O |
| Water content range | 0.0001 % to 100 % |
| Sensitivity | 0.01 µg H 2 O |
| Rate of electrolysis | 2.4 mg H2 O/min |
| Electrolysis current | Auto-control within 430 mA |
| Accuracy | Water content: 2 µg H2O to 100 µg H2O, Deviations: ≤ ±1 µg Water Content: 100 µg H2O to 1000 µg H2O,Deviations: ≤ ±2.9 µg Water Content: > 1000 µg H2O, Deviations: ≤ ±0.2% (excluding deviations of sample injection) |
| Ambient temperature | 5 °C to 40 °C |
| Relative humidity | < 85 % |
| Power consumption | < 40 W |
| Power supply | AC 220 V ± 10 %, 50 Hz ± 2.5 Hz |
| Dimensions | 390 × 270 × 190 mm |
| Weight | 7 kg |
