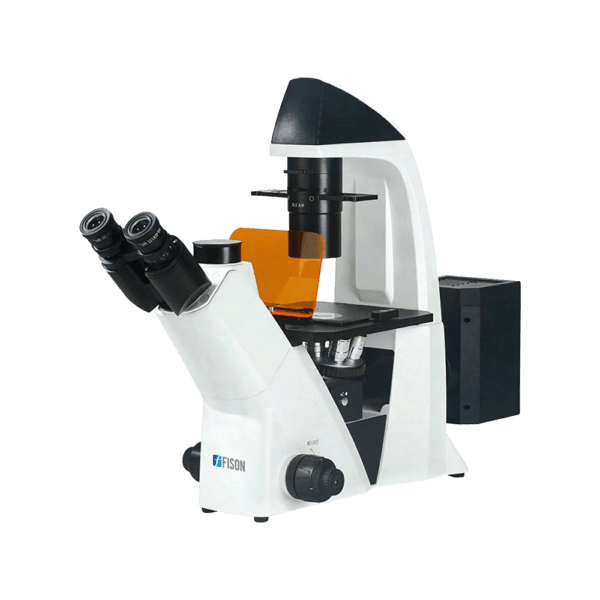

Inverted Fluorescence Microscope FM-FM-B100 features trinocular head inclined at 45° and adjustable interpupillary distance ranging from 48 to 76 mm. It has infinite optical system with magnifying power up to 40 times. Offers wide field eyepiece and 4 long working distance objectives. Integrated with blue, green and Ultraviolet EPI Fluorescent filters for precise wavelength selection. Our Inverted Fluorescence Microscope is suitable for live cell imaging in cell culture labs.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Inverted Fluorescence Microscope is essential for observing fluorescently labeled samples in protein-protein interaction, diagnostics and gene expression studies including eGFP, RFP, DAPI and more.
| Optical System | Infinite | ||||||||||
| Viewing Head | Trinocular head, Inclination 45°, Interpupillary distance 48 to 76 mm, 360° rotation, with trinocular port for digital camera, Light distribution (both): 100:0 (100% for eyepiece), 80:20 (80% for trinocular head, and 20% for eyepiece) | ||||||||||
| Eyepiece | Wide field eyepiece WF 10X/22mm, adjustable diopter | ||||||||||
| Nosepiece | 5 positions, with bidirectional rotation on ball bearings and click stop | ||||||||||
| Objectives | Long Working Distance Infinite Plan Objective LPL 5X/0.13, W.D 24.23mm Long Working Distance Infinite Plan Phase Objective L Plan FL PHP 10X/0.25, WD 10.3mm, PH1 Long Working Distance Infinite Plan Phase Objective L Plan FL PHP 20X/0.45, WD 5.8mm, PH2 Long Working Distance Infinite Plan Phase Objective L Plan FL PHP 40X/0.65, WD 5.1mm, PH3 | ||||||||||
| Stage | Stage size XY 210 × 241 mm Round slide size φ110 mm Attached mechanical stage (available for 96 holes plate, moving range XY: 128 × 80 mm), with φ54 mm culture dish holder | ||||||||||
| Focusing | Coaxial coarse and fine adjustment, vertical objective movement, coarse stroke 42 mm per rotation, fine stroke 0.2mm per rotation, minimum reading 2μm | ||||||||||
| Condenser | Long working distance, quickly detachable, N.A.0.3, working distance (with condenser): 72 mm, working distance (without condenser, for extra high culture dish): 195 mm | ||||||||||
| Illumination | 6V/30W Halogen lamp, Koehler Illumination | ||||||||||
| Phase Annulus | 20X Phase annulus plate | ||||||||||
| Power Supply | 110V/220V, 50/60Hz | ||||||||||
| EPI Fluorescent Attachment Kit |
|
