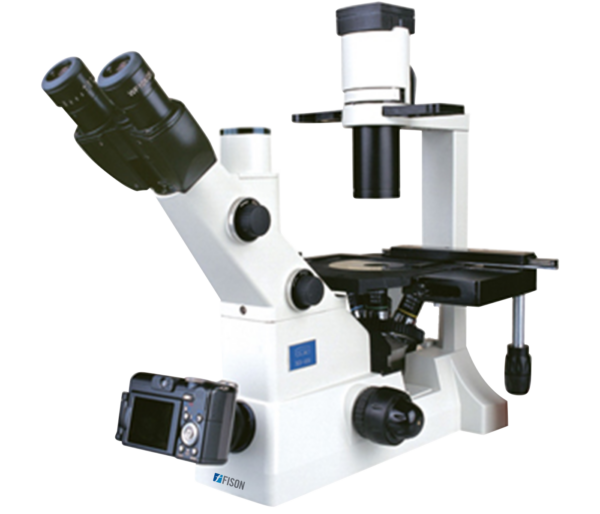

Inverted biological microscope FM-BM-B200 offers compact and sleek design, stable and reliable (T) type base unit with infinite optical system. Equipped with high resolution and long working distance (infinite) phase contrast objectives, to deliver high quality images. User can configure the cell more clearly and obtain high quality images of the specimen. This user-friendly inverted microscope is used in many branches of biology.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used for the range of applications in biotechnology, tissue culture, microbiology, medicine and other industry.
| Optical System | Infinite optical system |
| Viewing Head | Seidentopf binocular viewing head, inclined at 45°, 360° rotation, interpupillary distance adjustable 48 to 75 mm |
| Eyepiece | Wide field eyepiece WF10X/22 mm, Eyepiece tube diameter: 30 mm |
| Objectives | Infinite plan achromatic objective 4×/0.10 WD=22 LWD Infinite plan achromatic phase objective 10×/0.25 WD=6 LWD Infinite plan achromatic phase objective 20×/0.4 WD=3.1 LWD Infinite plan achromatic phase objective 40×/0.55 WD=2.2 |
| Nosepiece | Backward Quintuple nosepiece |
| Condenser | Extreme long work distance condenser (ELWD) N.A. 0.3, LWD 72 mm (without condenser 150 mm) |
| Centering Telescope | Centering Telescope 30 mm |
| Phase Kit | 10X, 20X, 40X phase annulus plate (adjustable) |
| Stage | Plain stage 230 × 170 mm Attachable Mechanical Stage, X,Y Coaxial Control, Moving Range 80×120 mm Auxiliary Stage, Terasaki Holder, Glass Insert Petri Dish Holder 38 mm Petri Dish Holder 54 mm |
| Focusing System | Coaxial coarse fine adjustment, fine division 0.002 mm, moving range up 4.5 mm & down 4.5 mm |
| Illumination | 6 V/30 W, halogen lamp, brightness adjustable |
| Filter | Blue, green, ground glass with diameter 45 mm |
| Dimension | 650×430×610 mm |
| Gross Weight | 14 kg |
