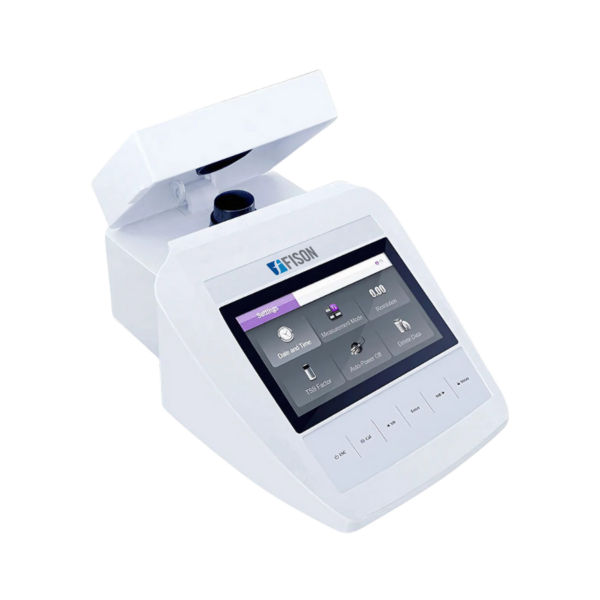

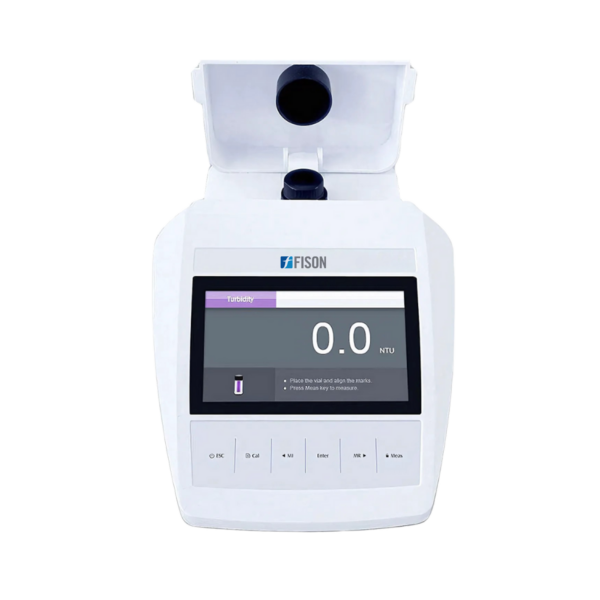

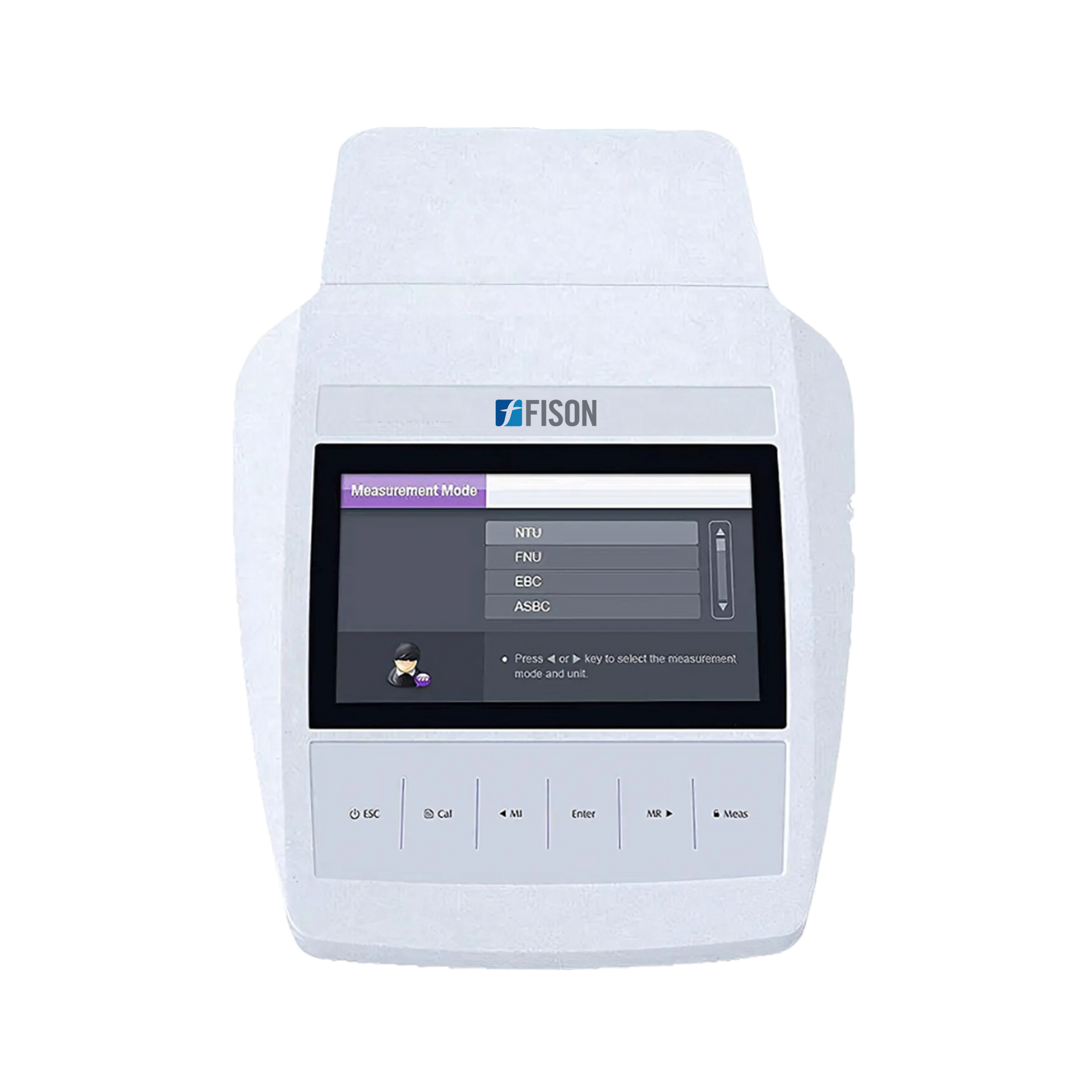

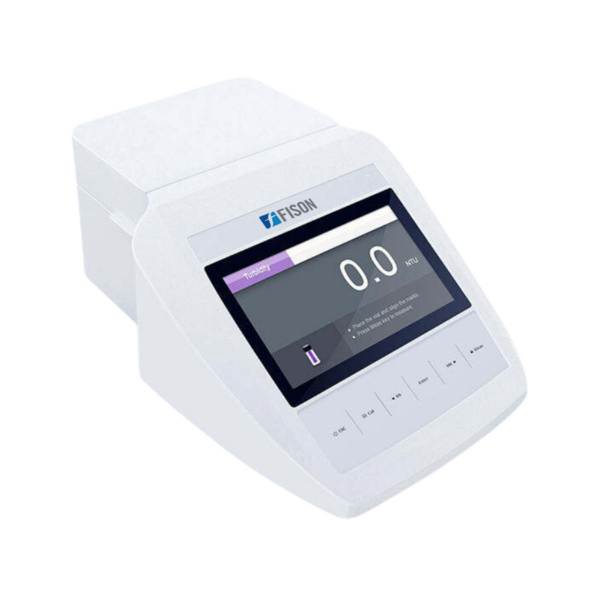

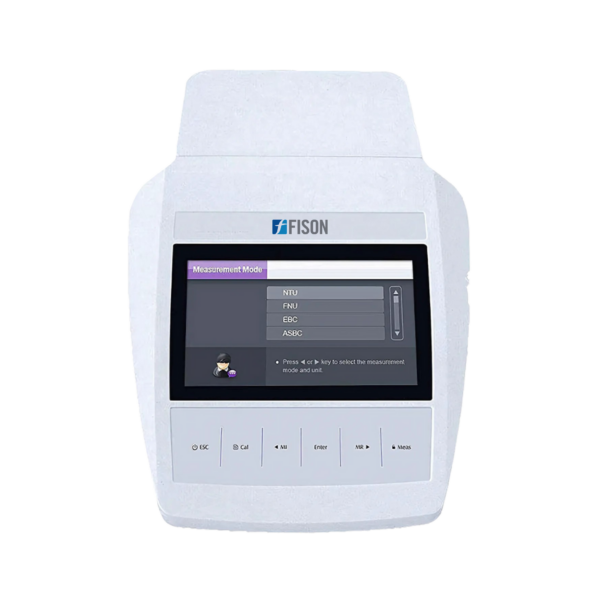

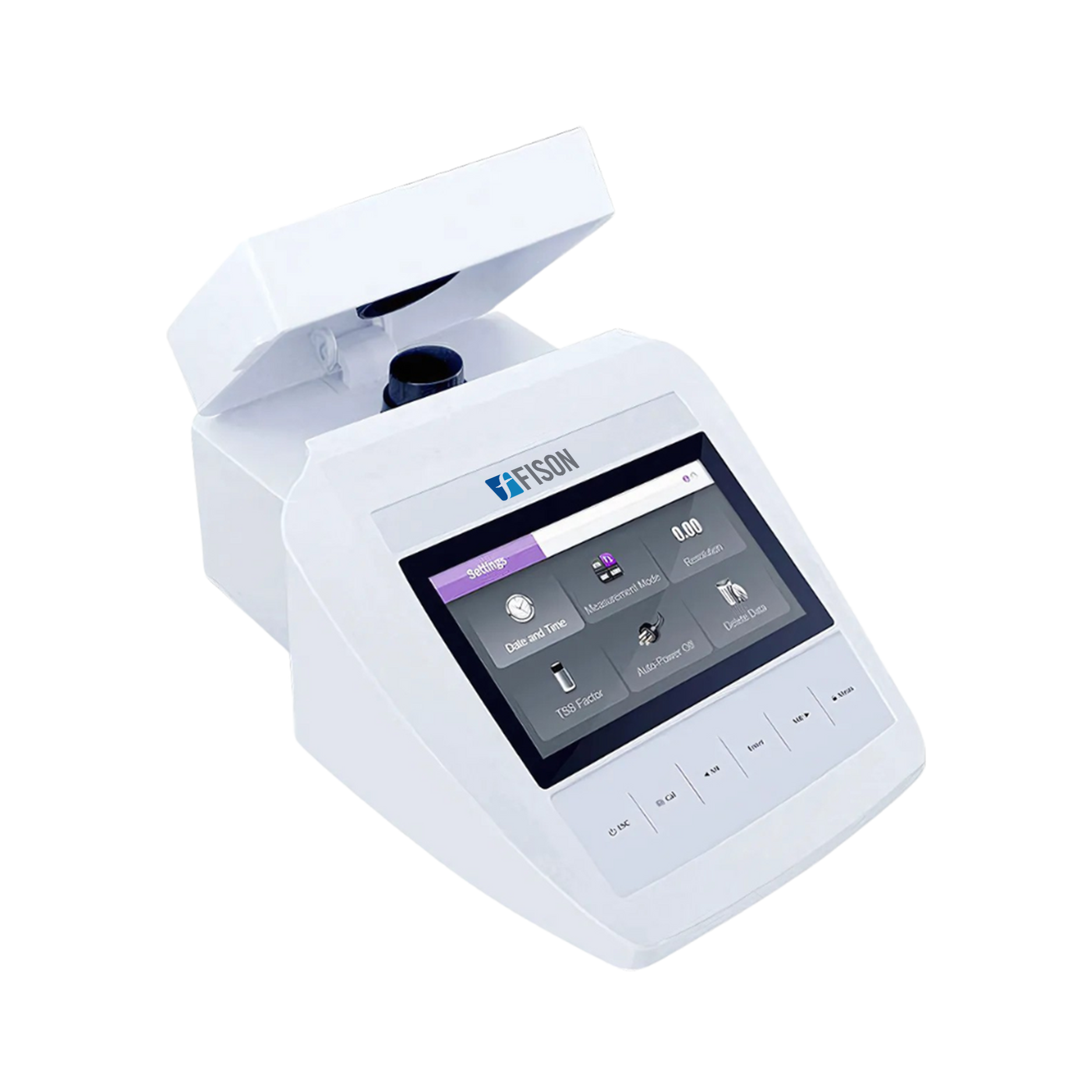

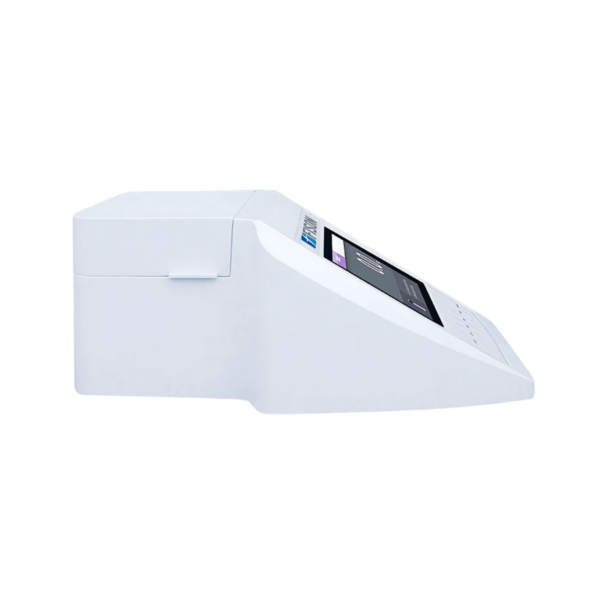

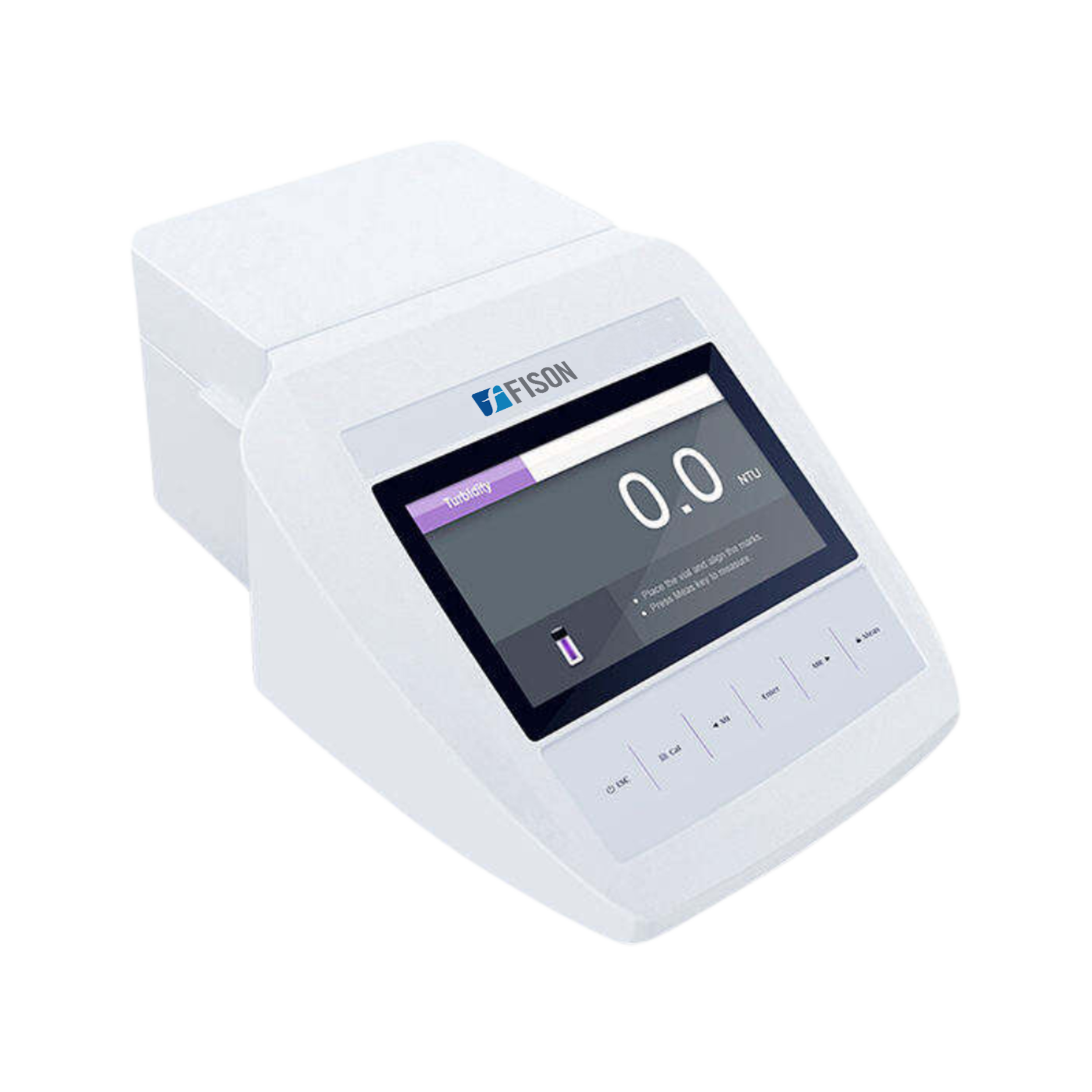

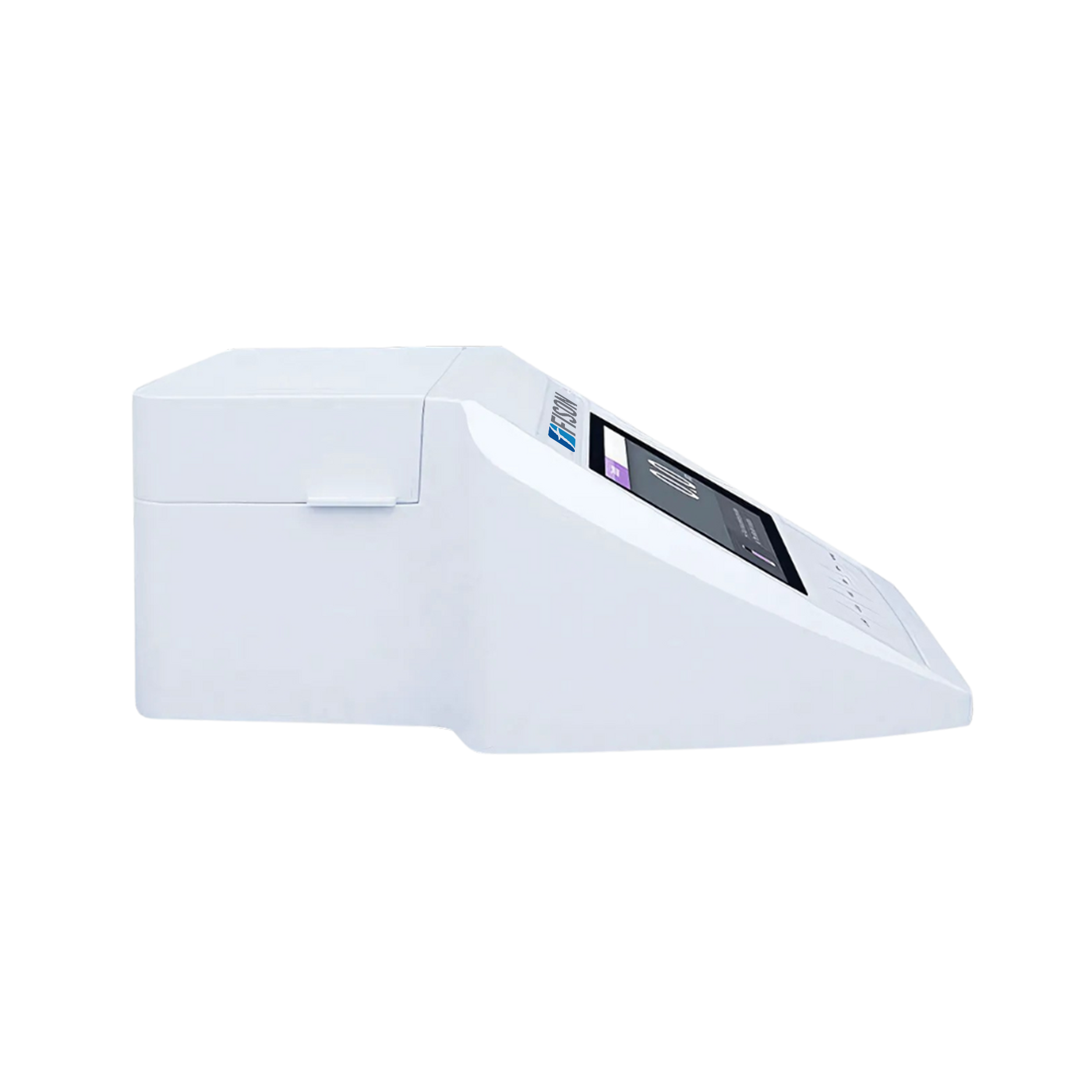

Infrared Turbidity Meter FM-ITM-A100 offers a resolution of 0.001, ensuring highly accurate measurements. It features a 4.3-inch FTF colour touch screen with clear data display. This has built-in data printing and can quickly generate reports on-site. The device provides enhanced measurement accuracy for reliable turbidity readings. Our meter has an automated system calibration for consistent and precise performance, reducing the need for manual adjustments.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Infrared Turbidity Meter FM-ITM-A100 measures the turbidity of liquids using infrared light. It is used in water testing, wastewater treatment, beverage production, and environmental studies to check the clarity of liquids.
| Measuring Range | 0.000-2000 NTU, 0-500 EBC, 0-9999 ASBC |
| Resolution | 0.001 |
| Repeatability | ≤ 0.3% |
| Zero Drift | ≤ ±0.3% FS |
| Stability | ≤ ±0.3% FS |
| Stray Light | < 0.02 NTU |
| Light Source | Infrared LED |
| Detector | Silicon photo receiver |
| Data Storage | 800 sets |
| Power Supply | 100 V to 230 V, 50 Hz/60 Hz |
| Product Dimensions (W × D × H) | 250 × 177 × 96 mm |
| Packaging Dimensions (W × D × H) | 350 × 245 × 260 mm |
| Net Weight | 1.5 kg |
| Gross Weight | 4 kg |
