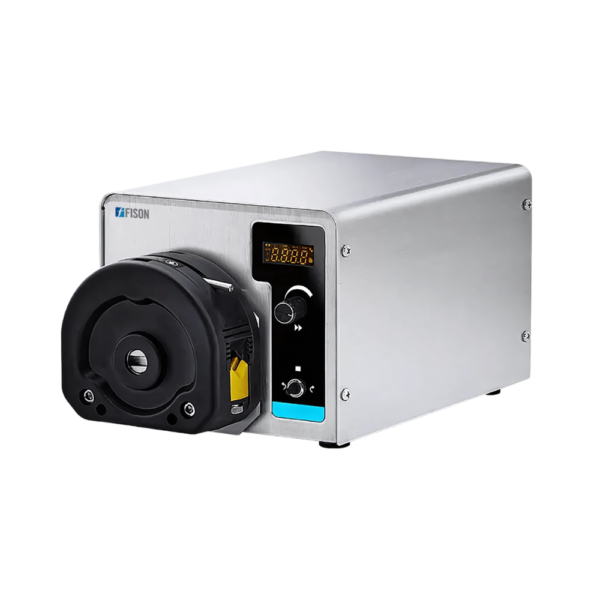

Industrial Peristaltic Pump FM-IPP-A100 is designed for precision fluid transfer, featuring a maximum flow rate of 6000 mL/min. It operates at a high speed of up to 600 rpm with a reversible flow direction for enhanced flexibility. Its brushless DC motor ensures powerful, stable, and long-lasting performance. Our pump features a user-friendly digital interface, complete with a 4-digit LED display and intuitive control knob, allowing for seamless operation.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Industrial Peristaltic Pump FM-IPP-A100 is widely used in Pharmaceutical and Biotech, Food and Beverage, Chemical Processing, Water and Wastewater Treatment, Mining and Construction, Medical and Laboratory.
| Max Flow | 6000 mL/min |
| Max Speed | 600 RPM (Reversible) |
| Speed Resolution | 1 rpm |
| Display Method | 4-digit LED displays current speed/flow |
| Speed Mode | Digital knob to adjust speed |
| Back Suction Angle | 10° to 720° (0° means no back suction) |
| Back Suction Speed | 30 to 300 rpm |
| External Control Interface | DB-15 |
| External Control Method | Start control/direction control/speed control (0-5V, 0-10V, 4-20mA optional), RS485 serial communication |
| Ambient Temperature | 0℃ to 40℃ |
| Protection Level | IP31 (Indoor use, avoid long-term exposure to ultraviolet rays) |
| Power | Less than 100W |
| Power Supply | AC220V ±10% (Standard) or AC110V ±10% (Optional) |
| Drive Size | 267 x 177 x 152.3 mm |
| Dimensions | 400 x 300 x 250 mm |
| Drive Weight | 4.8 kg |
| Gross Weight | 10.5 kg |
