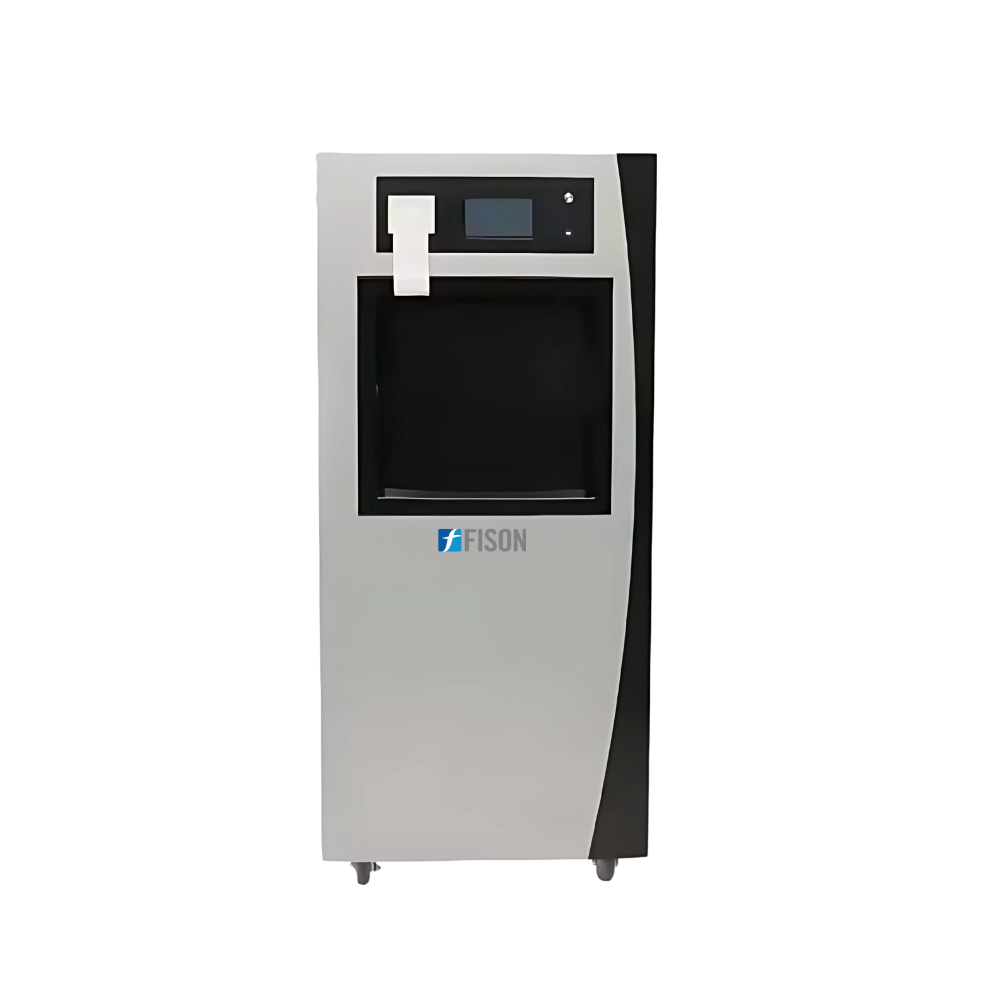

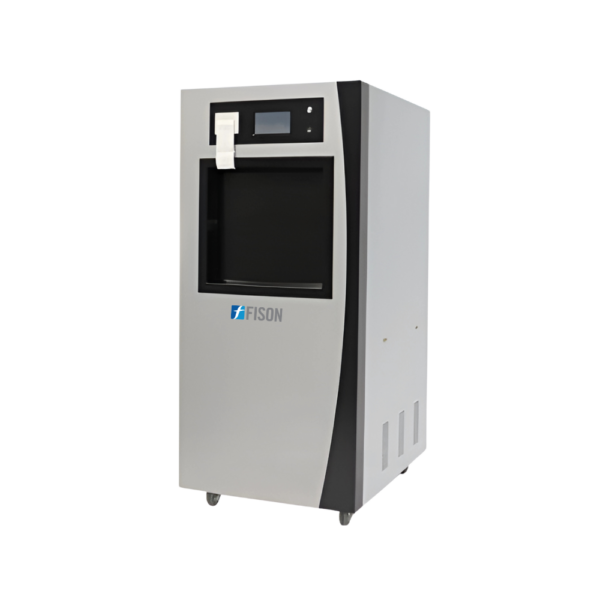

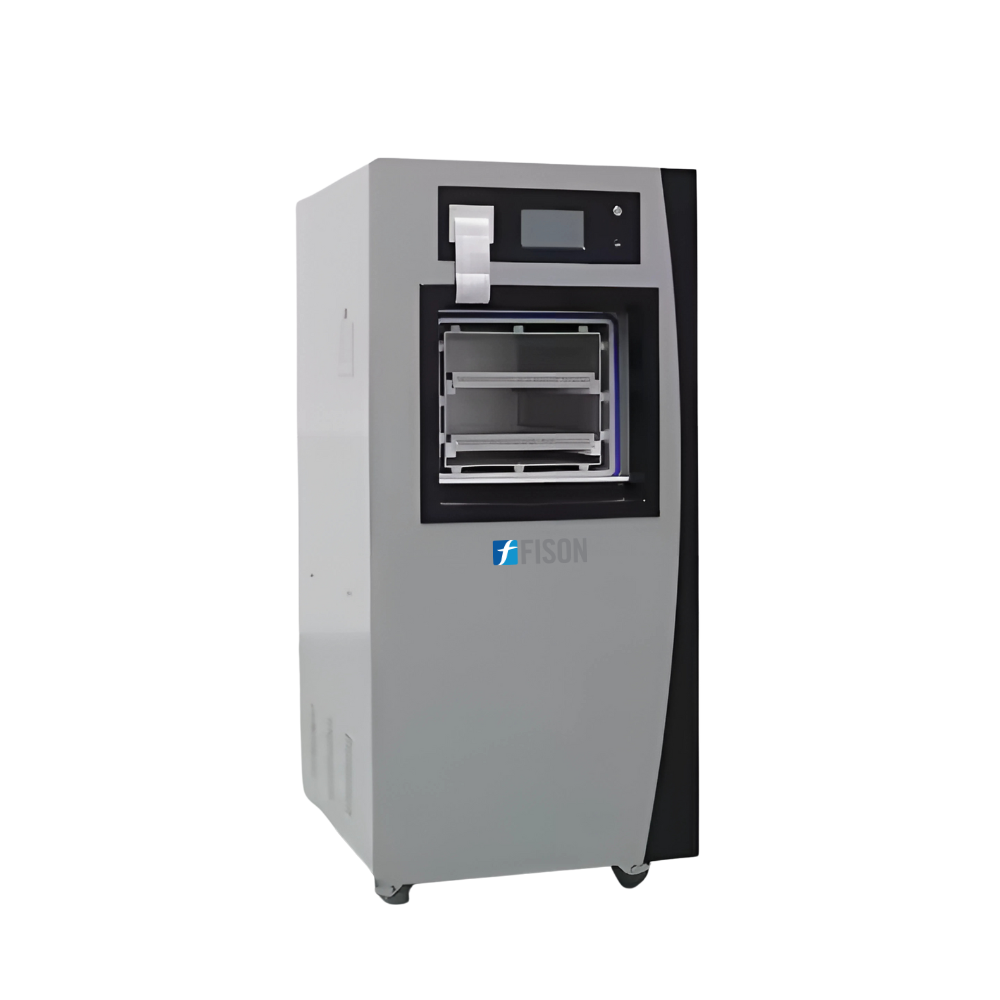

Hydrogen Peroxide Plasma Sterilizer FM-HPS-D100, 108 L capacity, optimizes sterilizer for compact and efficient performance. The seamless setup process ensures a hassle-free installation experience. They have consistent sterilization results and reliable performance with every cycle. Our sterilizer has convenient workflow integration that enhances productivity for medical, laboratory, and industrial applications.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Hydrogen Peroxide Plasma Sterilizer FM-HPS-D100 offers advanced sterilization for medical equipment using eco-friendly plasma technology and thorough disinfection with minimal residue. It enhances hygiene standards and supports efficient workflows.
| Capacity | 108 L |
| Sterilizing Temperature | 50℃ ± 5℃ |
| Thickness | ≥ 8 mm |
| Air Filter | ≤ 0.2 µm |
| Temperature Sensor | 50℃ ± 3℃ |
| H2O2 Install Environment | 5 to 45℃ |
| H2O2 Filling Method | Capsule |
| Sterilizing Time | 30 to 60 minutes |
| Sterilization Effect | 2 to 4 meters |
| Sterilizing Agent | 60 % Hydrogen Peroxide Solution (H2O2) |
| Main Insulation | ≥ 20 mm |
| Program System | Two cycles: Strengthened (≤ 60 min) and Fast (≤ 30 min) |
| Operation Height | ≤ 160 cm |
| Working Pressure | 50 Pa |
| Highest Anti-Pressure Value | 10 Pa |
| Vacuum Speed | 50 Pa in 5 minutes |
| Chamber Heating Power | 2.75 kW,≤ 30 minutes |
| Power Supply | AC 220 V, 50 Hz |
| Plasma Power Consumption | ≤ 500 W |
| Power Consumption | 3.4 kW |
| Inner Dimension (L × W × H) | 700 × 430 × 360 mm |
| Packing Dimension (L × W × H) | 1270 × 910 × 1880 mm |
| Weight | 308 kg |
