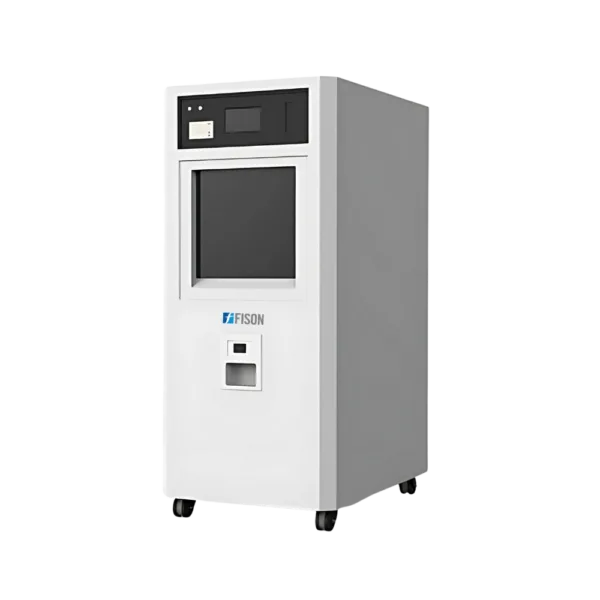

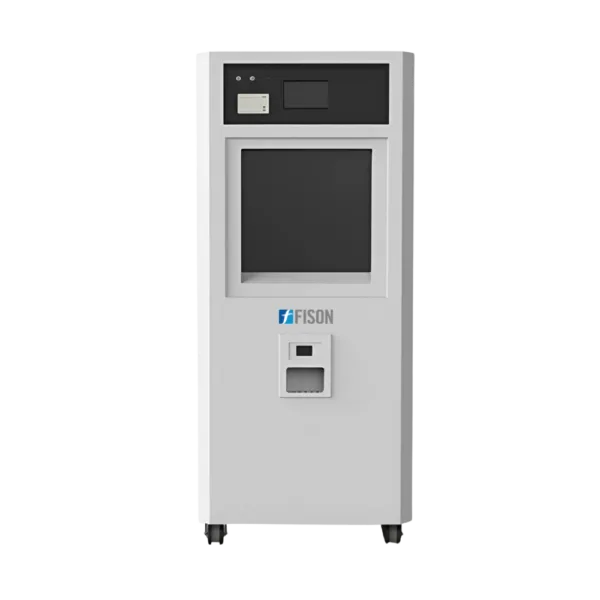

Hydrogen Peroxide Plasma Sterilizer FM-HPS-B103 a 160 L is a next-generation plasma sterilization unit for the safe sterilization of medical instruments. It features a fast plasma sterilization process that ensures quick response times. The low-heat sterilization unit makes it ideal for heat-sensitive medical devices, preserving their integrity during sterilization. Our sterilizer is used for facilities with space constraints, balancing performance and convenience.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Hydrogen Peroxide Plasma Sterilizer FM-HPS-B103 effectively sterilizes medical instruments and sensitive devices at low temperatures using H2O2 gas. It offers a safe and efficient solution for hospitals, laboratories, and healthcare settings and ensures thorough disinfection.
| Volume | 160 L |
| Sterilization Temperature | 50℃ ± 5℃ |
| Filling Method | Cassette: 12 vials of H2O2 / Cassette |
| Type | Fully Automatic |
| Sterilization Agent | 60 % Hydrogen Peroxide |
| Sterilization Cycle | Fast Sterilization≤ 25 min Standard Sterilization≤ 35min Enhanced Sterilization≤ 55min |
| Biological Indicator Cultivator | ≤± 0.3℃ Temperature Control Accuracy |
| Master Controller | PLC Control |
| Vacuum Pump System | 16 m³/h High-Vacuum H2O2 Resistant Pump |
| Test Methods | Biological Monitoring of Bacillus subtilis and Bacillus stearothermophilus |
| Power Supply | 110/220 V, 50/60 Hz |
| Inner Dimension (L × W × H) | 760 × 460 × 460 mm |
| Outer Dimension (L × W × H) | 950 × 780 × 1670 mm |
| Weight | 289 kg |
