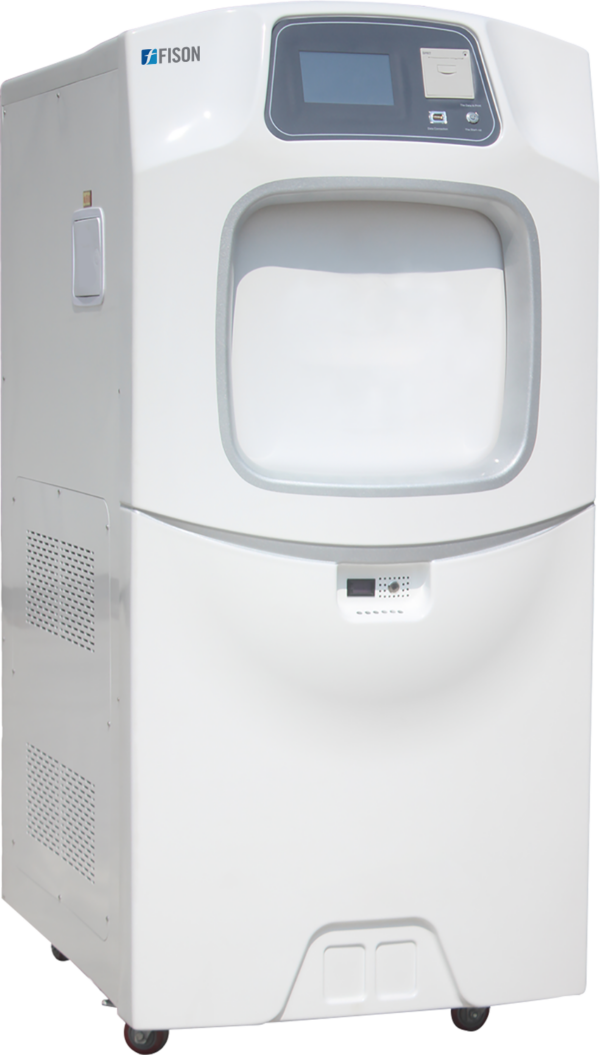

Hydrogen Peroxide Plasma Sterilizer FM-HPS-A100 is a low temperature PLC control system based autoclave with the sterilization capacity of 100 L. This fully automatic unit features 50°C sterilizing temperature, 50 Pa hydraulic pressure and 45 to 50 min sterilization time. It uses hydrogen peroxide solution as a sterilizing agent which does not leave any residue of toxic substances after sterilization. Unit comes with high grade durable 5052 Aluminum material and equipped with color LCD touch screen panel to monitor operation steps with running state and an alarm system to indicate low and high temperature.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used in the hospitals, pharmaceutical industries, laboratories and research institutes to sterilize probes, rigid endoscope, hose endoscope, ophthalmic lens, fiber optic cables, intracranial pressure sensor, esophageal dilator, electrocautery apparatus, defibrillation electrode, laser head, metal, glass, silica gel rubber etc.
| Cabinet type | Vertical (Full automatic) |
| Capacity | 100 L |
| Design | Single door rectangular autoclave |
| Category | Class B |
| Working pressure | 50 Pa |
| Ambient temperature | 5°C – 45°C |
| Workingtemperature | 50°C |
| Temperature accuracy | ±5°C |
| Sterilizing agent | 60% Hydrogen peroxide solution (H2O2) |
| Filter accuracy | ≤ 0.2 µm |
| Display | LCD touch screen |
| Chamber construction material | 5052 Aluminum |
| Chamber tray | Two-layer aluminum alloy plate |
| Sterilization period | 45 – 50 min |
| Caster | Yes |
| Power | 3.95 kW |
| Voltage | AC 220 V / 110 V, 50 Hz |
| Inner tank dimension (W × D × H) | 700 x 430 x 360 mm |
| Outer tank dimension (W × D × H) | 1070 x 810 x 1780 mm |
| Packaging dimension (W × D × H) | 1220 x 920 x 1860 mm |
| Net weight | 239 kg |
| Gross weight | 290 kg |
