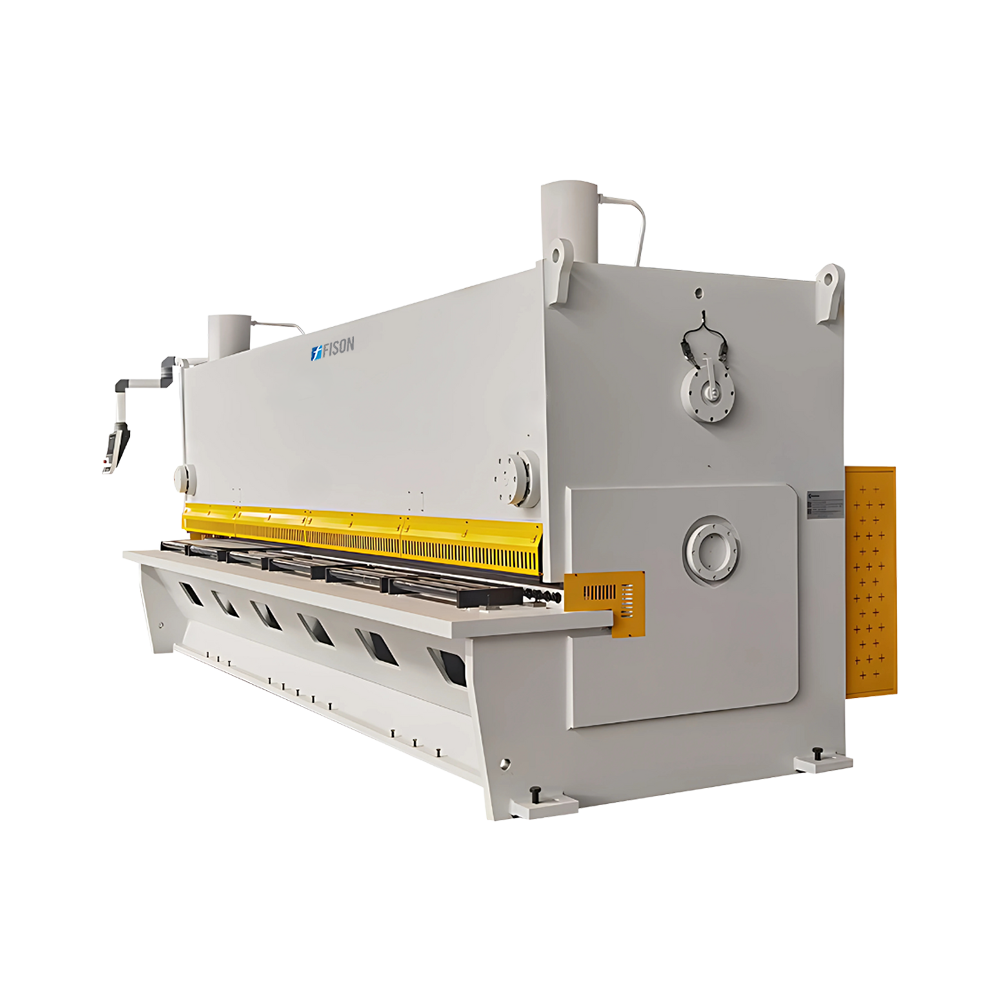

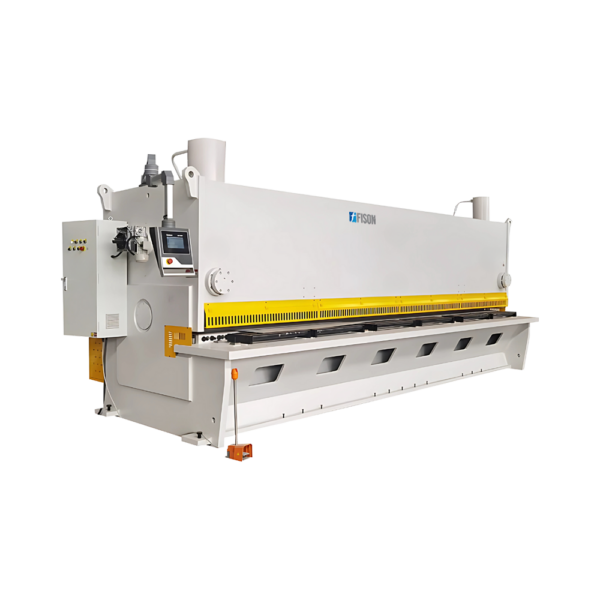

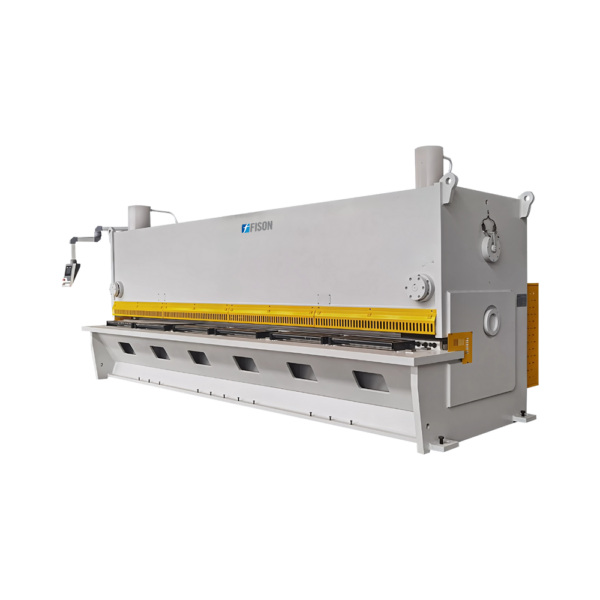

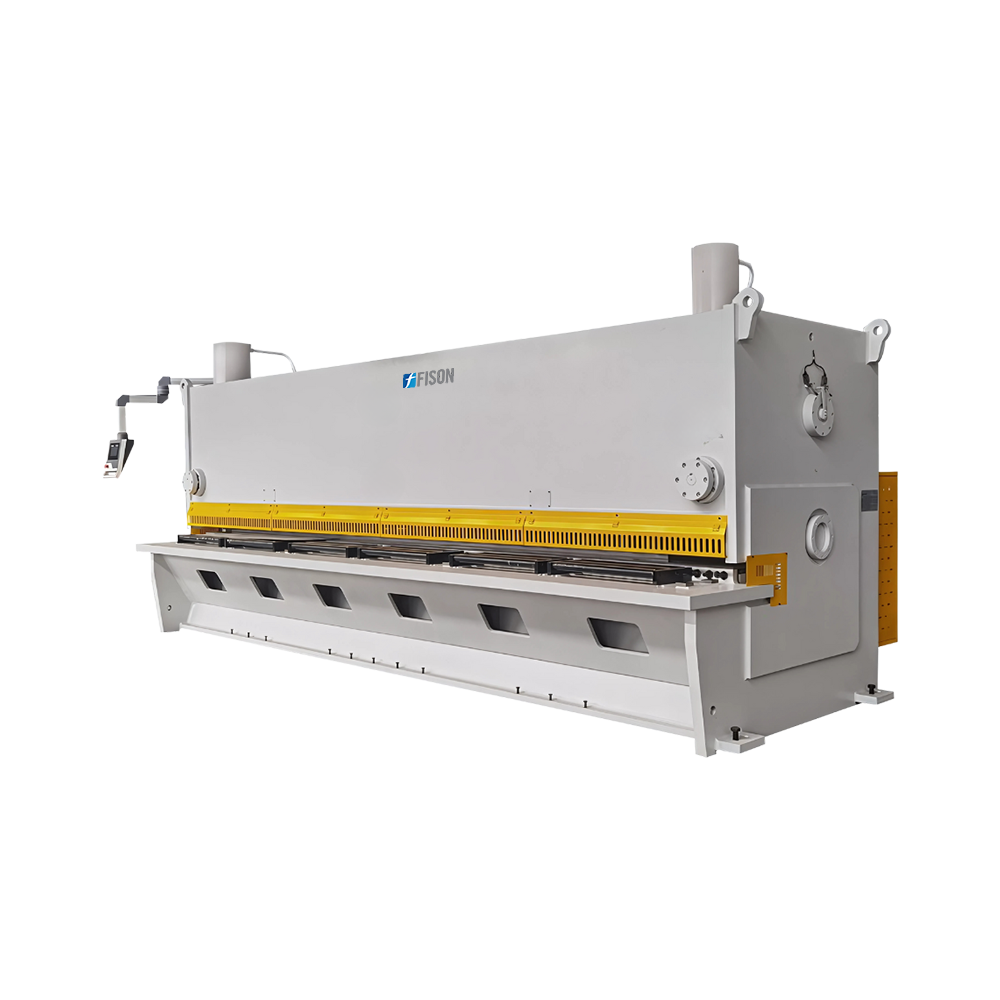

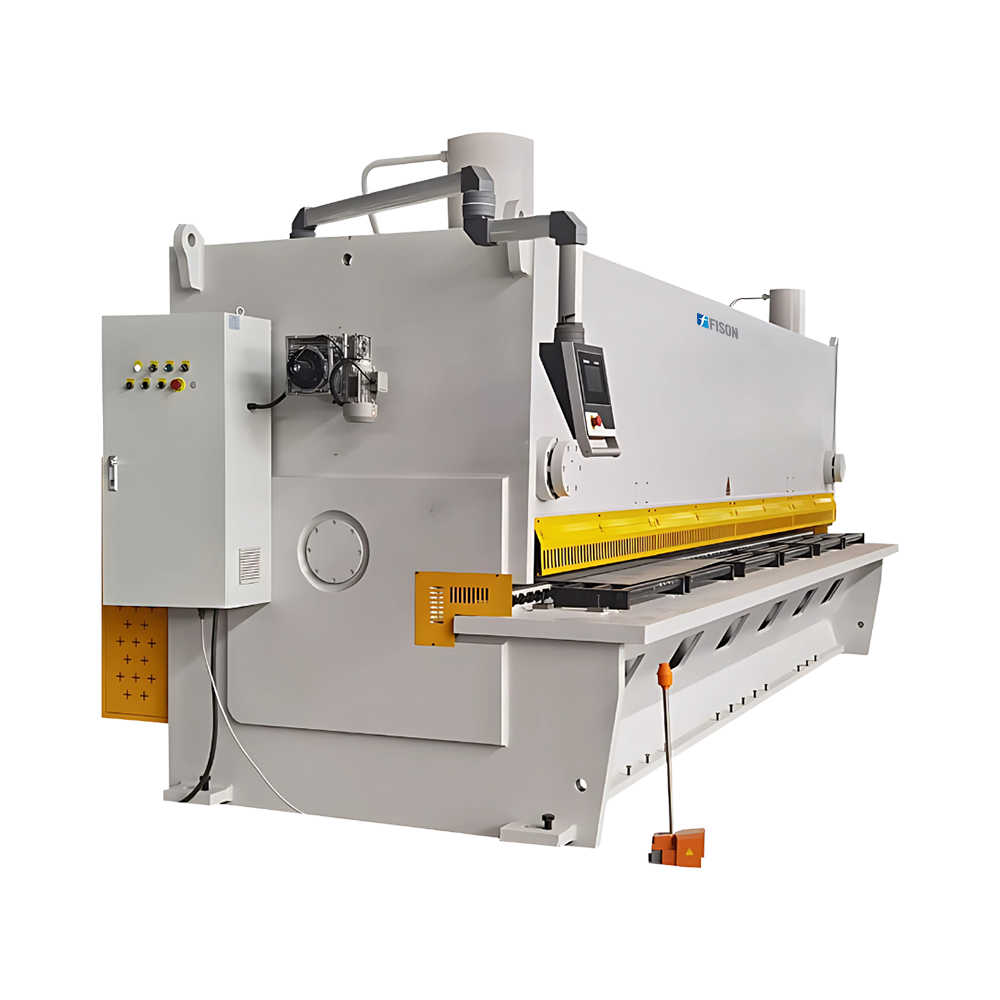

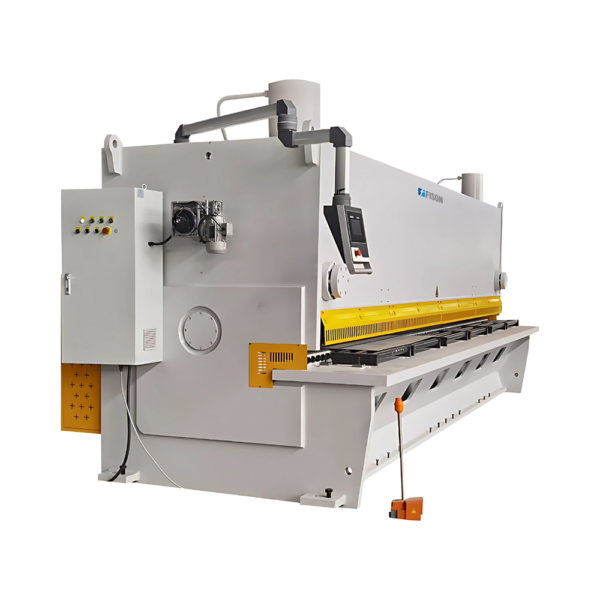

Hydraulic Shearing Machine FM-HSM-A100 delivers a maximum shearing thickness of 6 mm, ensuring precise and efficient metal cutting. It features a steel-welded frame for high structural stability. This unit is equipped with a high-quality hydraulic system for smooth operation. It offers digital control system for precise back gauge positioning. It provides an adjustable blade gap and shearing angle, allowing flexibility for various cutting applications.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Hydraulic Shearing Machine FM-HSM-A100 is crucial for precise metal cutting, offering high accuracy and reliability, making it ideal for industrial fabrication, metalworking, and sheet metal processing.
| Maximum Shearing Thickness | 6mm |
| Maximum Shearing Width | 6000mm |
| Shearing Angle | Adjustable |
| Throat Depth | 120mm |
| Strokes per Minute | 9 to 16 |
| Blade Material | 6CrW2Si, heat-treated |
| Blade Configuration | Top blade with four cutting edges; bottom blade with four cutting edges |
| Blade Gap Adjustment | Manual, via handwheel |
| Back gauge Range | 800mm |
| Cutting Material | Metal, Alloy metal, Aluminium, Stainless steel |
| Power Consumption | 7.5 KW |
| Dimensions | 4000 × 2100 × 2100 mm |
| Weight | 6410 kg |
