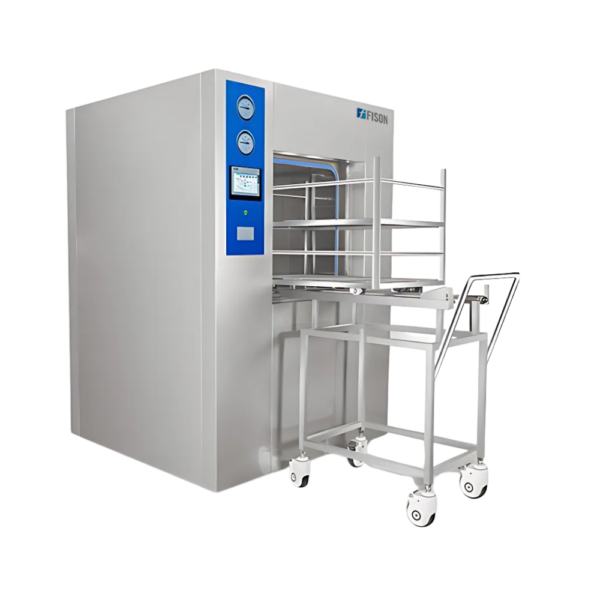

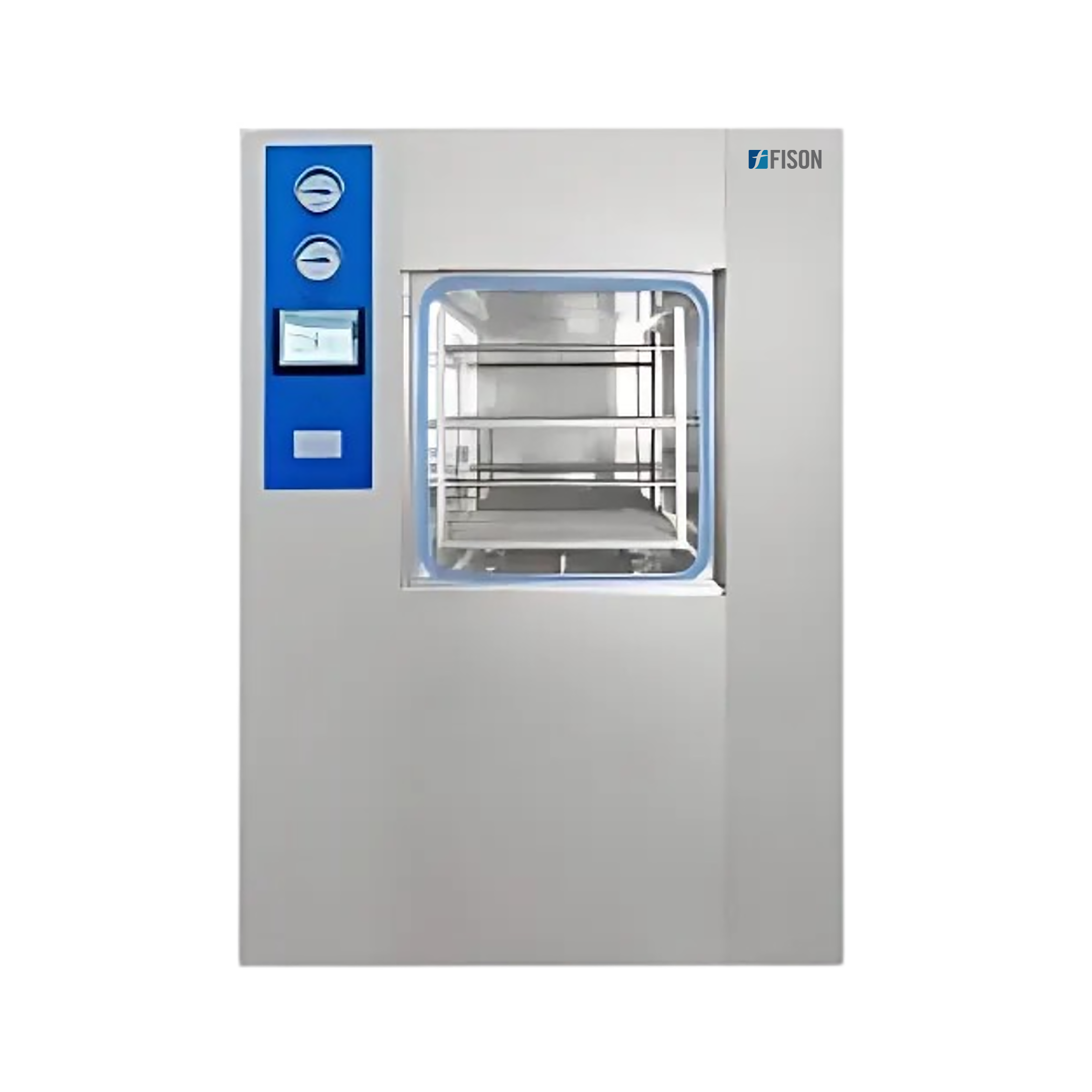

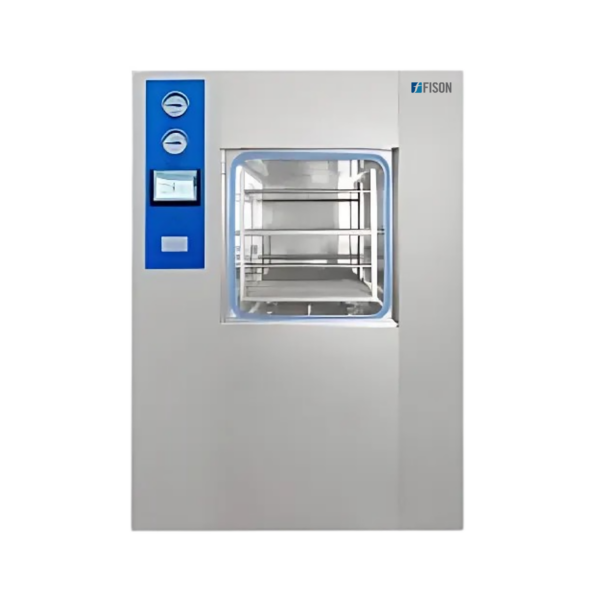

Horizontal Autoclave FM-HA-B102 with 500 L capacity and interior liner and door panels are made of s30408 stainless steel material. The double pulsation method ensures a more comprehensive removal of internal air during the sterilization process. Jacket is made of high-quality AISI 304 material specific for pressure. 7-inch color touch screen display for convenience of the user
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Horizontal Autoclave is widely used in hospitals, pharmaceutical factories, food industries, scientific research institutes and other units to sterilize and dry clothing, dressings, metal instruments, culture medium, etc.
| Capacity | 500 L |
| Operating temperature | 150 ℃ |
| Maximum working temperature | 139 ℃ |
| Working pressure range | 0 to 0.25 MPa |
| Temperature control accuracy | ≤ ± 0.2℃ |
| Temperature display accuracy | 0.1 ℃ |
| Temperature equilibrium | ≤ ± 0.5 ℃ |
| Opening pressure of inner chamber safety valve | 0.28 MPa |
| Pressure of water source | 0.15 to 0.3 MPa |
| Steam pressure | 0.3 to 0.6 MPa |
| Compressed air source | 0.4 MPa to 0.7 MPa |
| Times of positive pressure pulsation | 1 to 3 |
| Time of negative pressure pulsation vacuum | 1 to 99 times |
| Time of vacuum pulsation | 1 to 99 times |
| Ultimate vacuum | -97 KPa |
| Steam consumption | 22 Kg/C |
| Tap Water Consumption | 180 Kg/C |
| Power | 32 KW |
| Chamber dimensions (W × H × D) | 652 × 690 × 1100 mm |
| Overall dimensions (W × H × D) | 1350 × 1950 × 1350 mm |
| Weight | 950 kg |
