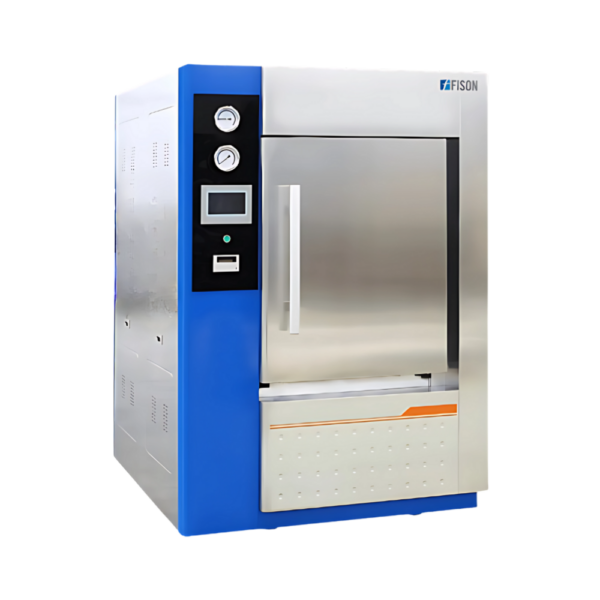

Horizontal Autoclave FM-HA-B100 is a floor standing pulse vacuum sterilization unit with 360 L capacity, 105 to 134°C working temperature range and 0.225 MPa working pressure. The best configuration sterilization piping system, pneumatic sealing double door structure and built-in steam generator ensures effective sterilization of articles kept in chamber. Double layer structure of chamber is made up of stainless steel S13603. It finds application in high temperature sterilization, and dry cooling process of sterile equipment, clothing, etc. across pharmaceutical, medical, scientific research industry.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
It finds application in high temperature sterilization, and dry cooling process of sterile equipment, clothing, etc. across pharmaceutical, medical, scientific research industries like biotechnology, microbiology etc.
| Capacity | 360 L |
| Working Temperature | 105 to 134°C |
| Working Pressure | 0.225 MPa |
| Steam Pressure | 0.3 to 0.7 MPa |
| Water source Pressure | 0.15 to 0.3 MPa |
| Steam consumption | 25 kg |
| Water source consumption | 40 kg |
| Vacuum | -0.09 MPa |
| Compressed Air Pressure | 0.3 – 0.7 MPa |
| Inner Chamber Dimension ( L × W × H ) | 1000 × 600 × 600 mm |
| Outer Dimension ( L × W × H ) | 1300 × 1350 × 1900 mm |
| Net Weight | 1000 kg |
| Power Steam generation power | 2+24 kW |
| Power supply | AC 380 V, 50 Hz |
