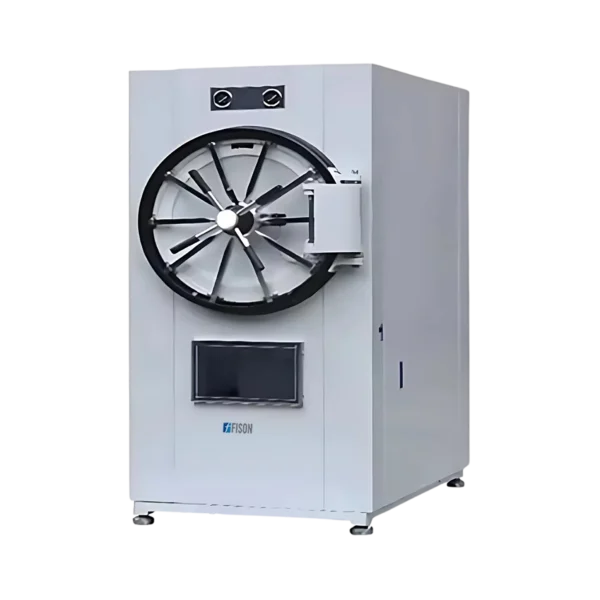

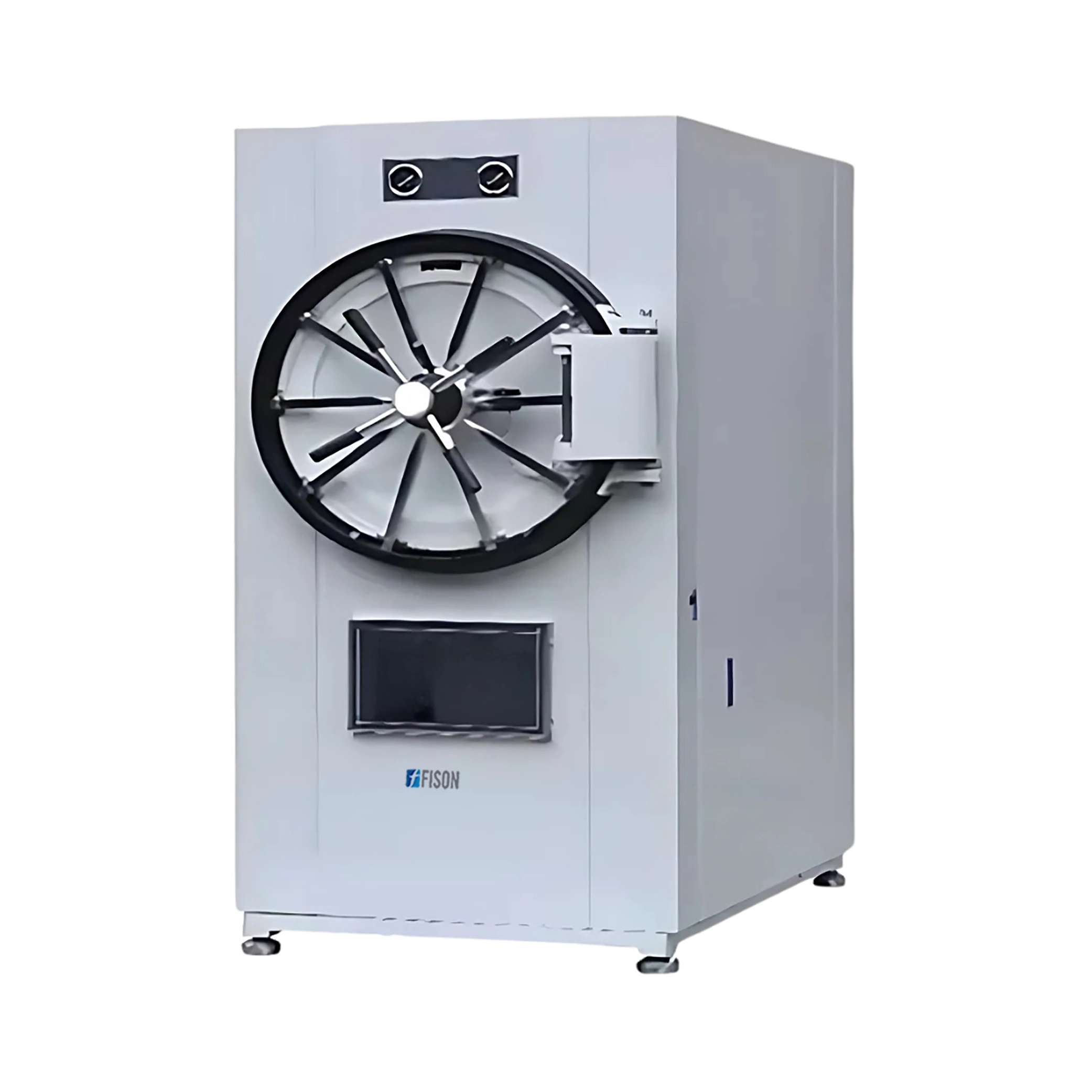

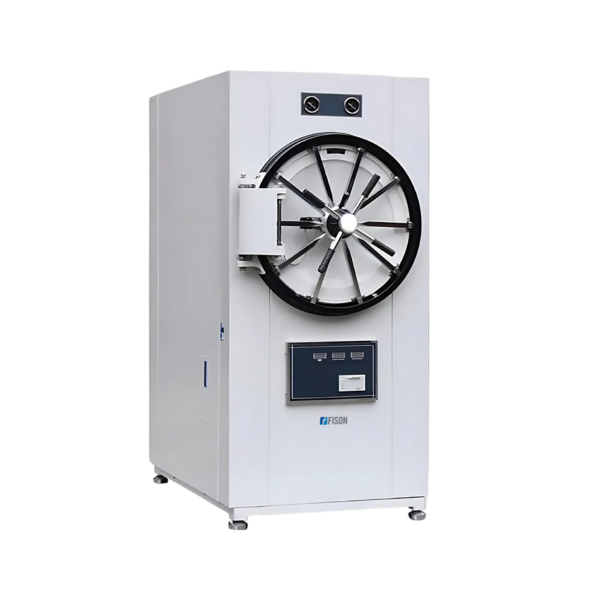

Horizontal Autoclave FM-HA-A201 is a microprocessor controlled automatic single door autoclave with a capacity of 200 L. The complete leak proof chamber provides efficient sterilization process resulting in destruction of all living organisms due to high pressure of 0.22 MPa and 134°C temperature. Unit is constructed with corrosion resistant stainless steel and equipped with many advanced safety features that enable users to achieve fast, reliable and reproducible sterilization.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
It is widely used in Research Centers, Major Universities, Pharma, Biotech, Medical research, and Hospitals. These autoclave are intensively used as medical hospital waste sterilizers due to its assured saturated steam deactivating viruses, bacteria, microorganisms under regulated temperature and pressure.
| Sterilizing&chamber&&volume | 200 L |
| Inner tank dimension | 515×1000 mm |
| Design | Single door rectangular autoclave |
| Working pressure | 0.22 MPa |
| Working&&temperature | 134℃ |
| Adjustment of temperature | 40 to 134℃ |
| Chamber construction | 304 grade stainless steel |
| Chamber tray | 1 perforated stainless steel tray |
| Sterilization period | 0 to 99 min |
| Time of drying | 0 to 99 min |
| Control Precision: Temperature | ≤ ±2℃ |
| Maximum power consumption | 9 kW |
| Power supply | 380V/50Hz |
| Dimension | 1400×750×1700 mm |
| Packaging dimension | 1560×910×1880 mm |
| Net weight | 350 kg |
| Gross weight | 436 kg |
