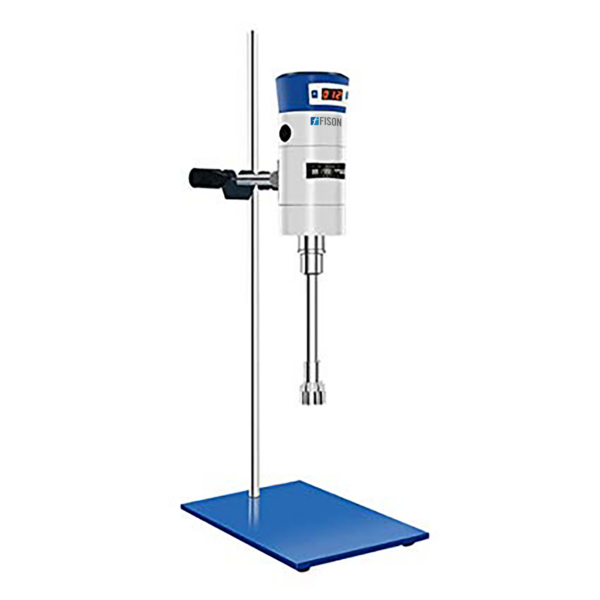

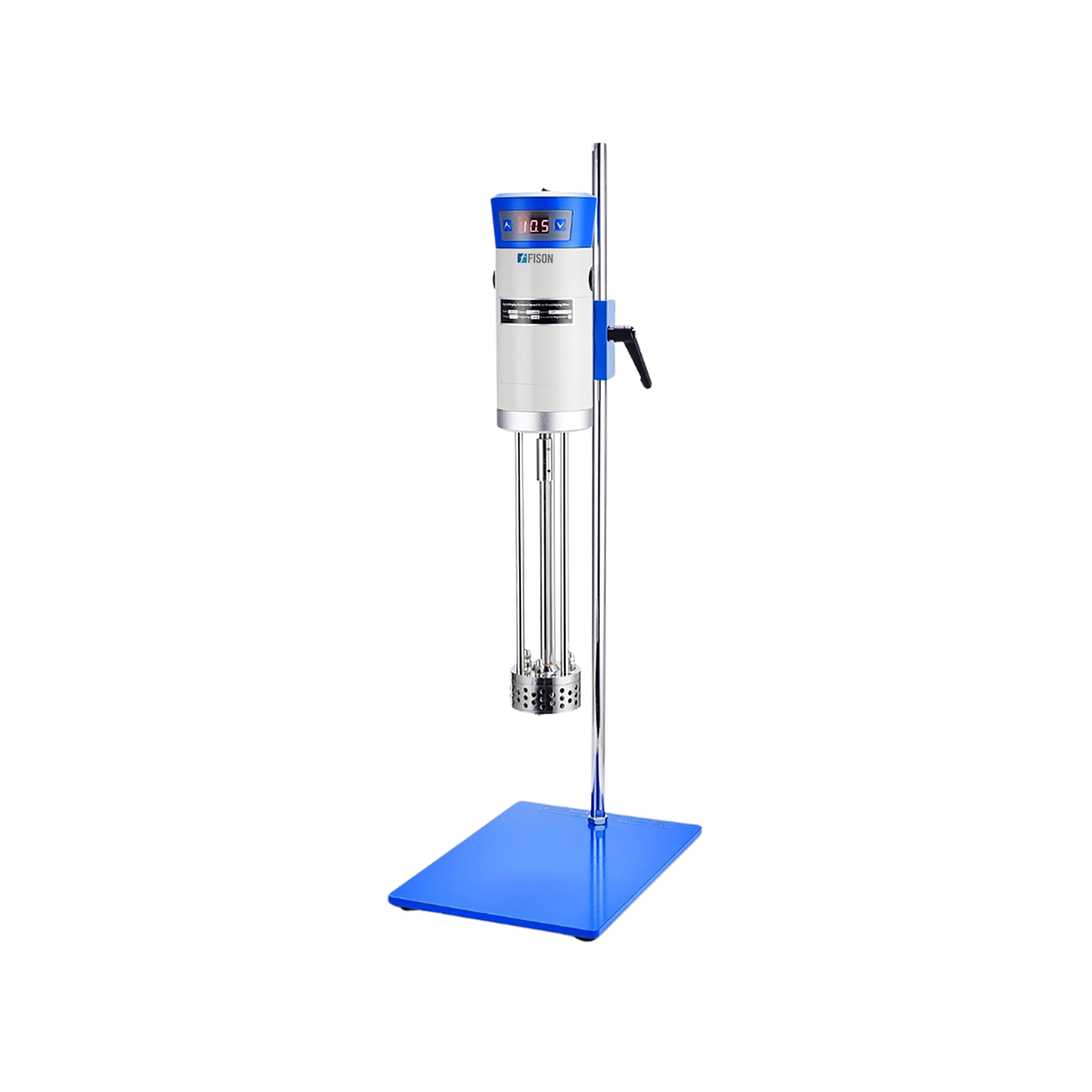

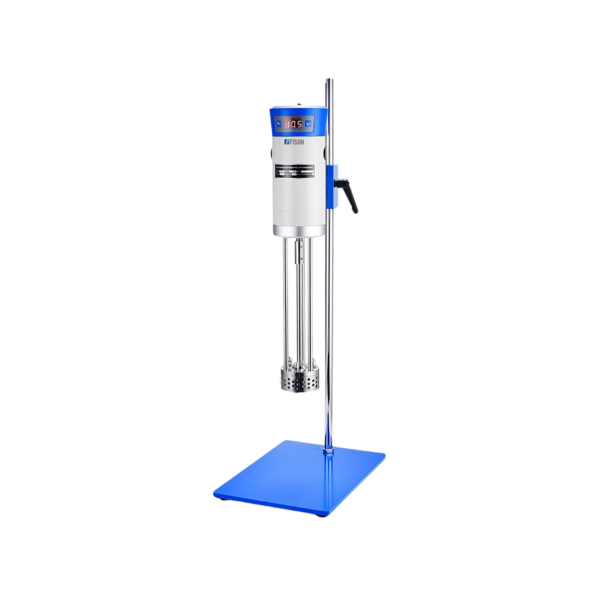

High Speed Dispersion Homogenizer FM-HDH-A101 offers adjustable speed range of 300 to 18000 rpm and 0.68 Nm torque. It is applicable for 100 to 13000 ml capacity of the sample liquid. Working head made of high quality stainless steel, corrosion resistant with the head diameter of 28 mm and 36 mm. It consist of drive motor with large output power, working head connected to drive motor by coupling and speed controller base that uses step less speed governor. Used in field of medicine, biochemistry, cosmetics, food and drinks. Also suitable in laboratory to further homogenize the pulverized experimental materials in the liquid medium.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used in field of medicine, biochemistry, cosmetics, food and drinks. Also suitable in laboratory to further homogenize the pulverized experimental materials in the liquid medium.
| Capacity | 100 to 13000 ml |
| Speed range | 300 to 18000 rpm |
| Working head diameter | 28 mm and 36 mm |
| Torque | 0.68 Nm |
| Input power | 510 W |
| Output power | 300 W |
| Working mode | Intermittent |
| Power supply | AC 220 V, 50 Hz |
| Exterior dimension | 250 × 350 × 600 mm |
| Net weight | 12 kg |
| Gross weight | 13 kg |
