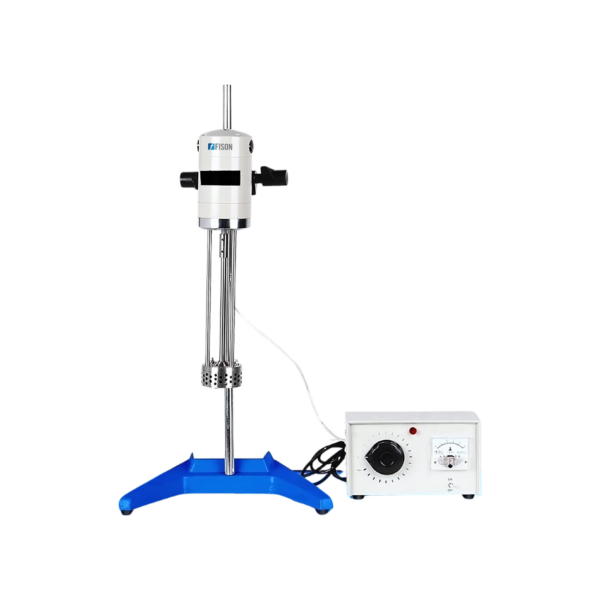

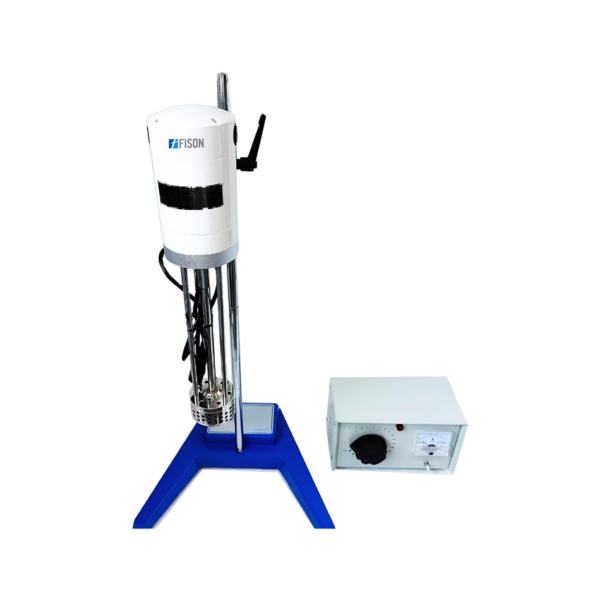

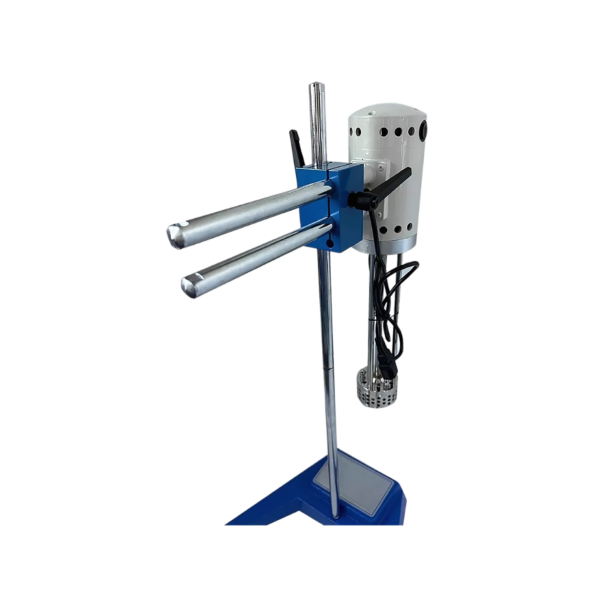

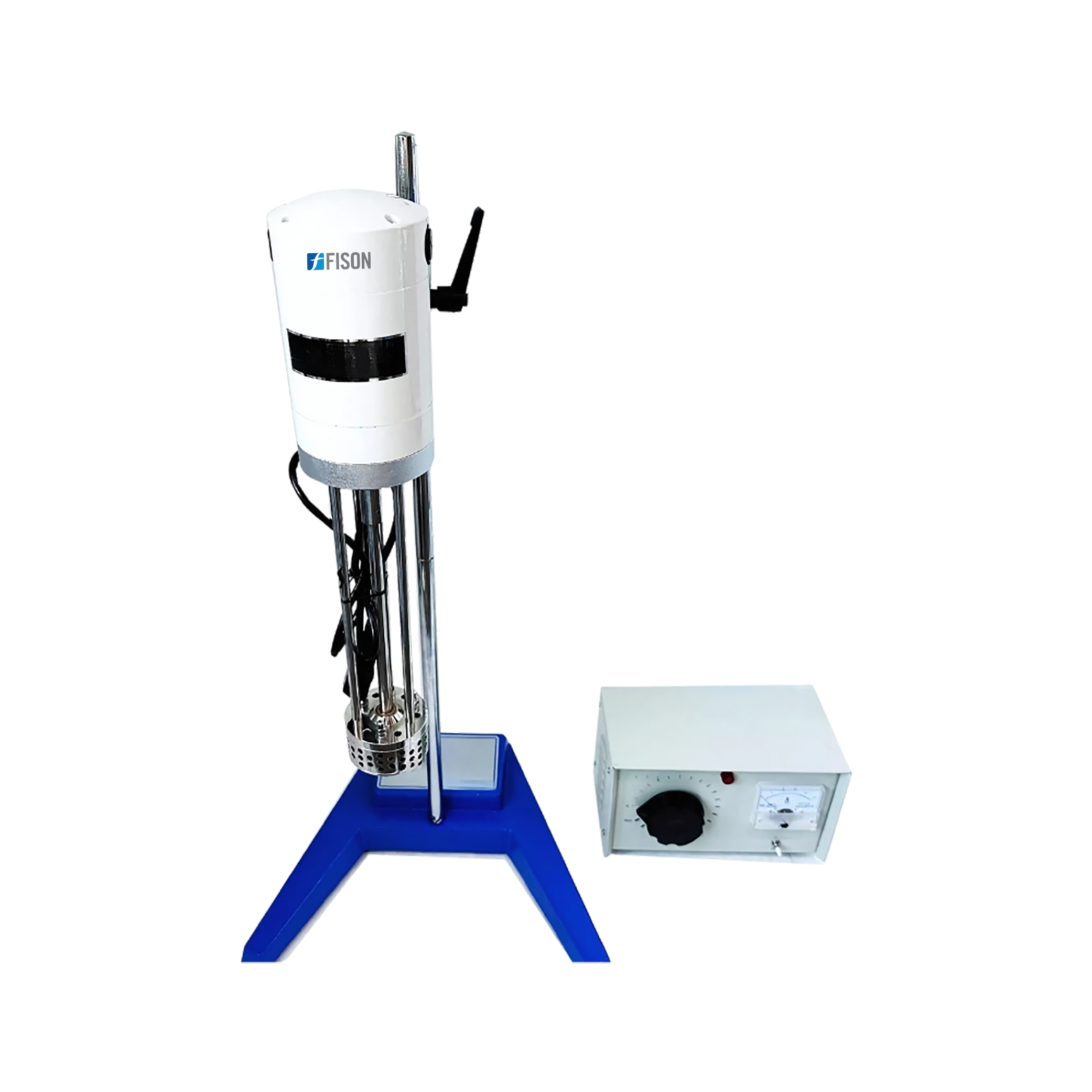

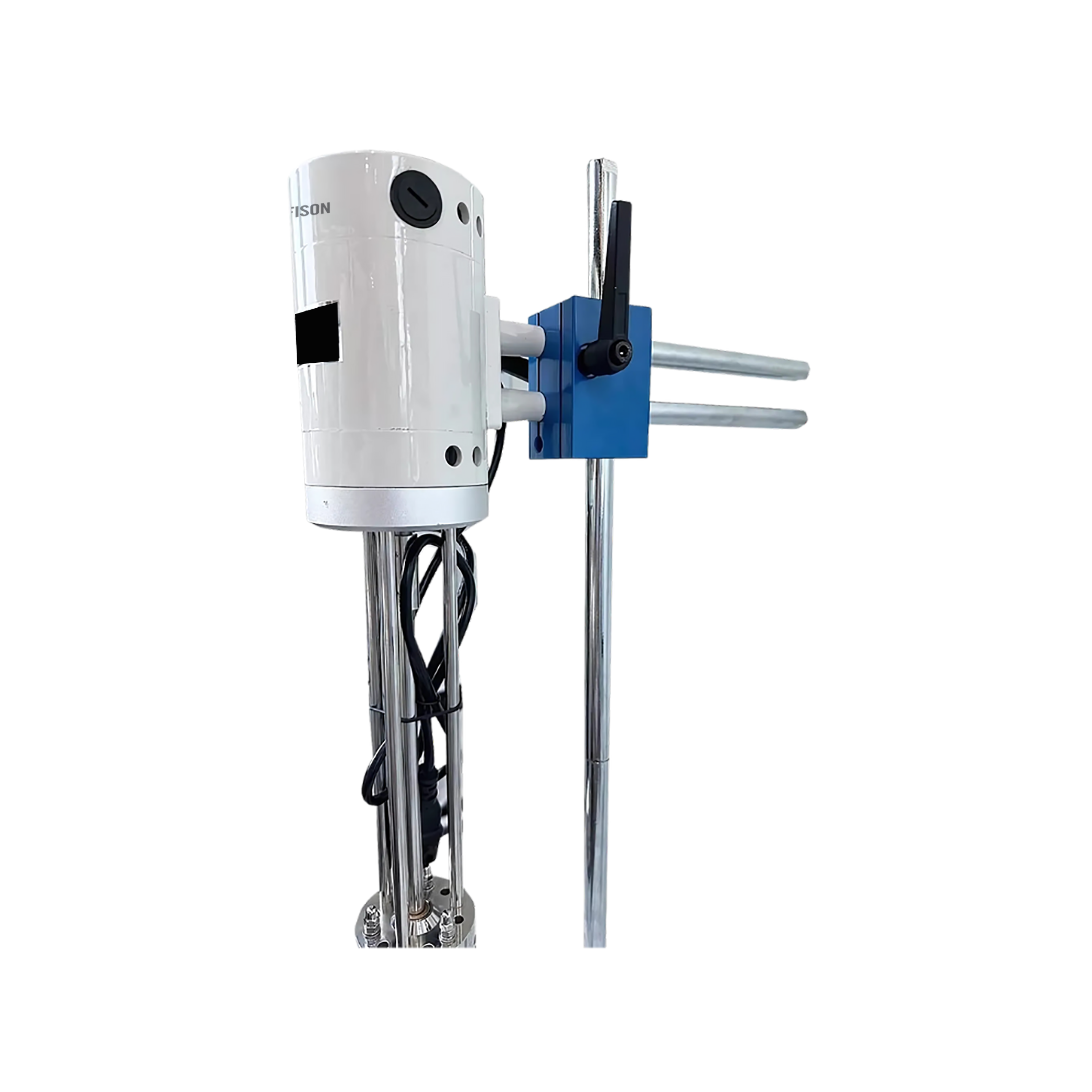

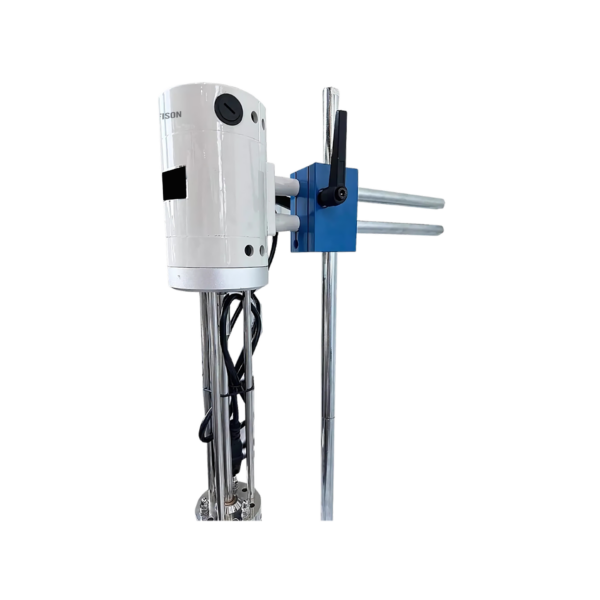

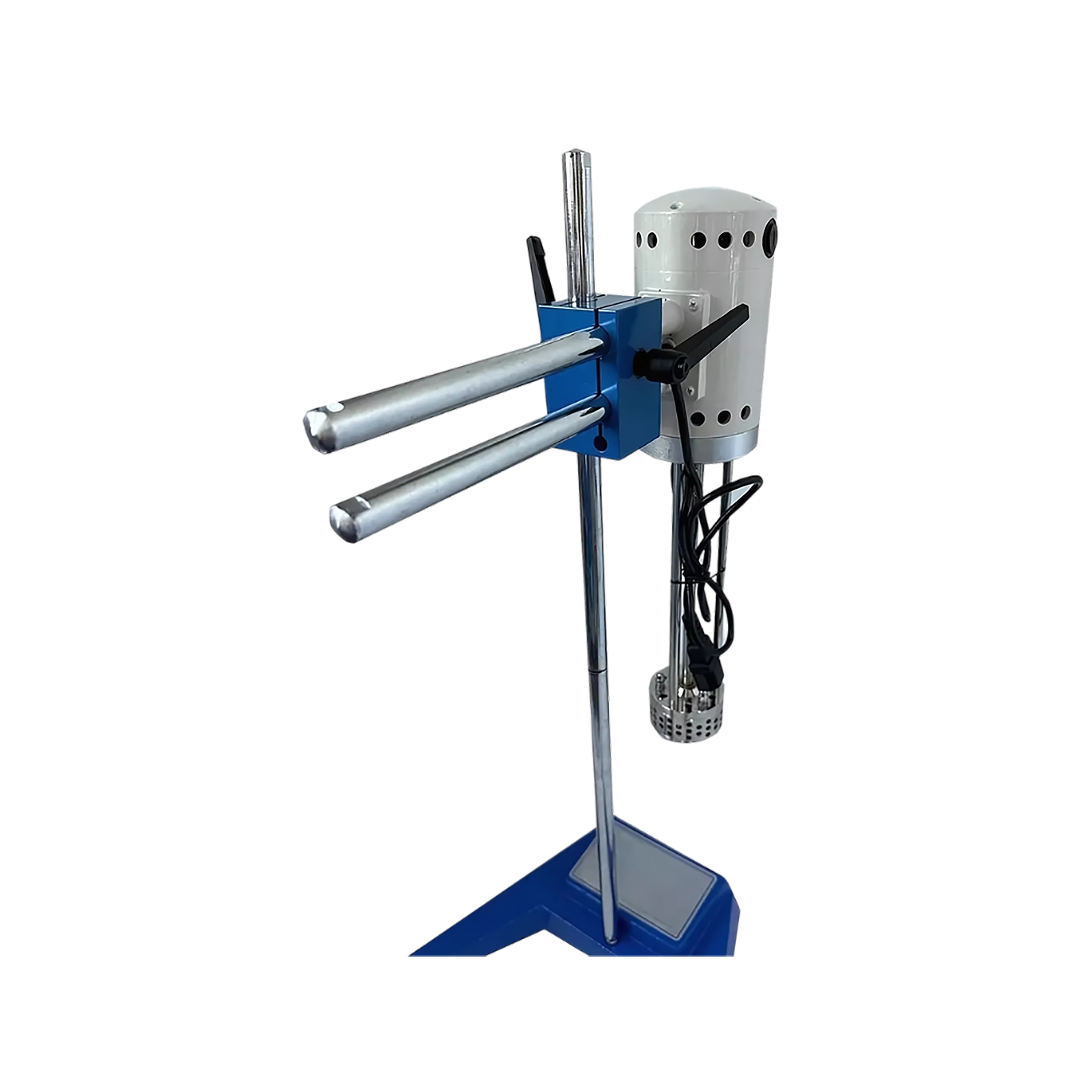

High shear emulsifying homogenizer FM-HEH-A100 offers adjustable speed range of 200 to 11000 rpm and 0.341 Nm torque. It is applicable for maximum 40 L capacity of the sample liquid. It consists of three parts: running state controller, drive motor and shear emulsification working head. Used in field of medicine, biochemistry, cosmetics, food and drinks for low, medium and high viscosity mixing.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used in field of medicine, biochemistry, cosmetics, food and drinks for low, medium and high viscocity mixing.
| Capacity | 40 L |
| Speed range | 200 to 11000 rpm |
| Max viscosity | 0 to 100000 mPas |
| Working head diameter | 70 mm |
| Torque | 0.341 Nm |
| Stator | 5 mm2, 20 mm2 and 50 mm2 |
| Input power | 510 W |
| Output power | 300 W |
| Power supply | AC 220 V, 50 Hz |
| Exterior dimension | 250 × 650 × 720 mm |
| Net weight | 17 kg |
| Gross weight | 18 kg |
