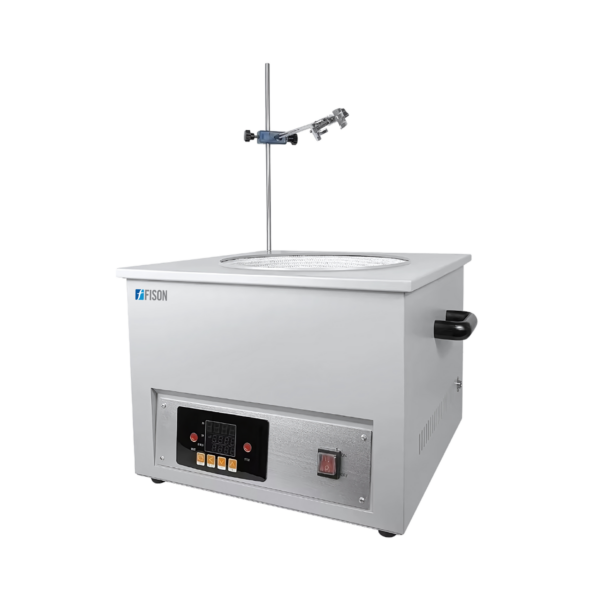

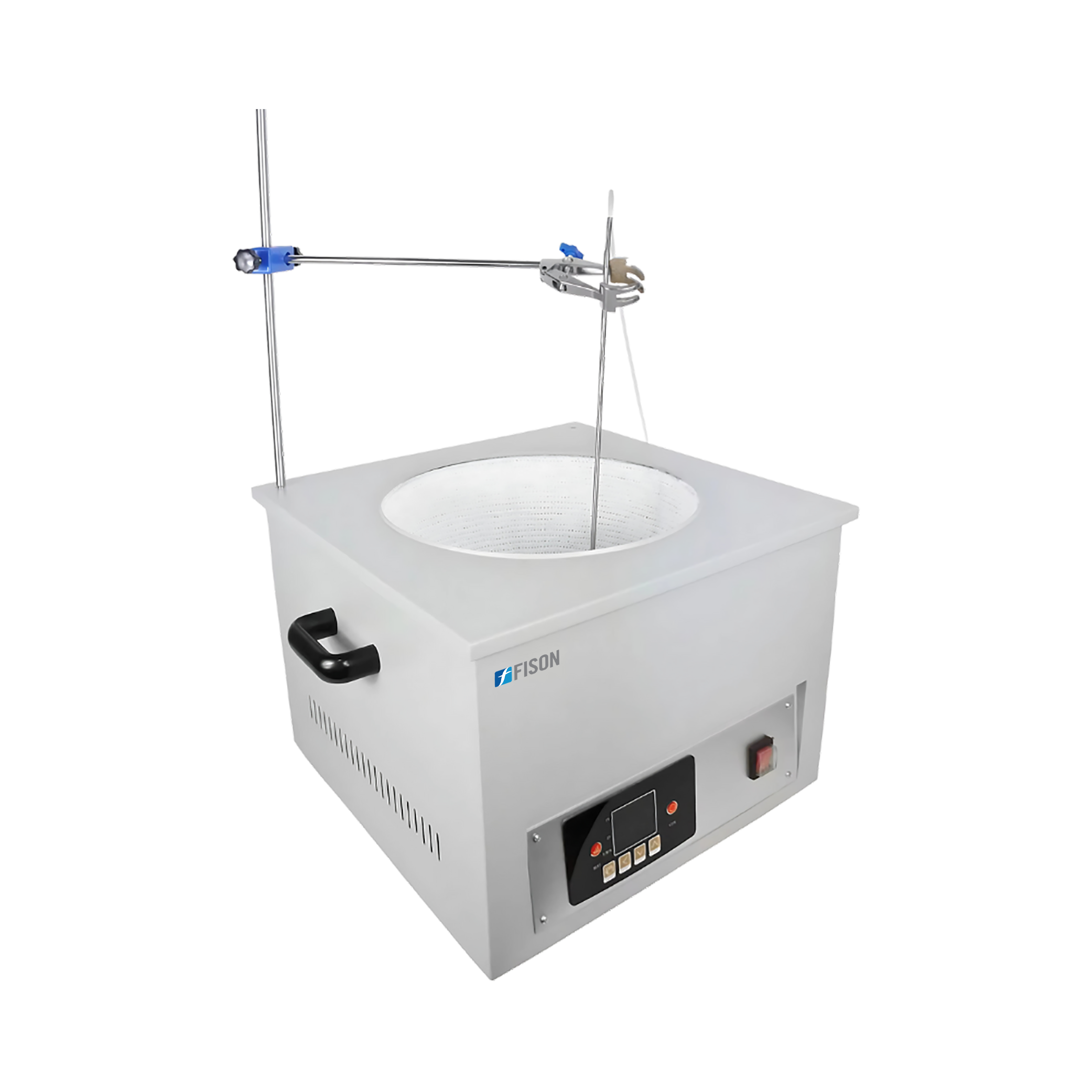

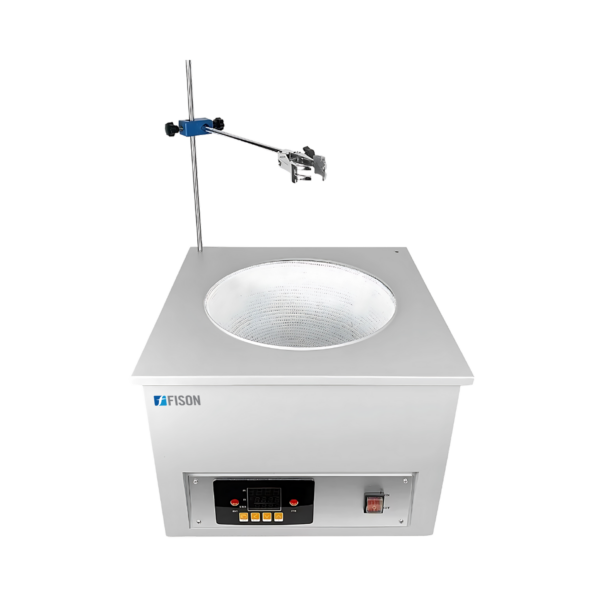

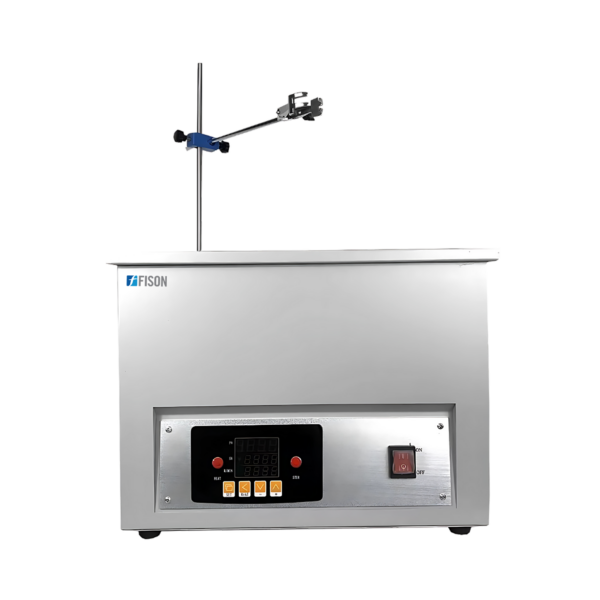

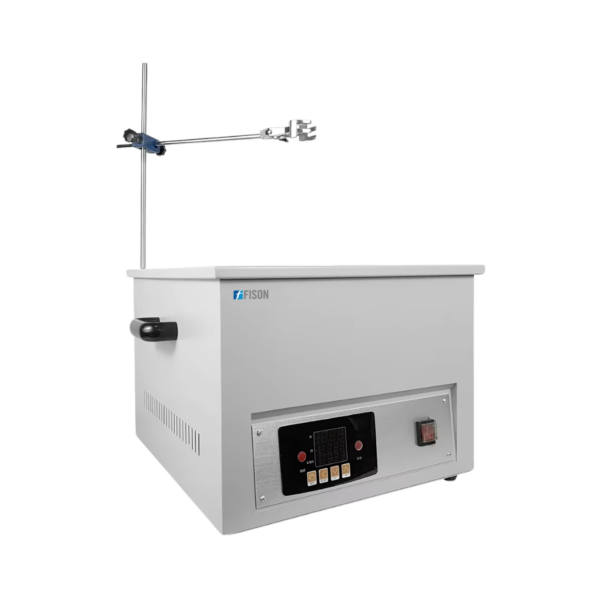

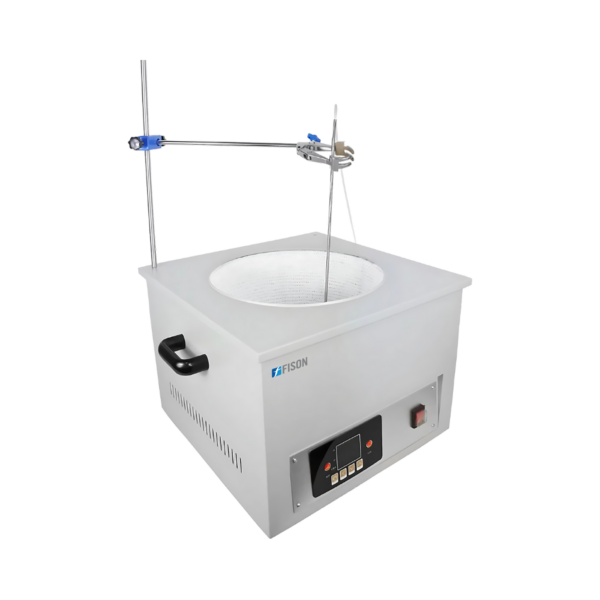

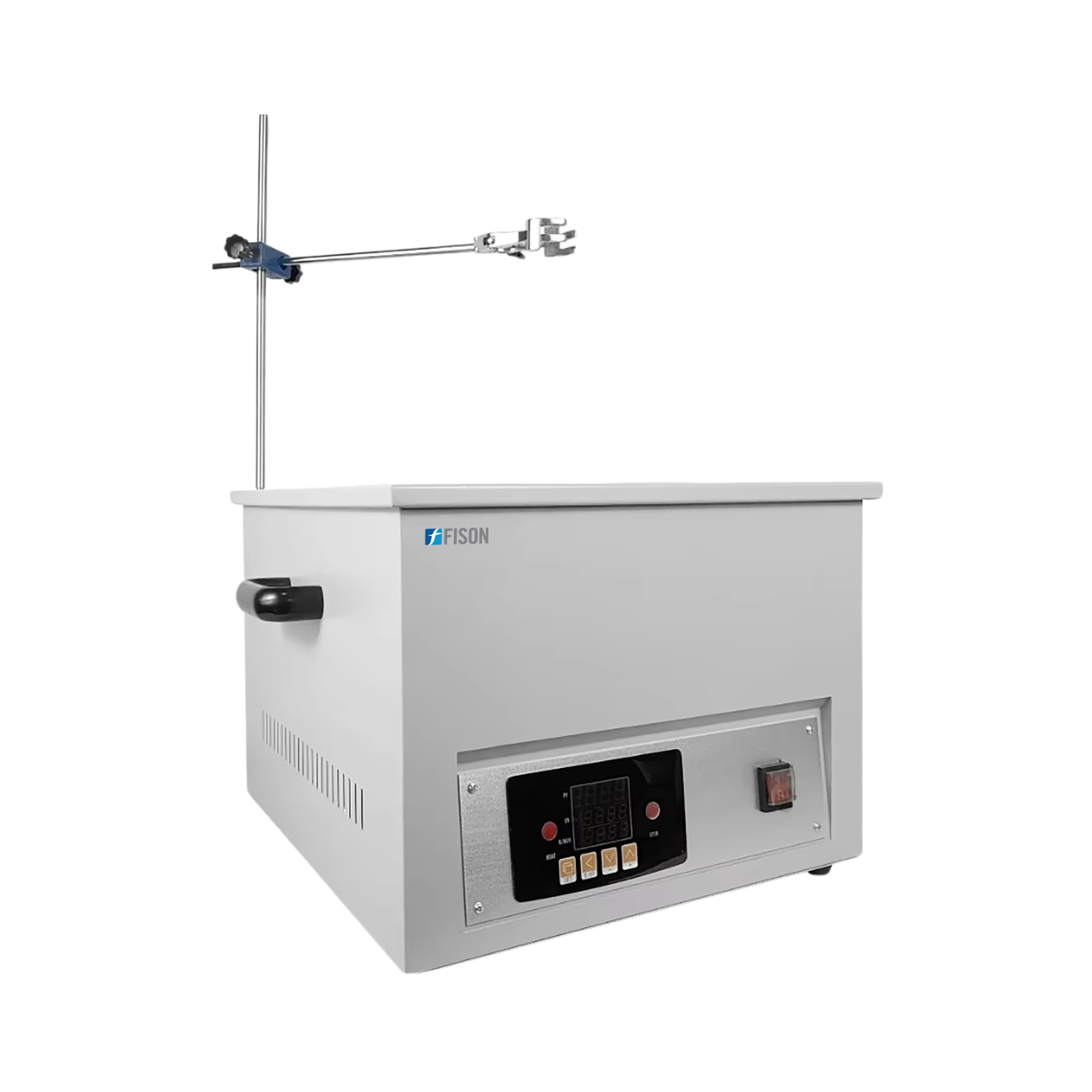

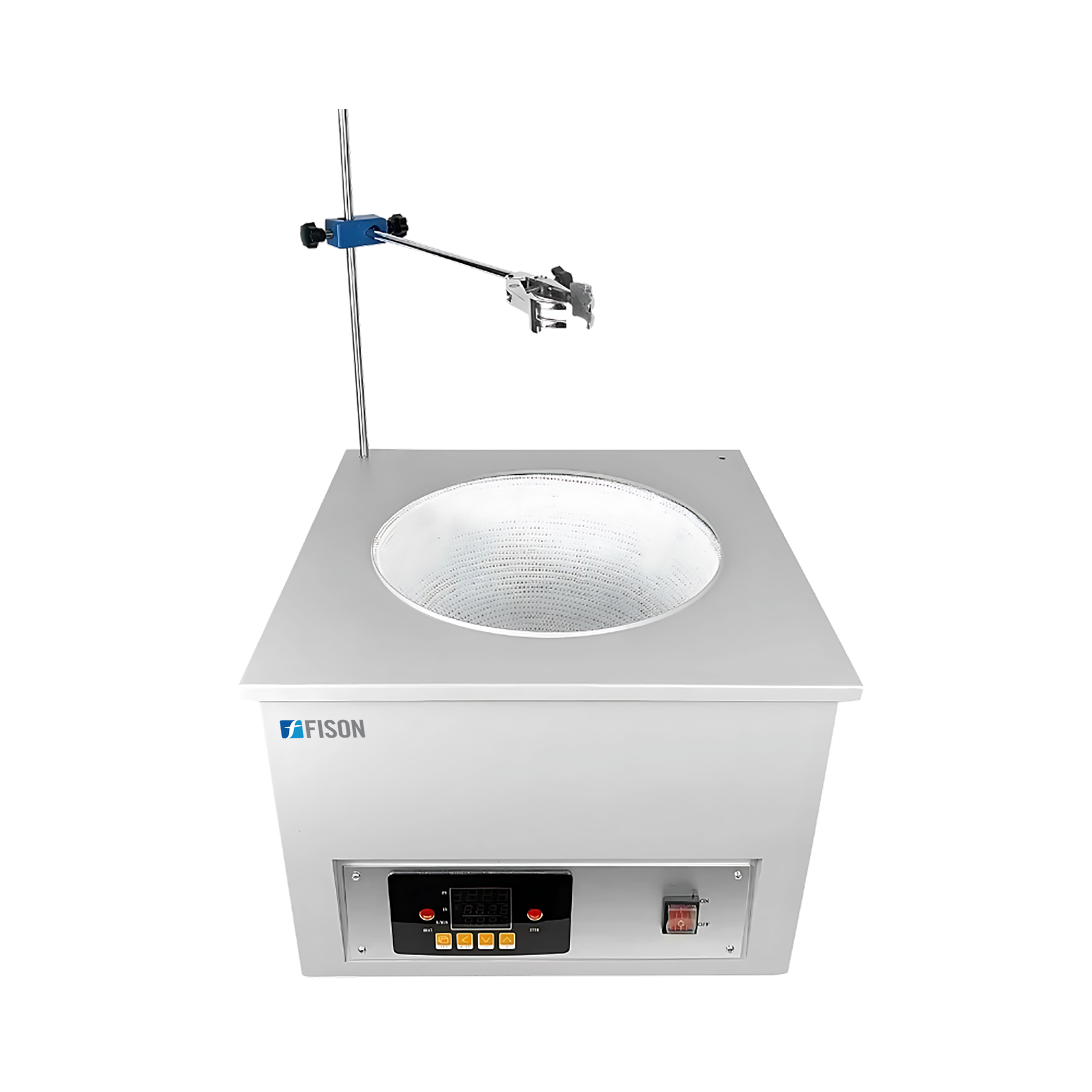

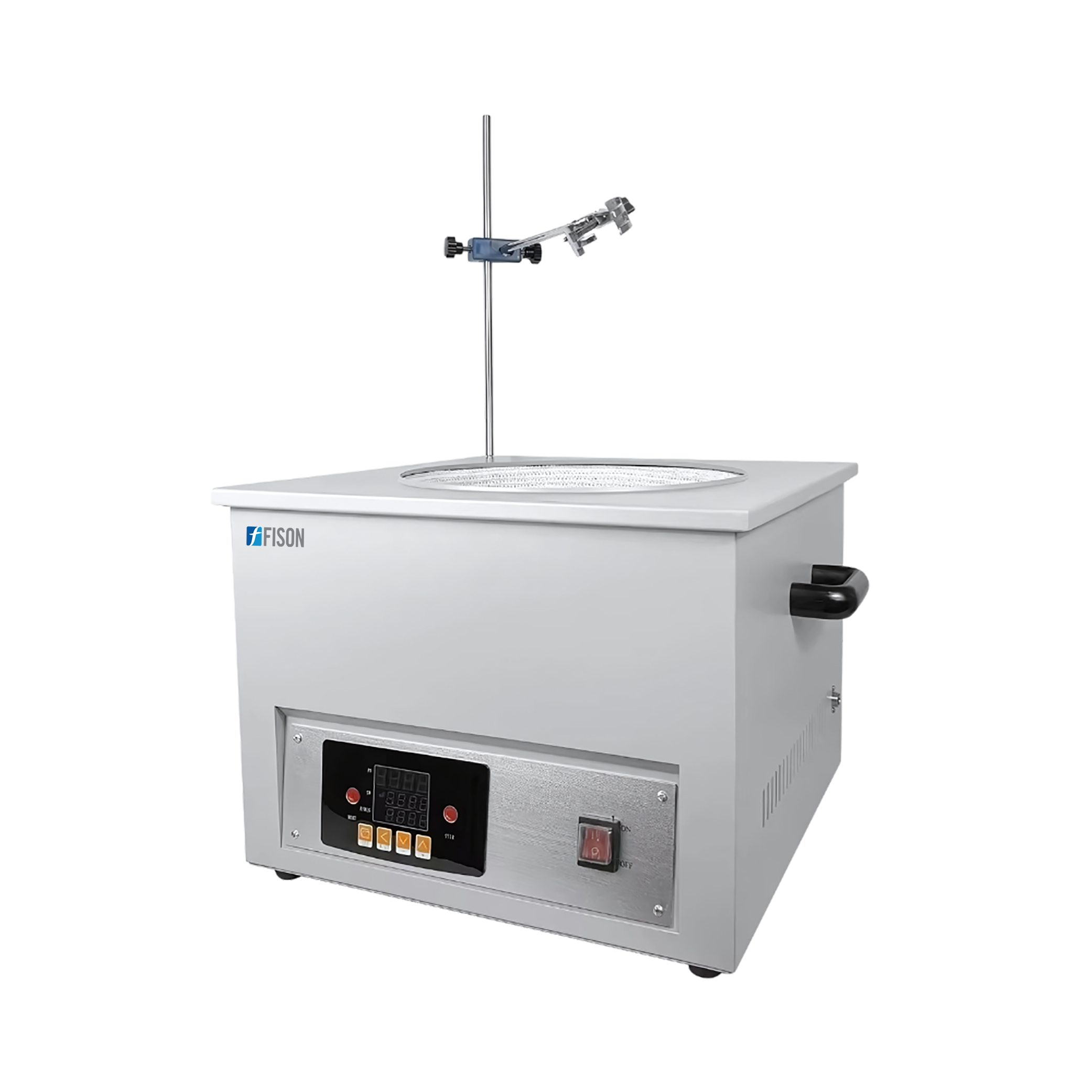

Heating Mantle with Magnetic Stirrer FM-DHM-B101 is a PID-controlled benchtop unit having a capacity of 20 L and a temperature range of ambient to 380°C. Its hemispherical insulation body is incorporated with a Cr20Ni80 alloy wire spring and aluminum silicate cotton. It has an in-built digital temperature display and different light indicators for power and heat. This heating mantle combines the traditional Electro-thermal heating element with controlled solid-state stirring.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Heating Mantle with Magnetic Stirrer is ideal for controlled heating and stirring of chemical solutions in laboratory experiments. It is widely used in chemical synthesis, extraction, distillation, and other research applications requiring uniform temperature distribution and consistent stirring.
| Capacity | 20 L |
| Temperature control | PID controlled system, inner and outer thermocouple |
| Temperature drift | ≤ 0.01% FS /°C (typical 50 PPM /°C) |
| Temperature response time | ≤ 0.3 sec |
| Thermocouple probe type | K type |
| Temperature range | Ambient to 380℃ |
| Temperature accuracy | ± 1°C |
| Maximum temperature resistance | 450°C |
| Ambient temperature | 0 to 50°C |
| Ambient humidity | ≤ 85% RH |
| Heat material | Alkali-free glass fiber |
| Shell material | Superfine metal, anti-aging, anti-corrosion, blue color or white color |
| Thermal Insulation | Glass fiber |
| Stir speed range | 100 to 1800 rpm |
| Stir speed display | ± 1 rpm |
| Stir motor | 40 W, DC 20. Brushless motor |
| Stir Response time | ≤ 1.5 sec |
| Electromagnetic compatibility (EMC) | ± 4 kV / 5 kHz according to IEC61000-4-4; 4 kV according to IEC61000-4.5 |
| Working environment | Without corrosion and strong electric radiation |
| Working time | More than 8 hours, Continuous |
| Heating Power | 3000 W |
| Machine power | 3040 W |
| Power Supply | AC 220 V, 50 Hz or AC 240V, 60 Hz |
| Upper Diameter | 345 mm |
| Dimensions (W × D × H) | 440 x 550 x 300 mm |
| Packaging dimensions (W × D × H) | 640 x 580 x 360 mm |
| Net weight | 20.1 kg |
| Gross weight | 23 kg |
