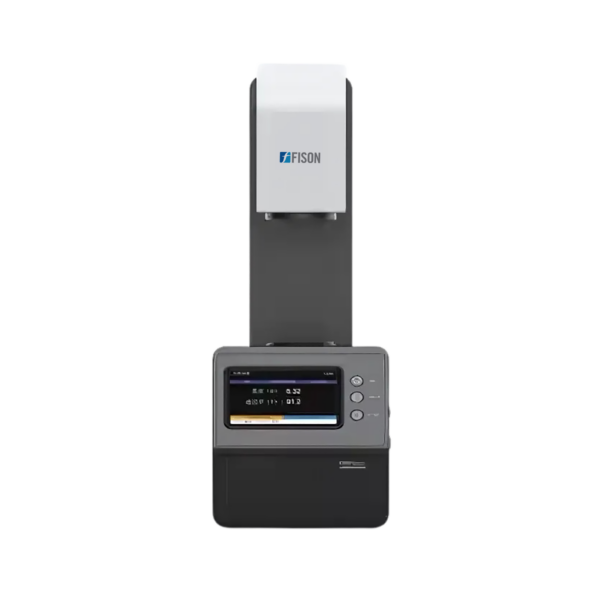

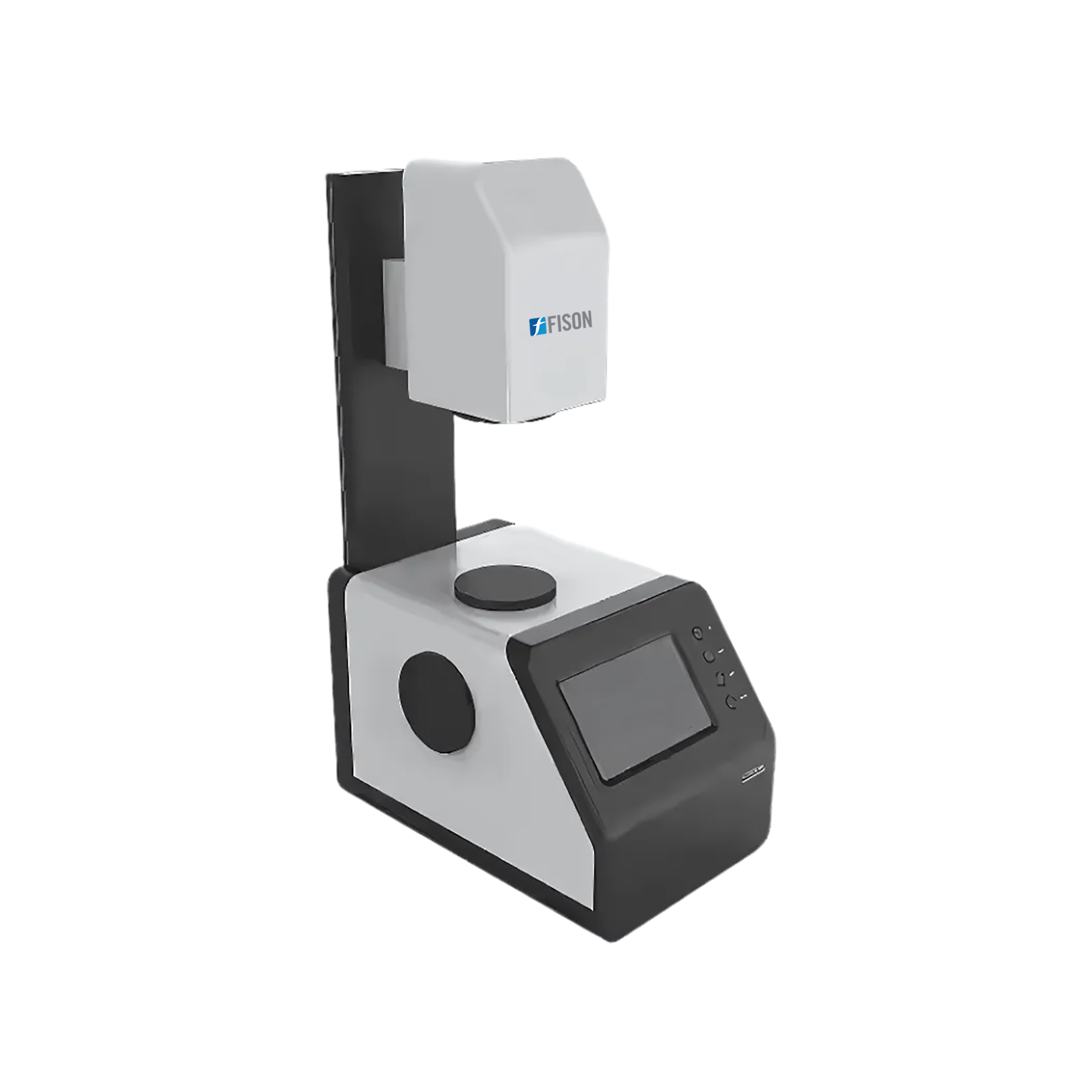

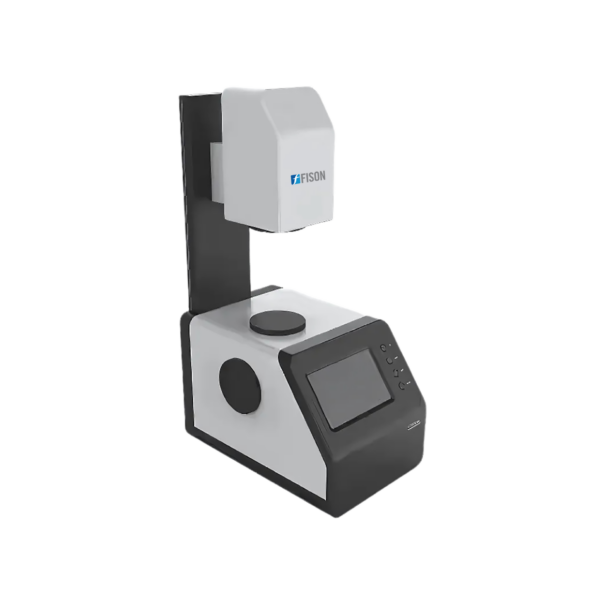

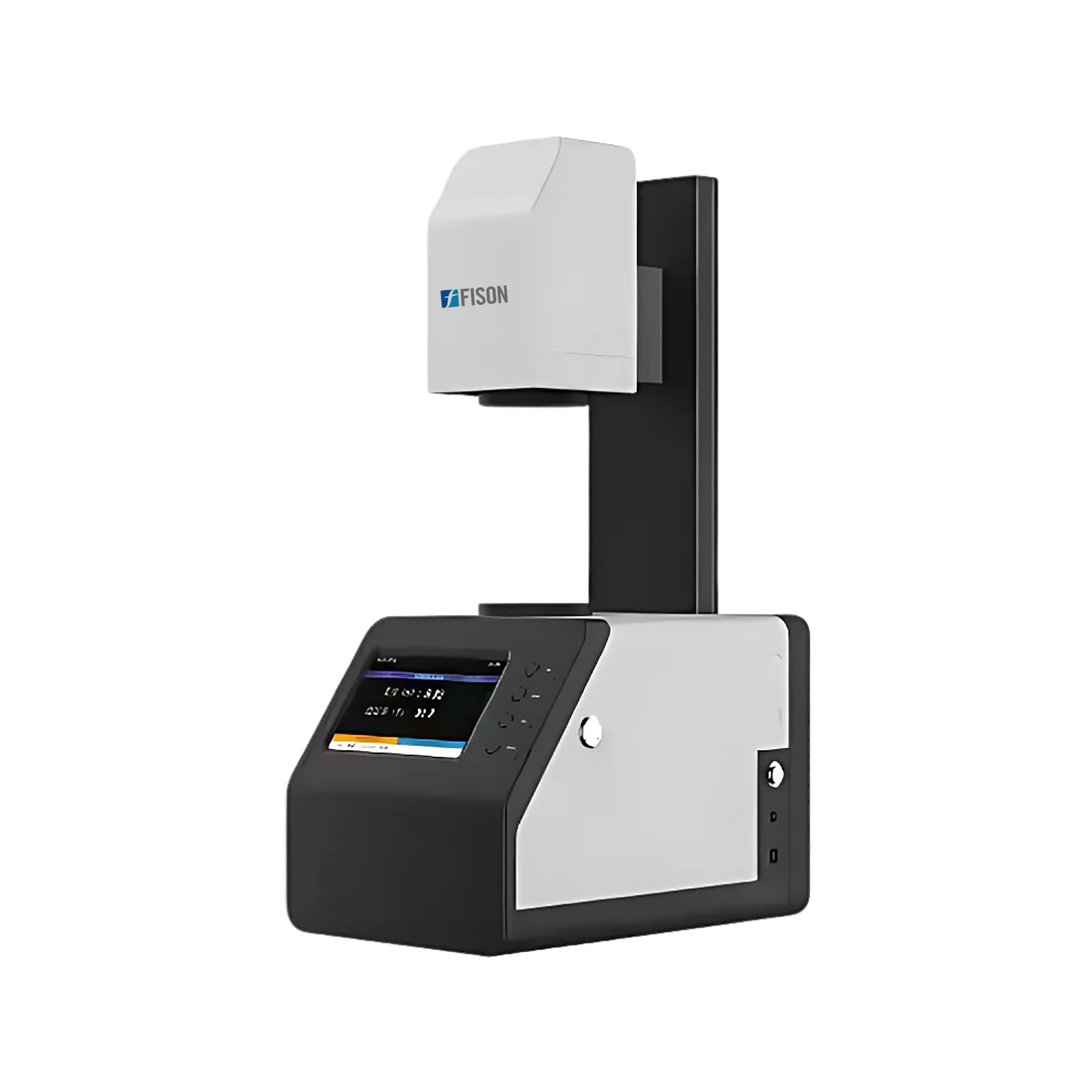

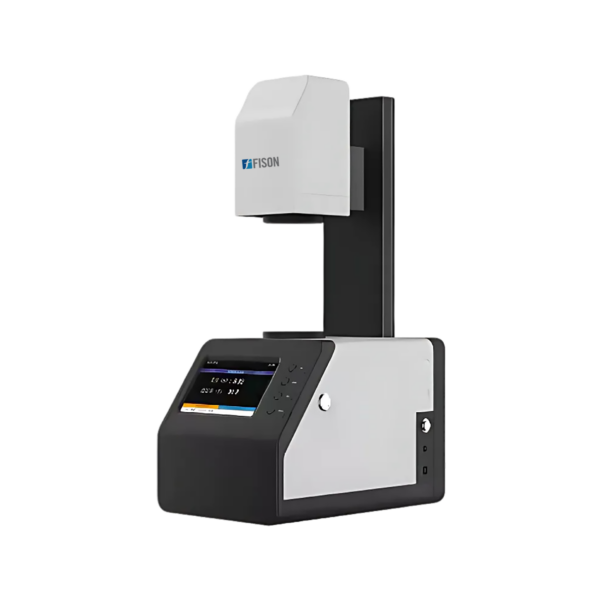

Haze Meter FM-HM-A100 is used for haze and transmittance measurement. With open measurement area, there is no limit on sample size, performs both vertical and horizontal measurements. Different light source like A, C, D65 are used to measure haze and transmittance of the test sample. Designed in accordance with ASTM, ISO international standards to meet the customers’ needs.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used in haze and transmittance measurement of anti-glare plastic sheets, films, glass, LCD panel screens used for TV screen, car navigation screen, computer screen, mobile phone cover and other transparent, semi-transparent material color.
| Wavelength | 400 to 700 nm |
| Standards | ASTM D1003/D1044 & ISO13468/ISO14782 |
| Wavelength interval | 10 nm |
| Light source | CIE-A, CIE-C, CIE-D65 |
| Parameters | HAZE, Transmittance (T) |
| Spectral response | CIE Luminosity function Y/V (λ) |
| Geometry | 0/d |
| Measurement area/sample port | 15 mm |
| Measurement range | 0 to 100 % |
| Haze resolution | 0.01 |
| Haze responsibility | ≤ 0.1 |
| Sample size | Thickness ≤ 150 mm |
| Display | 5 inch TFT LCD screen |
| Memory | 20000 value |
| Interface | USB |
| Working temperature | 10 to 40°C |
| Storage temperature | 0 to 50°C |
| Power supply | 110-240V, 50-60Hz |
| Dimension (L×W×H) | 310 × 215 × 540 mm |
| Packaging dimension (L×W×H) | 380 × 270 × 610 mm |
| Weight | 7 kg |
