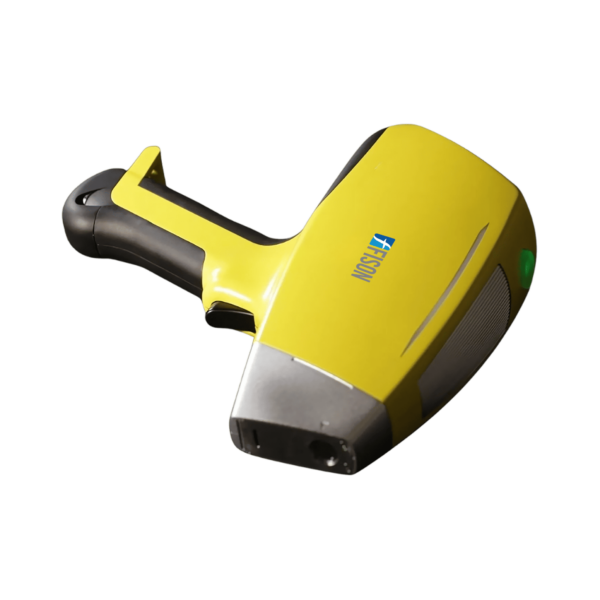

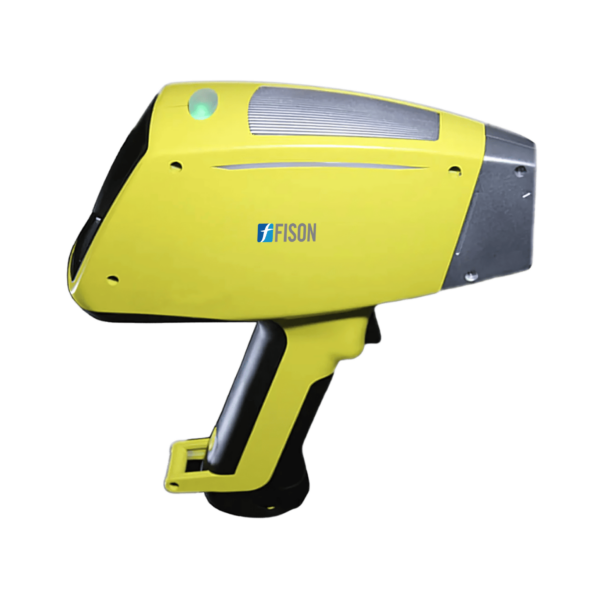

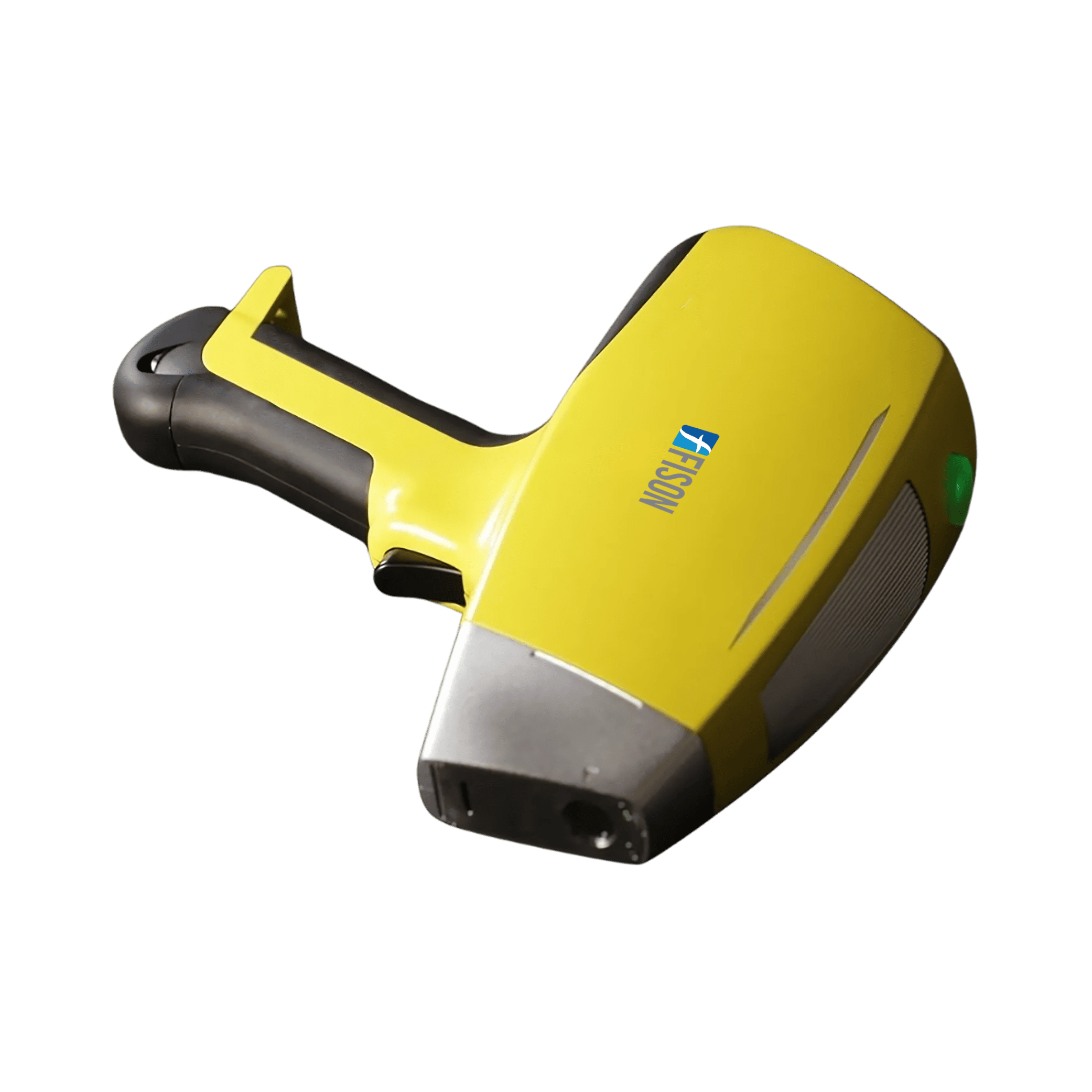

Handheld XRF Gold Analyzer FM-XGA-A200 offers non-destructive elemental analysis for precise and reliable identification without damage. It is equipped with a BOOST Si-PIN detector for high sensitivity and authentic detection. This unit provides a durable 4.3-inch touchscreen for clear and detailed visuals. It comes with a built-in double beam technology for automatic sample sensing. Our analyzer has a compact, portable design for convenient use and transport.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Handheld XRF Gold Analyzer FM-XGA-A200 is used to detect and analyzing all elements ranging from Magnesium (Mg) to Uranium (U) with high precision, making it ideal for applications in jewellery industries, gold analysis, precious metal identification, and alloy composition testing.
| Target Elements | Ag (standard), Au (optional), W (optional), Rh (optional) |
| Range of detection | All elements between Mg to U |
| Excitation source | 0 to 50KV/200μA |
| Detector | BOOST Si-PIN detector, SDD detector |
| Memory | 32GB storage |
| Connectivity Options | USB, Bluetooth, Wi-Fi connectivity |
| Heat dissipation | T-shaped radiator |
| Safety features | Waterproof, dust-proof, shockproof |
| Battery Life | 8 hours |
| Power Supply | 100 to 220VAC, 50/60Hz |
| Product Dimension | 254 ×79 × 280 mm |
| Packaging Dimension | 530 × 230 × 450 mm |
| Net Weight | 6 kg |
| Gross Weight | 7.5kg |
