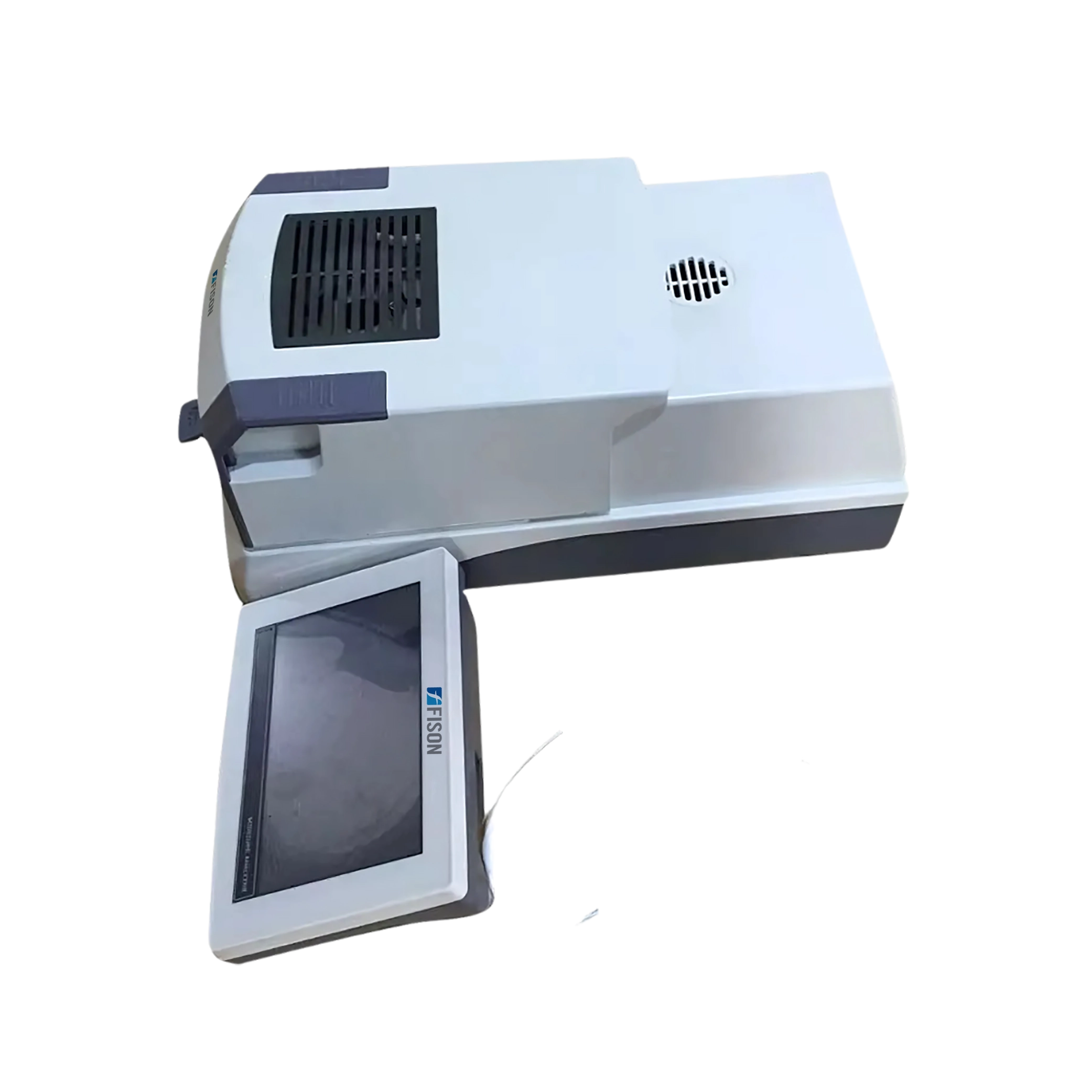

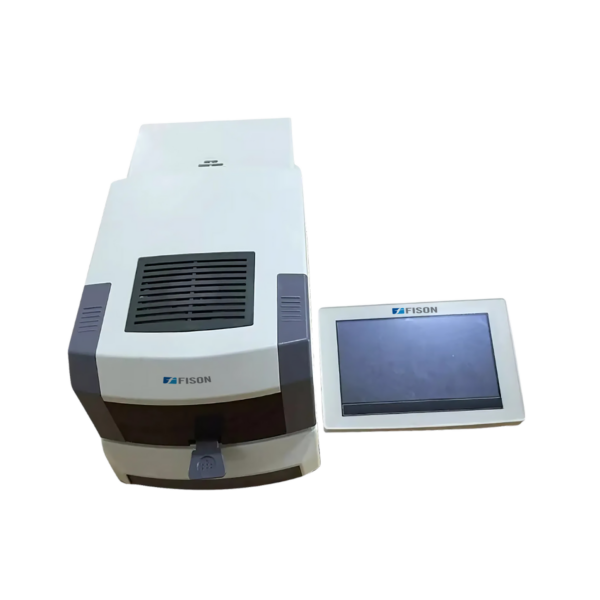

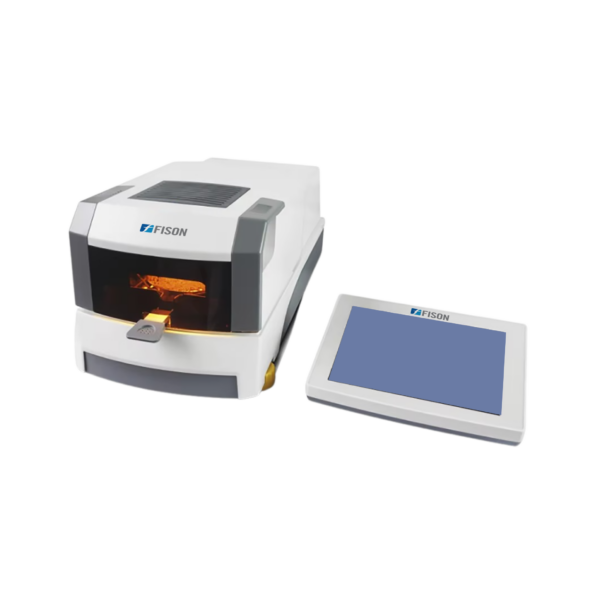

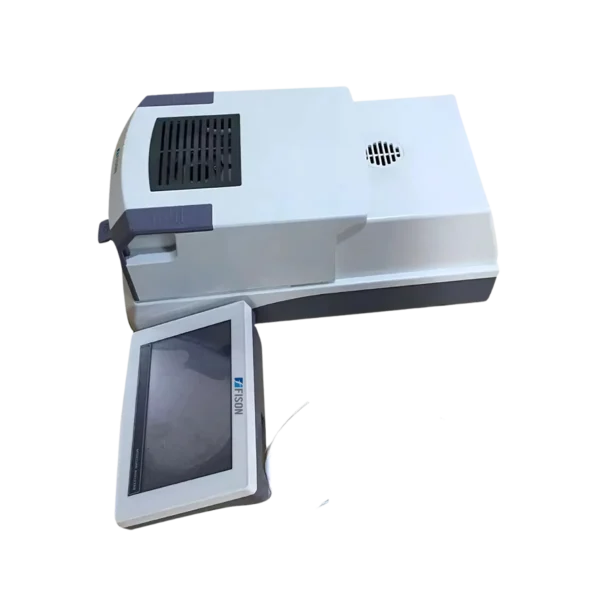

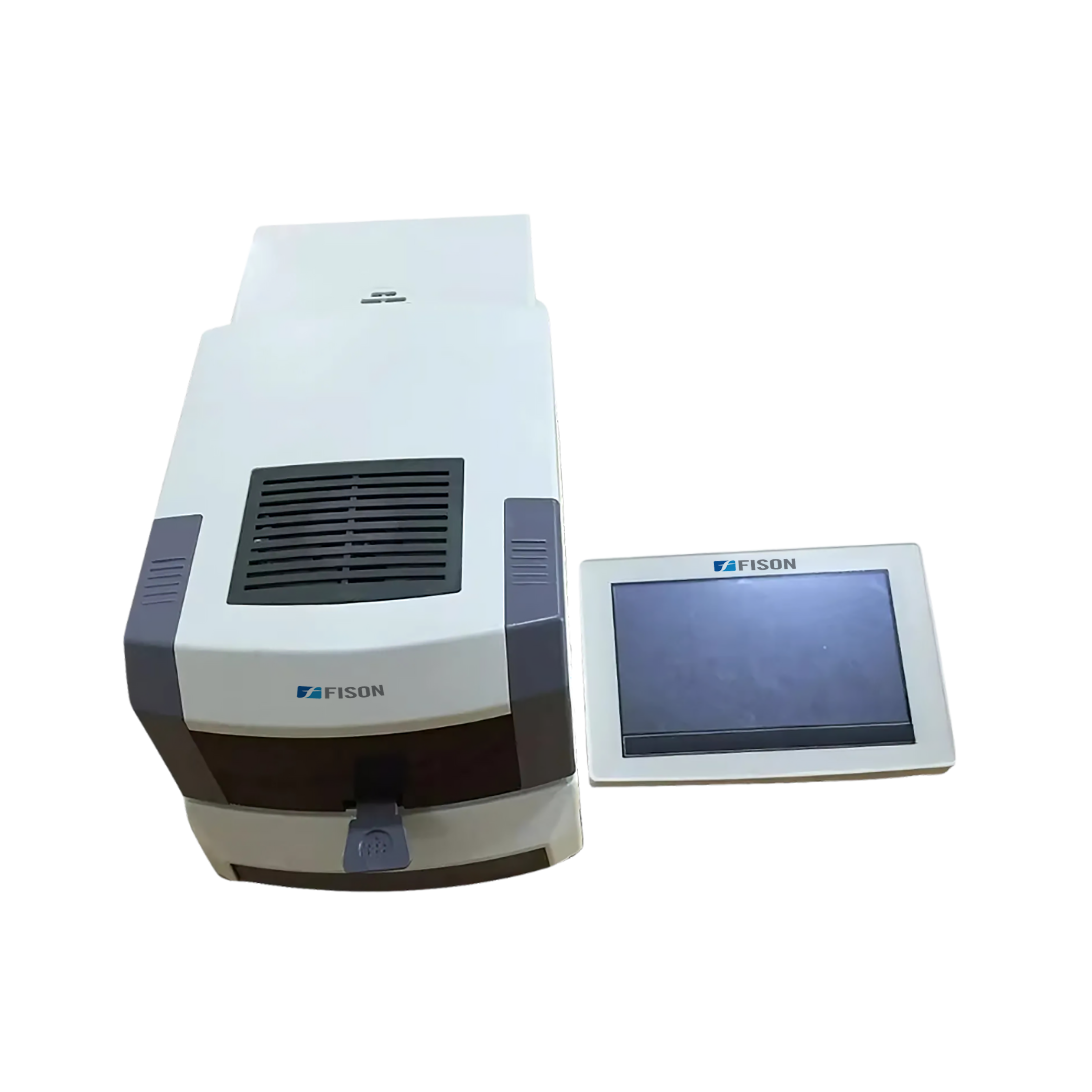

Halogen Moisture Analyzer FM-HMA-A202 is a benchtop automatic and intelligent moisture content analyzer designed with sensor opening automatic door for heating chamber. Incorporated with halogen heating lamp for rapid determination of moisture content and dry weight of test sample with range of 4 mg to 210 g. The sample is effectively placed in heating chamber at 35 cm height, yields accurate results. Features temperature setting of 40 to 230 °C, cable communication mode and RS232/RJ45/USB interface. User-friendly 7” touch panel LCD display illustrates test curve data and other test parameters.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Suitable for the testing and analysis of samples of materials such as wood, pellets, biomass, granules, feed, food products and pastes. Also, designed for food, plastics and chemical moisture analysis.
| Range | 4 mg to 210 g |
| Readability | 1 mg |
| Temperature range | 40 to 230 °C |
| Communication mode | Cable |
| Rechargeable battery | Nil |
| Heat source | Halogen lamp |
| Pan size | 100 mm diameter |
| Operating temperature range | 5 to 35°C |
| Temperature sensor | PT-100 |
| Temperature step | 1°C |
| Temperature setting | 40 to 230°C by 1°C |
| Time setting | 1 to 99 min by 10s |
| Dry residual range | 0 to 100 % |
| Dry residual readability | 0.0001 |
| Moisture range | 0 to 100 % |
| Moisture readability | 0.0001 |
| Number of storage data | 20 |
| Number of history data | 20 |
| Heater part power | 220 V ± 15 % 50 Hz, 110 V ± 15 % 60 Hz, 400 W |
| Balance part power | Input: 220 V 50 Hz/ 110 V 60 Hz, Output: 9 V |
| Mechanical part machine | Input: 220 V 50 Hz/ 110 V 60 Hz, Output: 24 V (dual –drive) |
| Display | 7 inch touch panel |
| Interface | RS232/USB |
| Operation height | 275 mm |
| Chamber height | 35 mm |
| Indicator dimension | 200 × 75 × 135 mm |
| Unit dimension | 215 × 195 × 415 mm |
| Gross weight | 10 kg |
