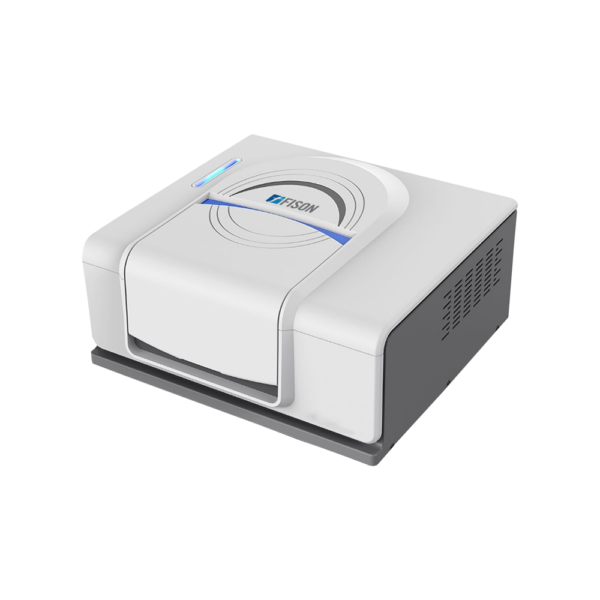

FTIR Spectrometer FM-FTIR-A100 has a powerful optical system with Cube-corner Michelson interferometer. It has wavenumber range of about 7800 cm-1 to 350 cm-1. Gold-coated reflecting mirrors maximize light throughput, guaranteeing exceptional sensitivity. Communication has become very convenient due to Ethernet and WIFI connections. Enables real-time monitoring of instrument status and performance. Intuitive and user-friendly device, thanks to its touch control operation and compatibility with Windows. Moreover, it is a cutting-edge solution revolutionizing spectral analysis in research, industrial, and educational settings.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
FTIR Spectrometer is widely used across chemical industry, pharmaceuticals, environmental science, forensic science, food, agriculture, biomedical, biological research materials, academic research, etc.
| Interferometer Type | Cube-corner Michelson Interferometer |
| Beam Splitter | Multilayer Ge-coated KBr |
| Wavenumber Range | 7800 cm-1 to 350 cm-1 |
| Resolution | 0.85 cm-1 |
| Signal to Noise Ratio | Better than 20,000:1 (RMS value) |
| Wavenumber Accuracy | ±0.01 cm-1 |
| Scanning Speed | Microprocessor Controlled, Selectable Speeds |
| Detector | High Sensitivity Pyroelectric Module |
| Software | MainFTOS Suite Workstation, Compatible with All Versions of Windows OS |
| Device Status Diagnosis | Power on self-check, Real-time Temperature and Humidity Monitoring with Reminders |
| Environmental Conditions | Temperature: 10°C to 30°C, Humidity: Less than 60% |
| Power Supply | AC 220 V ± 22 V, 50 Hz ± 1 Hz |
| Dimensions | 490 × 420 × 240 mm |
| Packing dimensions | 680 × 580 × 630&mm |
| Weight | 23.2 Kg |
| Gross weight | 40 Kg |
