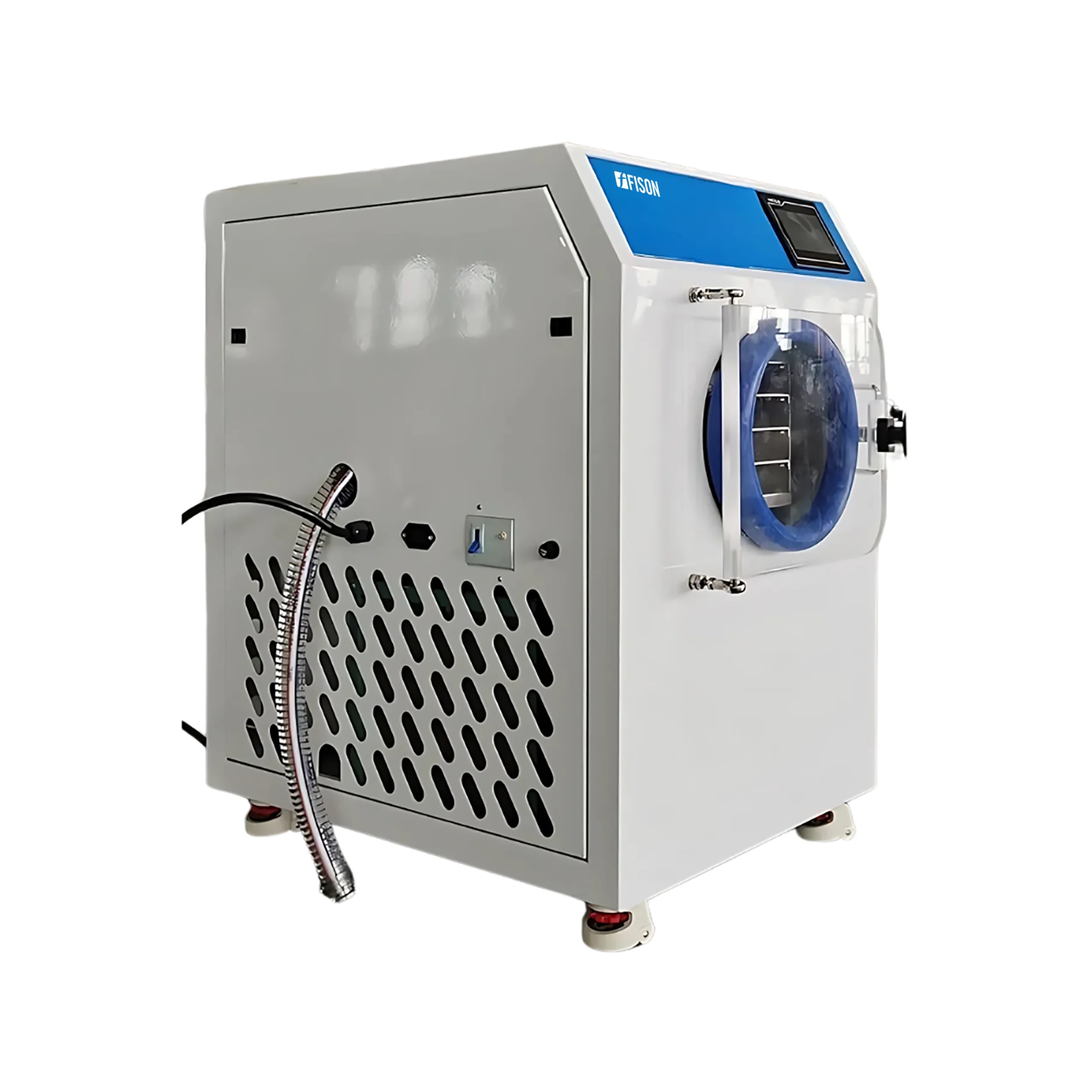

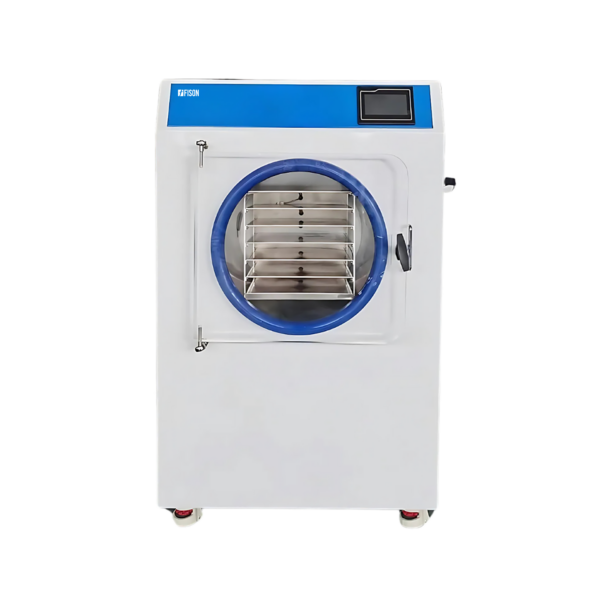

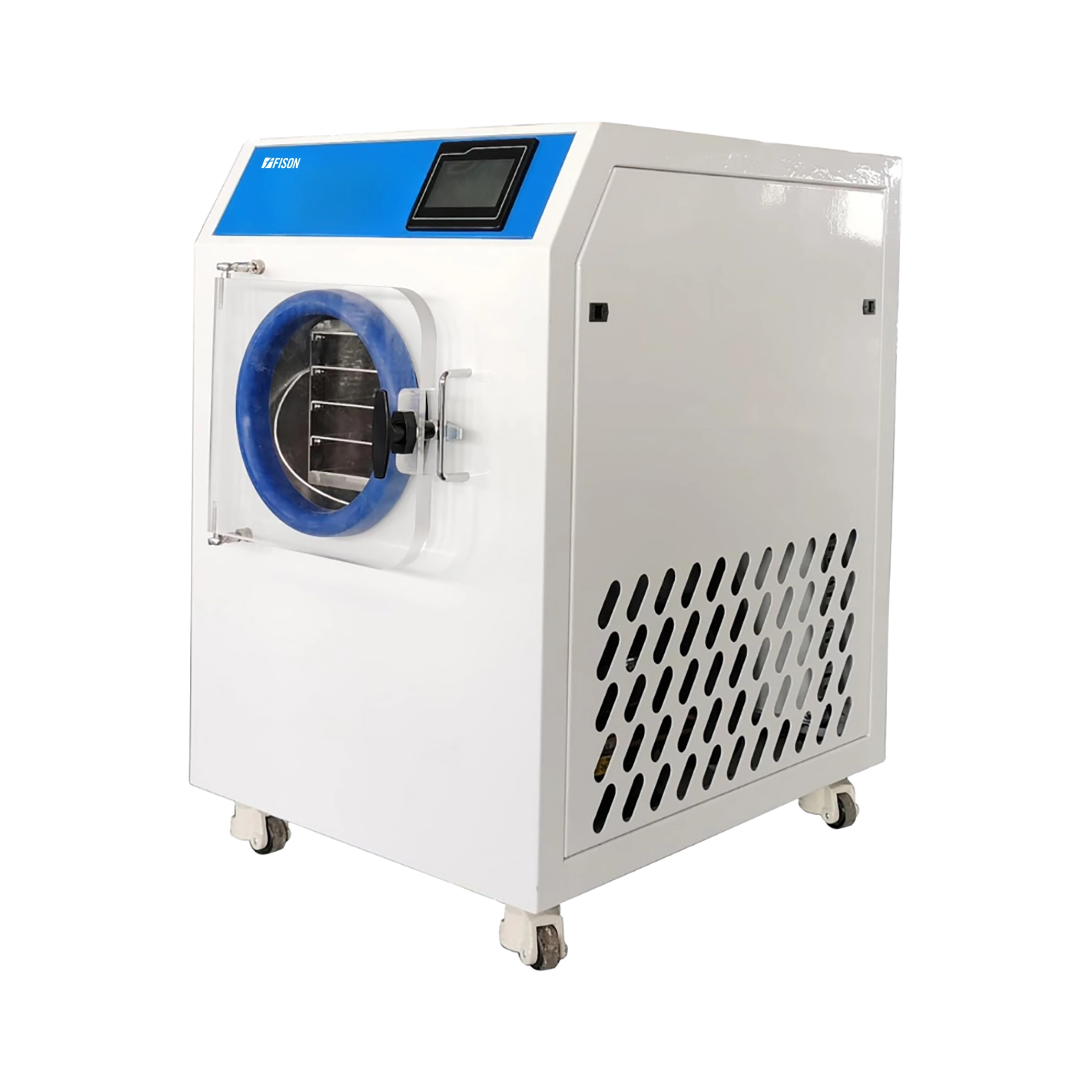

Freeze Dryer FM-FD-C103 is a high-performance unit designed for efficient and reliable freeze-drying. It features a 2.5 m² shelf area and a 25 kg nominal input capacity for enhanced preservation. It is equipped with 10 spacious trays, providing efficient and uniform drying. It is constructed from high-quality stainless steel, ensuring exceptional durability and longevity.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Freeze Dryer is used in the Pharmaceutical Industry, Biotechnology Research, Food Industry, Chemical Industry, and Environmental Science.
| Shelf area | 2.5 m² |
| Nominal input capacity | 25 kg |
| Max. input capacity | 37 kg |
| Max. ice capacity | 37 kg |
| Product cooling | -20 to -30°C |
| Product cooling way | In dryer |
| Ice condenser | -25 to -35°C |
| Tray quantity | 10 pcs |
| Tray size | 405 × 605 mm |
| The way of cooling | By air |
| Ultimate vacuum | 15 Pa |
| Compressor | Economical |
| Vacuum pump | Economical |
| Other accessories | Economical |
| Power consumption | 7 kW |
| Power phase | Three phases |
| Power voltage | 200 to 480V |
| Power frequency | 50/60Hz |
| Installation area | 4 m² |
| Dimension | 1960 × 960 × 1580 mm |
| Weight | 540 kg |
