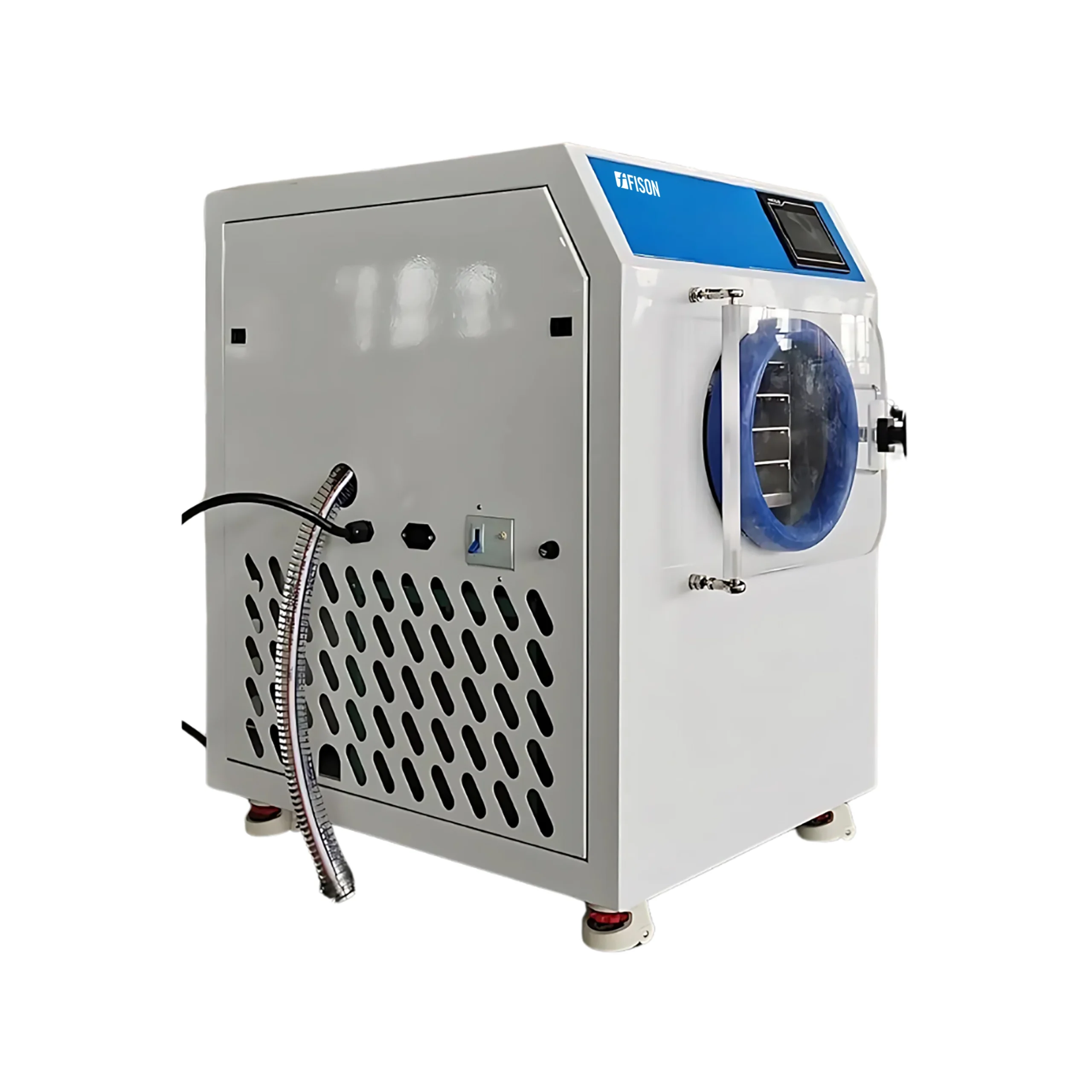

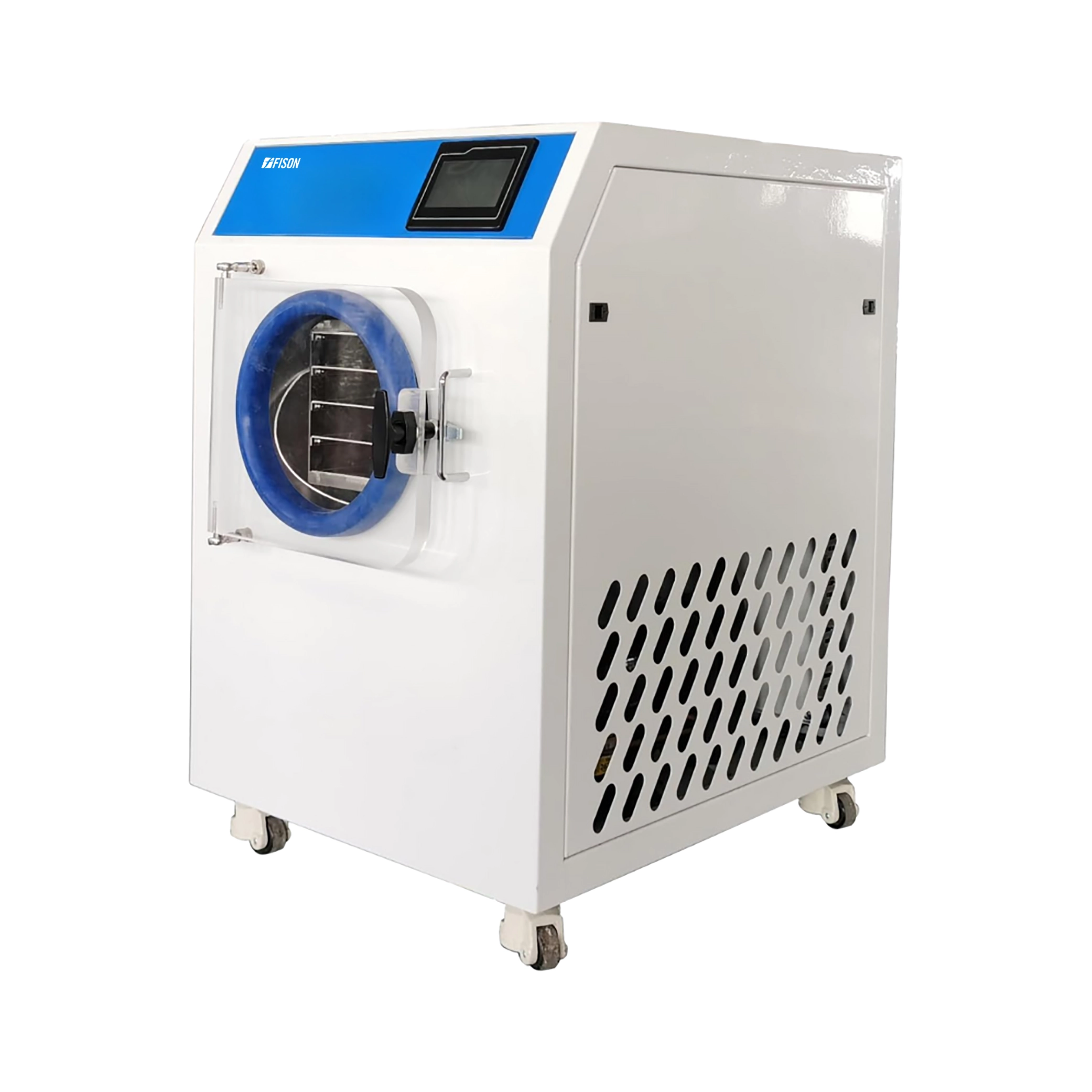

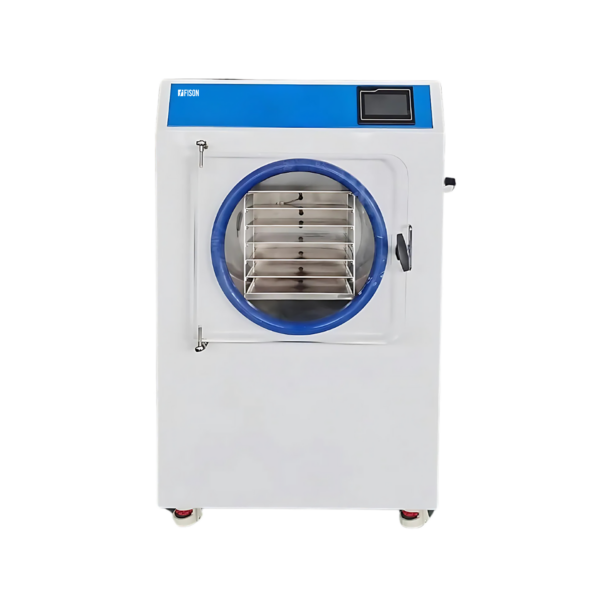

Freeze Dryer FM-FD-C102 offers a precise temperature range of -25°C to -35°C for optimal performance. It features a 1 m² shelf area and a 10 kg nominal input capacity, ensuring efficient and uniform drying. It has 12 trays, ensuring efficient and organized drying of multiple samples. It is equipped with a digital display for precise operation and seamless functionality.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Freeze Dryer is used in the Pharmaceutical Industry, Biotechnology Research, Food Industry, Chemical Industry, and Environmental Science.
| Shelf area | 1 m² |
| Nominal input capacity | 10 kg |
| Max. input capacity | 15 kg |
| Max. ice capacity | 15 kg |
| Product cooling | -20 to -30°C |
| Product cooling way | In dryer |
| Ice condenser | -25 to -35°C |
| Tray quantity | 12 pcs |
| Tray size (mm) | 245 × 315 |
| The way of cooling | By air |
| Vacuum (Pa) | 15 Pa |
| Compressor | Economical |
| Vacuum pump | Economical |
| Other accessories | Economical |
| Power phase | Single |
| Power voltage | 220/115V |
| Power frequency | 50/60Hz |
| Power consumption | 3.5 kW |
| Installation area | 3 m² |
| Dimension | 1210 × 650 × 1150 mm |
| Weight | 305 kg |
