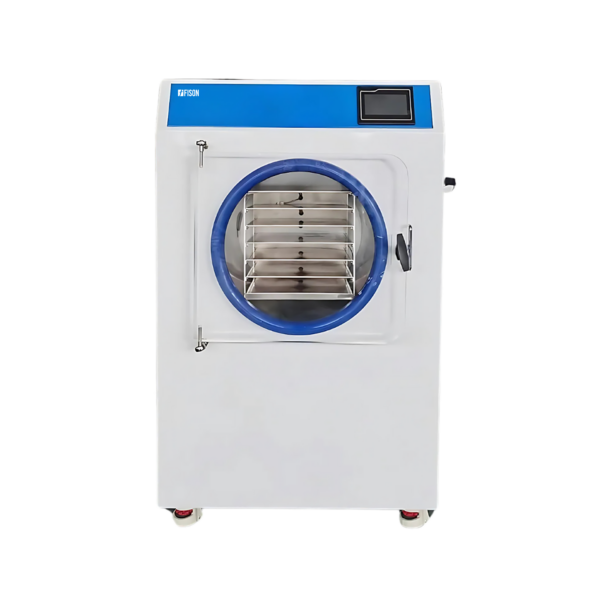

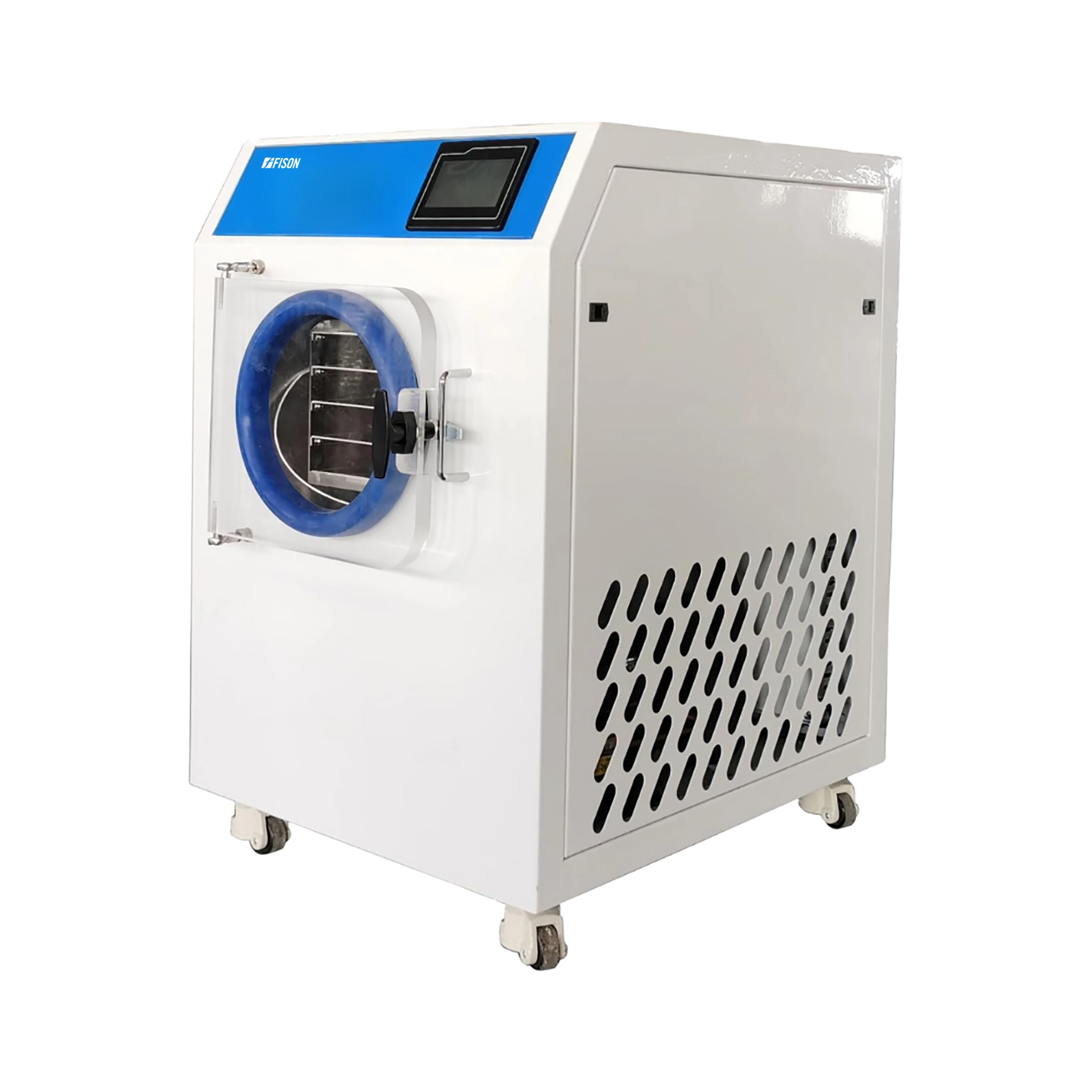

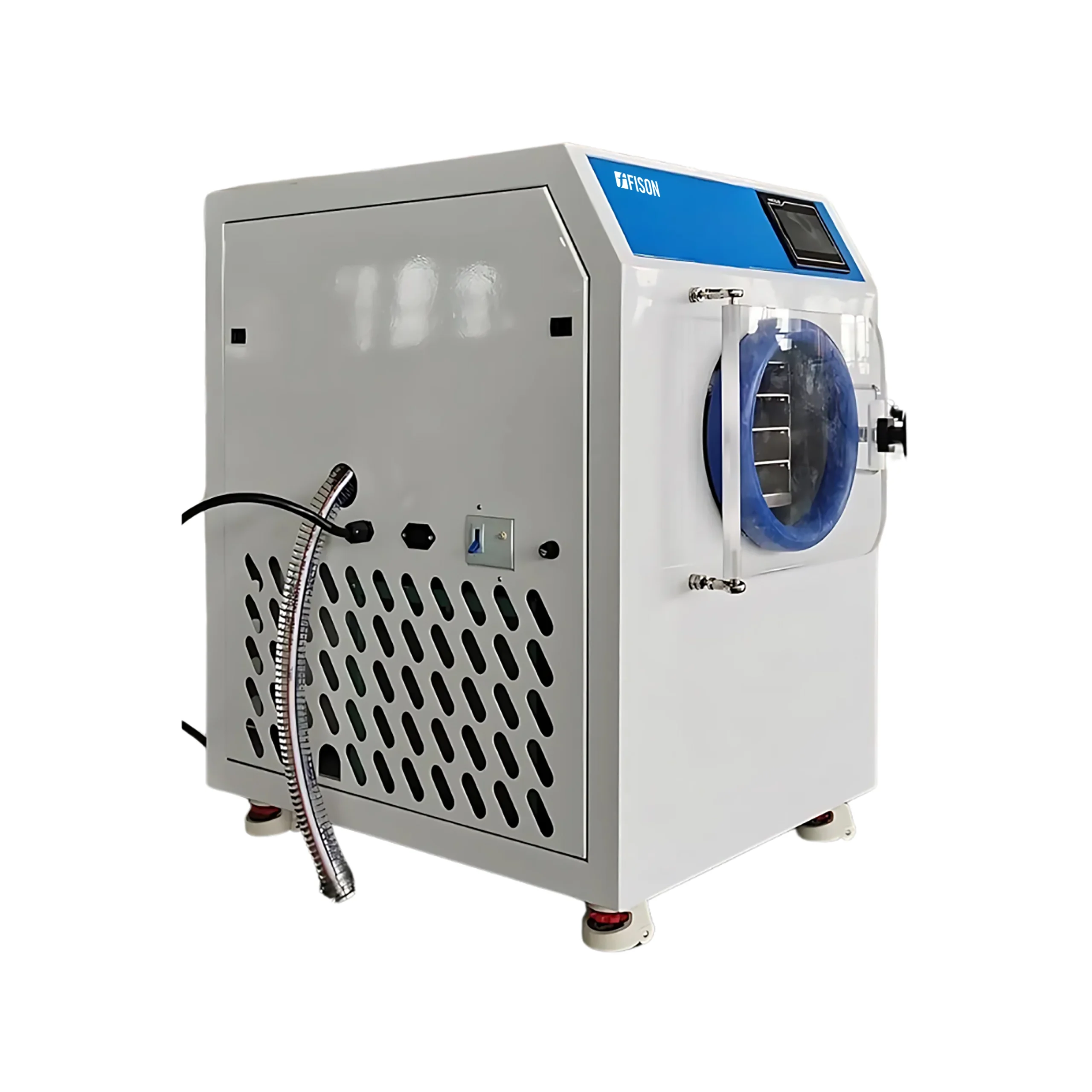

Freeze Dryer FM-FD-C101 is designed with a 0.5 m² shelf area and a 5 kg nominal input capacity, ensuring efficient results. It offers a precise temperature range of -25°C to -35°C, ensuring optimal drying efficiency. It features an advanced cooling system that provides efficient heat dissipation, maintaining stable temperatures. Our freeze dryer features an LCD for real-time monitoring of key parameters.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Freeze Dryer is used in the Pharmaceutical Industry, Biotechnology Research, Food Industry, Chemical Industry, and Environmental Science.
| Shelf area | 0.5 m² |
| Nominal input capacity | 5 kg |
| Max. input capacity | 7.5 kg |
| Max. ice capacity | 7.5 kg |
| Product cooling | -20 to -30°C |
| Product cooling way | In dryer |
| Ice condenser | -25 to -35°C |
| Tray quantity | 6 pcs |
| Tray size | 245 × 315 mm |
| The way of cooling | By air |
| Vacuum | 15 Pa |
| Compressor | Economical |
| Vacuum pump | Economical |
| Other accessories | Economical |
| Power consumption | 2.5 kW |
| Power phase | Single |
| Power voltage | 220/115V |
| Power frequency | 50/60Hz |
| Installation area | 2m² |
| Dimension | 860 × 650 × 1060 mm |
| Weight | 230 kg |
