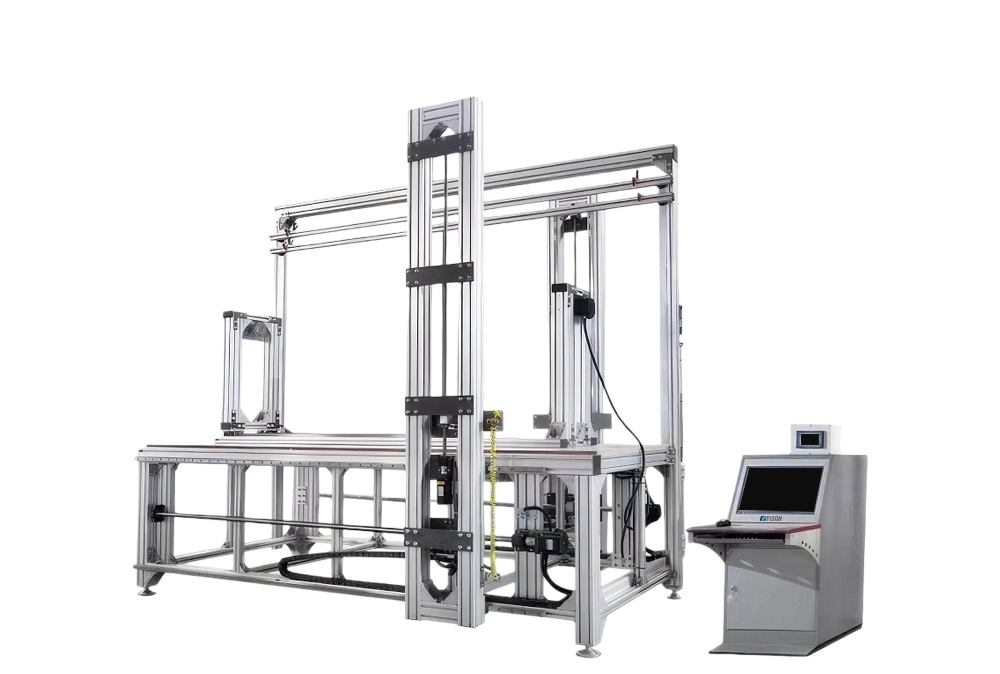

Foam Cutting Machine FM-FCM-A100 offers a cutting dimension of 2000×1250×1200 mm with 3D four-axis control for accuracy. It features ball screw transmission and uses nickel chromium alloy wire for precise cuts. It is lightweight, made of aluminium alloy, and supports asynchronous cutting for efficiency. With automated software integration, it ensures high-speed, adjustable cutting. It is ideal for industrial use, this machine combines precision, durability, and advanced technology.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Accessories | Quantity |
Industrial Touch Screen | 1 set |
Vertical Arms | 1 set |
Resistance Wire (20 m) | 1 set |
Spring | 10 pcs |
Parallel Port Line/LPT | 1 pc |
Bolt Bag | 1 bag |
| Cutting dimension (L×B×H) | 2000×1250×1200 mm |
| Vertical arm cutting width | 1250 mm |
| Horizontal cutting distance | 2000 mm |
| Effective cutting height | 1200 mm |
| Cutting mode control | 3D two side asynchronous cutting |
| Controlling axis | 3D four axis |
| Transmission from | Ball screw drive |
| software | Auto CAD, CAXA |
| Speed | 2 mm/s |
| Host material | Section bar |
| Cutting curve | 0.4 mm nickel chromium alloy wire |
| Stepping motor | Shinnon-Japan |
| Power | 0.4 KW (excluding computer power) |
| Power supply | 380V, 50Hz |
| Dimension (L×B×H) | 2.5×1.5×2.4 m |
| Weight | 450 kg |
