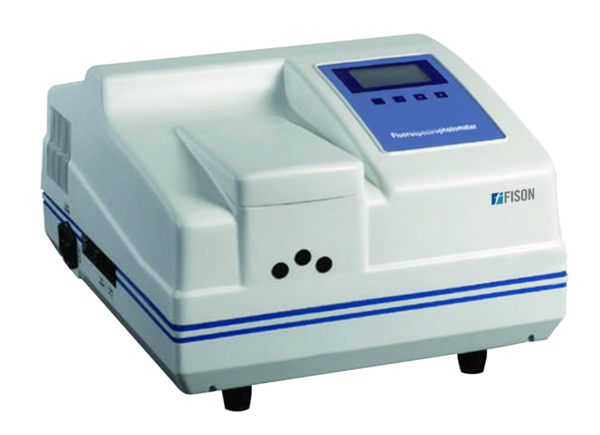

Fluorescence Spectrophotometer FM-FS-A101 is a fluorescence analyzer which adopts highly selective and sensitive analytical method using xenon lamp as light source. Offers 2 operational modes for measuring excitation and emission spectrum, emission light intensity and polarization fluorescence etc. It provides a wide lineal range of working curve with central wavelength of 250 nm to 700 nm. This equipment is an indispensable analytical method in field of trace analysis.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Ideal for use in Medical science and clinical, Pharmaceutical science and Pharmacology, Biochemistry, Food industry, Pollution and Organic and inorganic chemistry.
| Light source | Xenon lamp 150 W |
| Exciting optical system | Interference optical filter |
| Optical filter bandwidth | 10 nm |
| Optical filter beam size | 25 mm |
| Central wavelength | 250 to 700 nm |
| Emission monochromator | 200 to 900 nm (C-T diffraction grating) |
| Detector | Multiplier tube |
| Minimum sample volume | 1 mL |
| Cuvette | Glass fluorescence cuvette 10 mm |
| Wavelength accuracy | ±1 nm |
| Wavelength repeatability | ≤ 0.5 nm |
| Sensitivity | Raman peak of water in 1 cm quartz fluorescence cuvette with S/N ≥150 |
| Linearity deviation | ≤ ±3.0 % |
| Linear measurement | ≥ 0.995 |
| Stability | 1.5% / 10 min |
| Response time | (0.1 to 4) s with 6 stages adjustable |
| Fluorescence display value | 0.00 to 600.00 |
| Display | LCD digital display |
| Standard interface | USB interface |
| Working temperature | 15 to 30 ℃ |
| Power supply | AC 110/220 V±10%, 60/50 Hz |
| Dimension (L × W × H) | 550× 510× 365 mm |
| Net weight | 12 kg |
| Gross weight | 14 kg |
