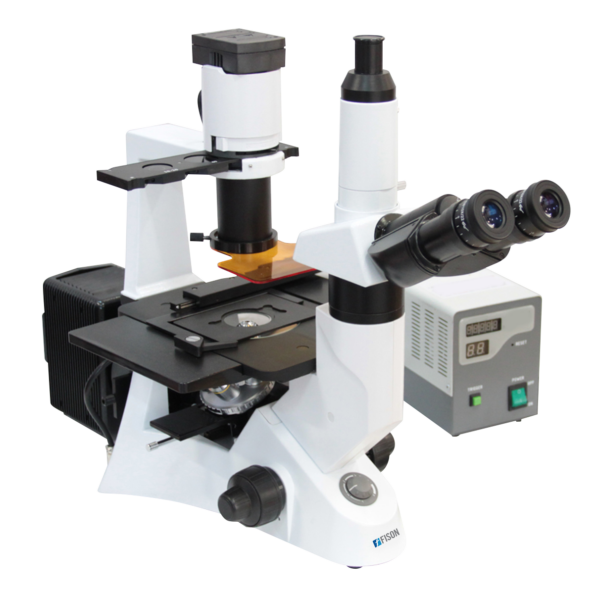

Fluorescence Microscopes FM-FM-A101 is an inverted microscope with trinocular viewing head and long working distance infinite plan objectives. The fluorescent attachment with B and G excitation filter modules aids in fluorescent microscopic observations.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
The fluorescent microscope with inverted stage finds applications in medical & clinical microbiology, tissue and cell culture fields, genetic engineering and other streams for detailed fluorescent dyes effect on a specimen.
| Optical system | Infinite optical system | ||||||||||||||||||||||||||||
| Viewing head | Trinocular head inclined at 30°,interpupillary distance 48 to 75 mm | ||||||||||||||||||||||||||||
| Eyepiece | High eye point, extra wide field eyepiece EW10x/ 22 mm | ||||||||||||||||||||||||||||
| Objectives |
| ||||||||||||||||||||||||||||
| Nosepiece | Quintuple nosepiece | ||||||||||||||||||||||||||||
| Condenser | ELWD Condenser N.A. 0.3, LWD 72 mm | ||||||||||||||||||||||||||||
| Stage | Plain stage 160 × 250 mm, glass insert Auxiliary stage 70 ×180 mm | ||||||||||||||||||||||||||||
| Fluoresence attachment |
| ||||||||||||||||||||||||||||
| Focusing | Coaxial coarse and fine adjustment, vertical objective movement, coarse stroke 37.7 mm per rotation, fine stroke 0.2 mm per rotation | ||||||||||||||||||||||||||||
| Illumination | 6 V, 30 W Halogen lamp | ||||||||||||||||||||||||||||
| Filter | Blue/Green and Ground glass (45 mm) | ||||||||||||||||||||||||||||
| Dimension (L×W×H) | 515 × 302 × 475 mm | ||||||||||||||||||||||||||||
| Weight | About 20 kg |
