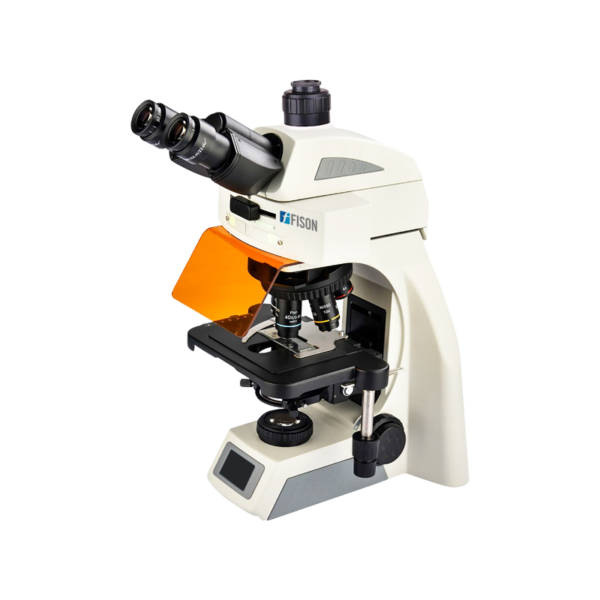

Fluorescence Microscope FM-FM-A204 is an infinite optical system comprised unit, comes with
Seidentopf trinocular viewing head, inclined at 30° and WF 10X/20 mm of eyepiece. Features
Backward Quintuple Coding Nosepiece and Synchronous belt platform stage with low
hand-position coarse and fine coaxial focusing mechanism. Designed with 1.25 NA Abbe condenser
and ECO function has 4 Infinite plan achromatic objective and bright illumination. Equipped with 2
standard fluorescence filters sets: Fluorescein isothiocyanate excitation filter cubes and Fluorescein
DAPI excitation filter cubes, has LCD display for easy and convenient operation along with 0.5X
c-mount.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Fluorescence microscope is used across histopathology, immunology, cytology, clinical research,genetics and environmental science etc.
| Viewing head | Siedentopf trinocular head inclined at 30º Interpupillary adjustable distance47 mm to 78 mm | ||||||||||||
| Eyepiece | WF10X/20 mm | ||||||||||||
| Objectives | Infinite plan achromatic objectives: 4x, 10x, 40x, 100x (s, oil) | ||||||||||||
| Nosepiece | Backward Quintuple Coding Nosepiece | ||||||||||||
| Power supply | 100 to 240 V, 50/60 Hz | ||||||||||||
| Condenser | Abbe N.A. 1.25 condenser | ||||||||||||
| Stage | Synchronous belt platform stage: 235 mm×150 mmMoving range: 80 (X) mm×54 (Y) mm | ||||||||||||
| Fluoresence attachment |
| ||||||||||||
| Focusing | Low- handposition coarse and fine coaxial focusing mechanism, CoarseStroke 37.7mm per RotationFine division 0.002mm; Fine Stroke 0.2mmPer Rotation,Focal Disatnce30mm, With adjusting elastic device and upper limit, withplatform up and down adjustment mechanism, stage XY graduation step 0. | ||||||||||||
| Illumination | Halogen lamp 6 V/30 W or 3 W LED brightness adjustable |
