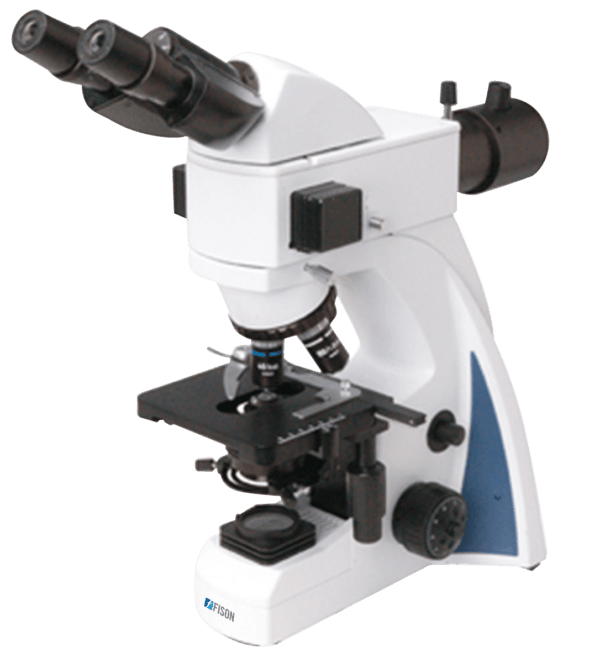

Fluorescence Microscope FM-FM-A200 is an upright microscope with binocular viewing head, backward quadruple nosepiece and infinite semi-plan achromatic objective. The LED fluorescent attachment with Blue excitation filter helps in fluorescent microscopic observations.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
The fluorescent microscope with inverted stage finds applications in medical & clinical microbiology, tissue and cell culture fields, genetic engineering and other streams for detailed fluorescent dyes effect on a specimen.
| Optical system | Infinite optical system | ||||||||||||||||
| Viewing head | Compensation free binocular head inclined at 30°,interpupillary distance 48 to 75 mm | ||||||||||||||||
| Eyepiece | Wide field eyepiece EW10X/ 18 mm | ||||||||||||||||
| Objectives | Infinite semi-plan achromatic objective 4X, 10X, 40X, 100X | ||||||||||||||||
| Nosepiece | Backward quadruple nosepiece | ||||||||||||||||
| Condenser | Sliding in centerable N.A. 1.25 | ||||||||||||||||
| Stage | Double layer mechanical stage 140 × 140 mm, Moving stage 75 × 50 mm | ||||||||||||||||
| Fluoresence attachment |
| ||||||||||||||||
| Focusing | Coaxial coarse and fine adjustment, vertical objective movement, Coarse stroke 37.7 mm per rotation, Fine stroke 0.2 mm per rotation | ||||||||||||||||
| Illumination | S-LED illumination lamp with adjustable brightness | ||||||||||||||||
| Weight | About 17 kg |
