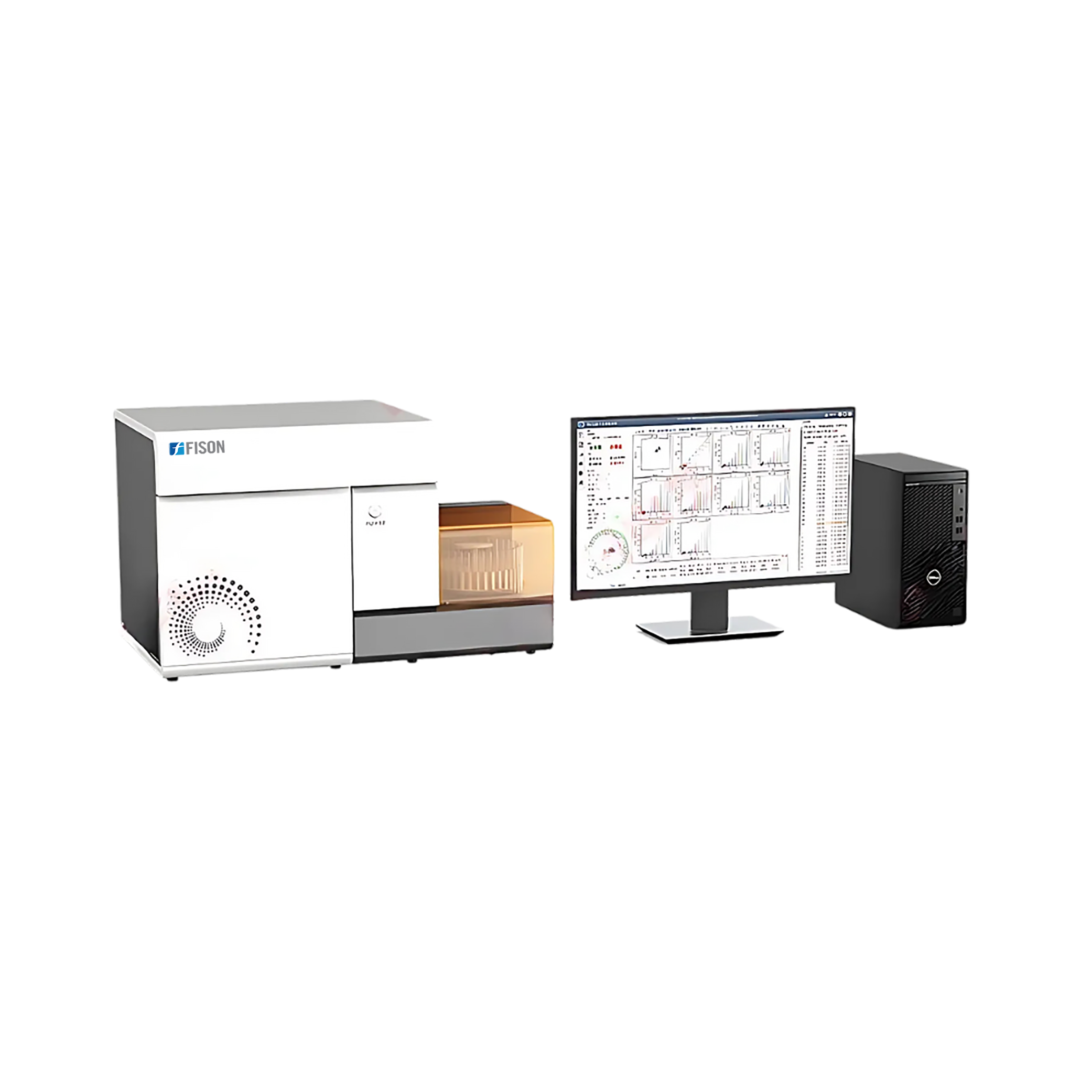

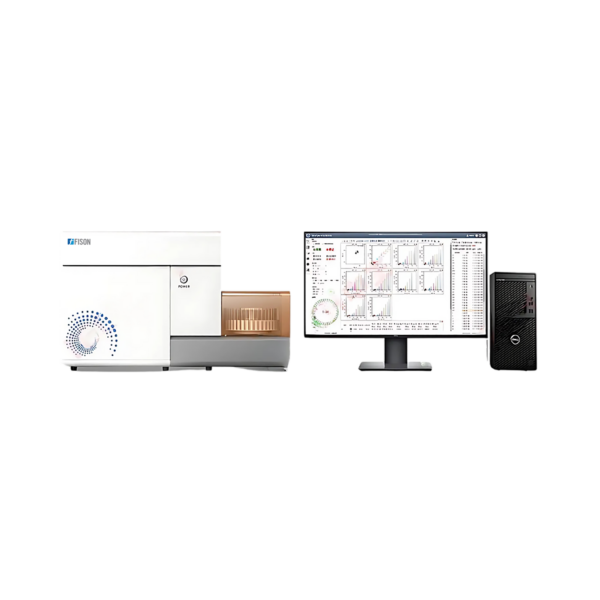

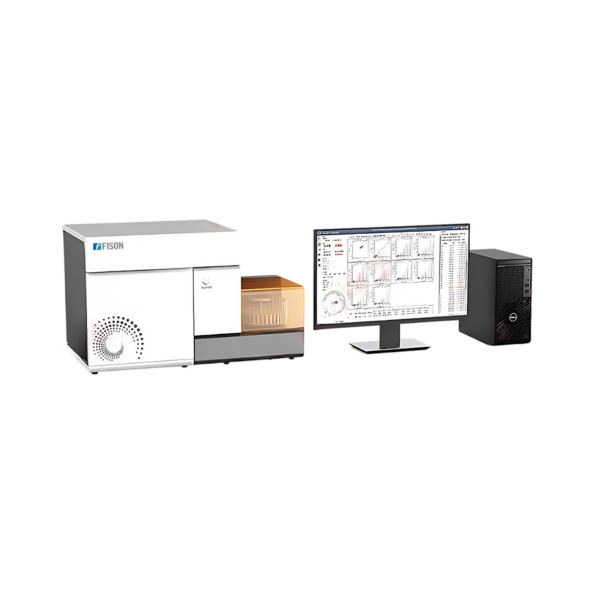

Flow cytometer FM-FC-A101 is a reliable instrument for precise analysis. With adjustable injection speeds from 15 to 120 L/min, ensures efficient operation. The device detects particles below 0.45µm, ensuring precision in results. With its automated detection process, workflow is optimized. Supporting 3 lasers and 10 fluorescent channels, it facilitates thorough analysis
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Flow Cytometer is used in Clinical Diagnostics, Scientific laboratories, Food and Beverage Industry, Microbiology.
| Wavelength | 405 nm, 488 nm, 638 nm |
| Laser power | 100 mW,60 mW , 80 mW respectively |
| Resolution | < 2 % |
| Fluorochromes | 10 |
| Fluorescence detection limit | FITC < 50 MESF , PE < 30 MESF , APC < 30 MESF |
| Linearity | ≥ 0.99 |
| Detector | APD Detector |
| Particle size sensitivity | 0.2 to 50 μL |
| Carry-Over Rate | ≤ 0.1 % |
| Analysis rate | > 500000 events/s |
| Signal range | Maximum 107 |
| Injection speed | Low : 15 μL / min , Medium : 30 μL / min High 1 : 60 μL /min , High 2 : 90 μL/ min , High 3 : 120 μL/min Adjustable speed range : 15 to 120 μL / min |
| Sensitivity adjustment | Utilizes two thresholds |
| Fluorescence compensation | Supports dual thresholds to minimize cell debris |
| Configuration template | Support project template function |
| Performance monitoring | Automatic |
| Sample delivery method | Single tube manual sampling 40 tubes auto sampler with single sample mixing function 96-hole plates |
| Software | Support acquisition and analysis at the same time |
| Data storage format | FCS3 , 1 /FCS 3.0 and FCS 2.0 |
| Dimensions (L × W × H) | 760×450 ×470 mm |
| Weight | 40 kg |
