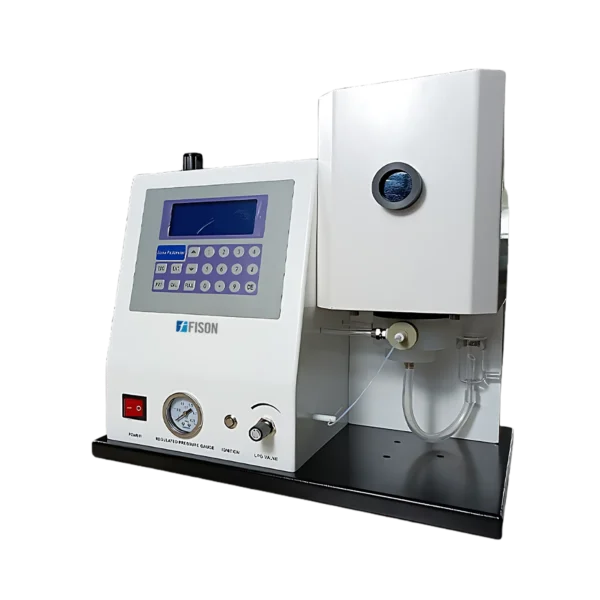

Flame Photometer FM-FPM-A101 is a fully innovative photometer engineered to analyze metal ion concentrations such as K, Na, Li, and Ca within test samples. It automatically determines the correlation coefficient of the test sample with a minimum suction volume of < 6 mL/min. Fitted with an RS232 interface for seamless data transfer that enables easy communication via PC. Our photometer is configured with a 7-inch color touchscreen display that provides instant readings of element concentrations.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Flame Photometer has wide applications in areas like clinical laboratories, pathology, research laboratories, soil and fertilizer industries, petroleum and mining industries, chemical product manufacturing units, and pharmaceutical and beverage industries.
| Measurement Range | K: 0-100ppm Na: 0-160ppm Li: 0-100ppm Ca: 0-1000ppm |
| Display | LCD Display |
| Elements Display Channels | Max. 3 channels |
| Display Range (ug/ml) | Potassium:0-100 ug/ml sodium: 0-160 ug/ml lithium: 0-100 ug/ml calcium: 0-1000 ug/ml |
| Response Time | <8 sec |
| Minimum Suction Volume | ＜6mL∕min |
| Repeatability | ≤3% |
| Stability | Relative volume in 15s: ≤3% |
| Linear Error | K:0.2ppm Na:0.5ppm Li:0.1ppm Ca:2ppm |
| Detection Limit | K:0.1ppm Na:0.1ppm Li:0.1ppm Ca:2ppm |
| Linearity | 2% (single-point CAL) |
| Optional | PC Software |
| Curve Calibration | Straight-line method; Polygon method; Quadratic fit. |
| Dimension | 740 × 400 × 550 mm |
| Weight | 27 Kg |
