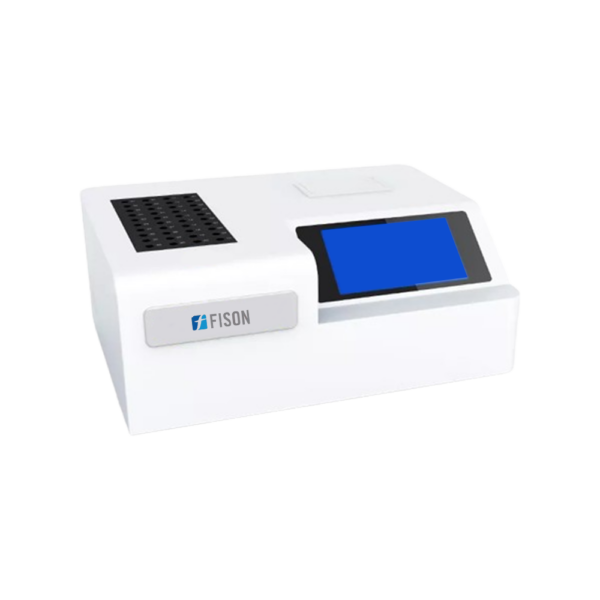

Erythrocyte Sedimentation Rate Analyzer FM-ESR-A100 can simultaneously measure 40 whole blood samples within 30 minutes. It features auto temperature compensation at 18°C ensuring measurement consistency. Employs infrared technology and improved Westergren method for analysis. Integrated with thermal printer for convenient data documentation. Our ESR Analyzer is fully automated and assists in clinical diagnosis.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Erythrocyte Sedimentation Rate Analyzer helps in screening and diagnosis of infections, inflammatory and autoimmune disorders. It is also utilized for monitoring disease progression and routine health analysis.
| Throughput | 80 Tests / hour |
| Measurement Method | Infrared detection |
| Analysis Result | Westergren ESR value (mm/hour) |
| Measurement Range | 0 to 120 mm/h |
| Blood Level Range | 50 mm to 64 mm |
| Haematocrit (HCT) Range | 0.2 to 1 |
| Reading Accuracy | 0.2 mm |
| Channel Error | ≤ ±4 mm/h |
| Number Of Analysis Channels | 40 |
| Channel Consistency | 0 to 10 mm/h, SD ≤ 1.5 mm/h, > 10 mm/h, CV ≤ 15% |
| Repeatability | 0 to 10 mm/h, SD ≤ 1.5 mm/h, > 10 mm/h, CV ≤ 15% |
| Analysis Time | 30 or 60 min |
| Sampling Interval | 3 min |
| Result Accuracy | ±2mm/h (ESR ≤ 30mm/h) ±3mm/h (30mm/h < ESR ≤ 80mm/h) ±5mm/h (ESR > 80mm/h) |
| Result Precision | CV ≤ 2% |
| Result Resolution | 1 mm/h |
| Temperature Compensation | Automatically corrected to result at 18°C |
| Display | 7-inch colour LCD touch screen |
| Communication Interface | RS232 serial interface |
| Printer | Built-in thermal printer |
| Power Supply | AC 220 V, 50 to 60 Hz |
| Dimensions (W × D × H) | 360 × 300 × 180 mm |
| Packaging Dimensions (W × D × H) | 395 × 335 × 375 mm |
| Net Weight | 7.3 kg |
| Gross Weight | 10 kg |
