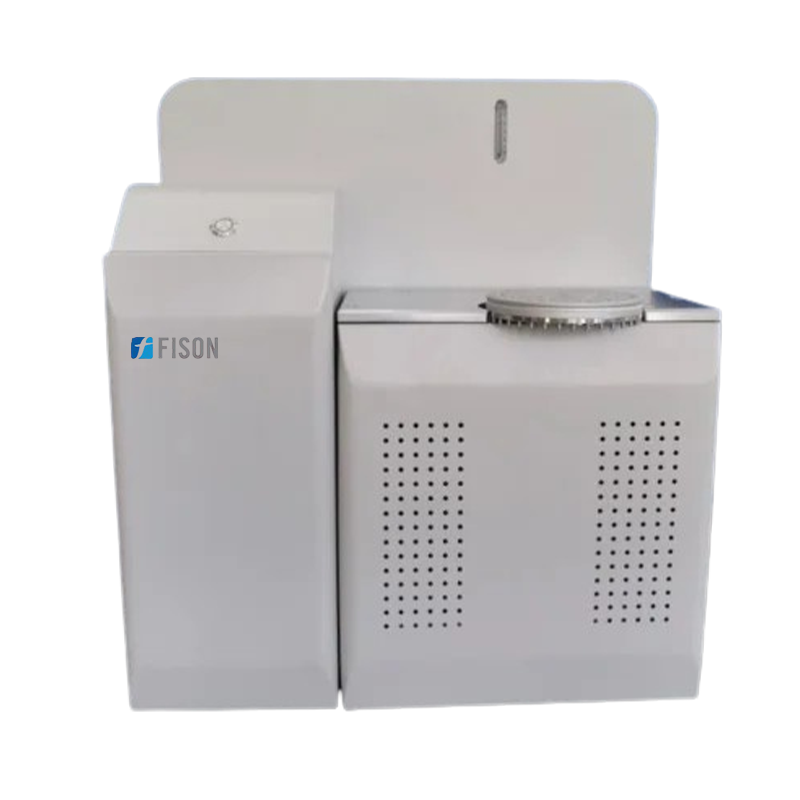

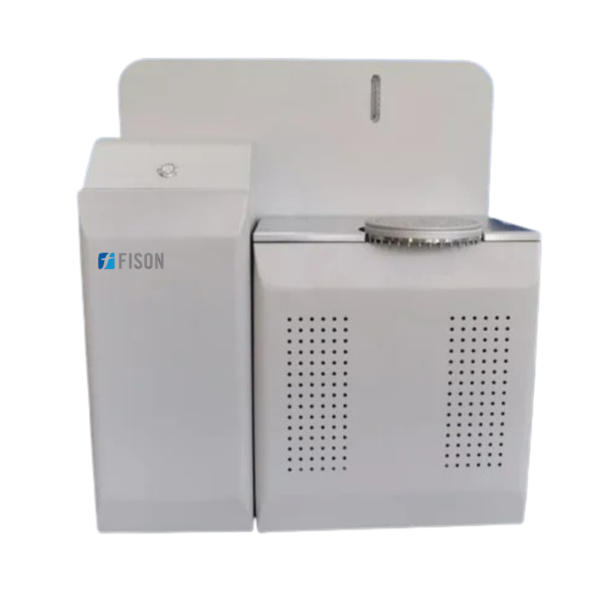

Elemental (CHN) Analyzer FM-CHN-A100 is designed for precise elemental analysis of samples weighing up to 70 to 80 mg. Rapid testing allows for immediate sample insertion and fast results. Automated features, including energy-saving cooling and temperature control, improve efficiency. The advanced detection system guarantees accurate and consistent measurements.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Elemental (CHN) Analyzer is utilized across diverse sectors, including environmental testing, petroleum, coal, chemical manufacturing, pharmaceuticals, agriculture, and food and beverage industries
| Testing Procedure | Infrared spectroscopy : Carbon and hydrogen Thermal conductivity : Nitrogen |
| Detection Range | Carbon: (0.005 to 100%) Hydrogen : (0.05 to25%) Nitrogen:(0.01 to 50 % ) |
| Analysis Time | 300 seconds / sample |
| Sample Mass | 70 to 80 mg |
| Sample Loading | Layered auto-feeder, holds up to 140 samples in 4 levels |
| Repeatability | Carbon (Cad) ≤ 0.5 % , Hydrogen (Had) ≤ 0.15%, Nitrogen (Nad) ≤ 0.08 % |
| Sample Quantity | Up to 1000 mg, depending on sample matrix |
| Heating Method | Resistance furnace |
| Maximum Heat Level | 1050℃ |
| Temperature Precision | 1℃ |
| Power Supply | 220 ± 22V AC, 50 ± 10H |
| Power Consumption | ≤ 4 kw |
| Package Dimension ( Box 1 ) | 600 × 600 × 500 mm |
| Packing Dimension ( Box 2 ) | 8000 × 8000 × 1000 mm |
| Net Weight | 100 Kg |
| Gross Weight ( Box 1 ) | 40 Kg |
| Gross Weight ( Box 2 ) | 140 Kg |
