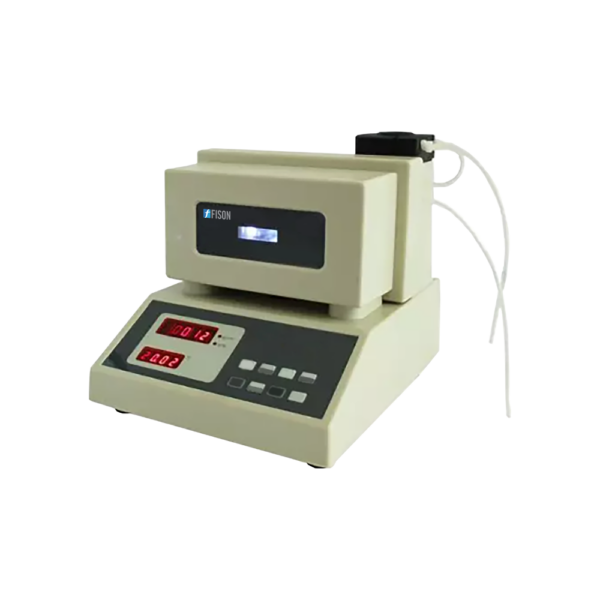

Electronic Liquid Densitometer FM-EDM-A100 configured with U-tube oscillation technique ideal for measuring the density of liquid between 0.0001 to 1.999999g/cm³. Pumping liquid is scaled by a resonant sensor. Our densitometer processed data by a single-chip computer Imported high-speed XFMD chip processing, high sensitivity, and accurate data. Built-in memory can store a capacity of 80 sets of data having for easy recall and deletion
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
It is mainly used in the research and laboratories for measuring the density of diverse liquid samples. Alcohol and sulphuric acid are converted into concentration in beverage industries.
| Measurement Range | 0.0001-1.999999g/cm³ |
| Resolution | 0.0001g/cm3 |
| Repeatability | ±0.0006 g/cm³ |
| Temperature Repeatability | ±0.1°C |
| Accuracy | 0.0001g/cm3 |
| Automatic Temperature Control | 20±0.1°C |
| Environmental Temperature | 5 to 35°C. |
| Sample dosage | 2 Ml |
| Automatic Sampling Detection | YES |
| Display | LED |
| Data storage | 80 measurements in memory |
| Power supply | 220V ± 22V, 50Hz ± 1Hz |
| Dimensions(L×W×H) | 206 ×205 ×200 mm |
| Net Weight | 3.6kg |
