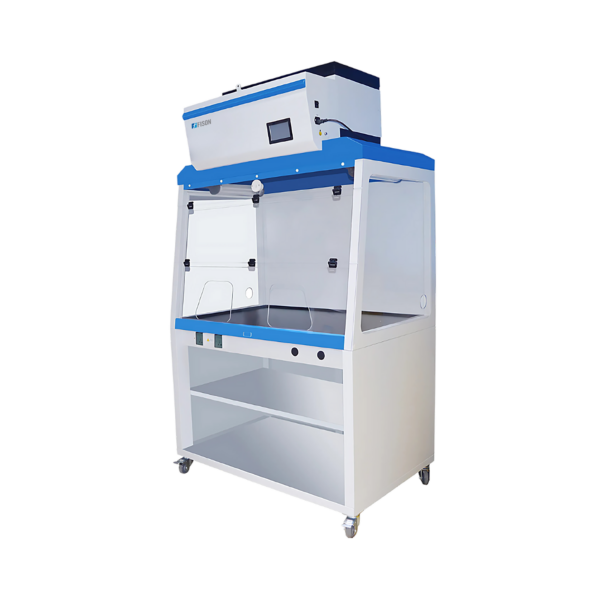

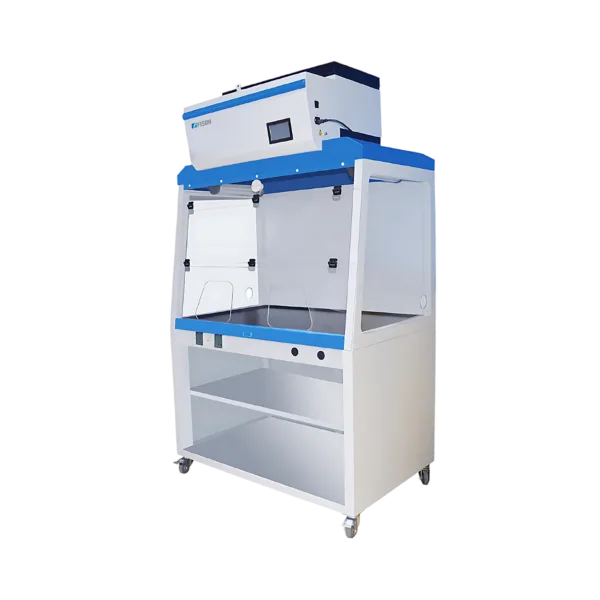

Ductless Fume Hood FM-DFL-A203 is a floor standing unit with microprocessor control system, and LCD display. It comes with 1710 × 690 × 740 mm chamber dimension, 650 mm maximum opening and 4 pcs chemical filter. Equipped with UV lamp for effective sterilization of working environment, centrifugal blower and electronic control system. Designed with three side transparent acrylic glass window, front window with reversal design and waterproof sockets, 4 caster wheel for easy movement and double layer structure: 1 mm metal sheet surface and chemical resistant phenolic resin work table.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used for providing effective working environment for laboratory experiments in various fields of microbiology, chemical, biotechnology, research centers etc.
| Internal dimension (W × D × H) | 1710 × 690 × 740 mm | ||||||
| External dimension (W × D × H) | 1800 × 940 × 2140 mm | ||||||
| Work surface height | 900 mm | ||||||
| Maximum opening | 650 mm | ||||||
| Air velocity | 0.25 to 0.35 m/s | ||||||
| Airflow volume | 415 m3/h | ||||||
| Noise | ≤ 55 dB (A) | ||||||
| Fluorescent lamp | 16 W × 3 | ||||||
| UV lamp | Emission of 253.7 nanometers for most efficient decontamination | ||||||
| Blower | Built-in centrifugal blower, speed adjustable | ||||||
| Front window | Acrylic window; Manual; reversal design; | ||||||
| Material |
| ||||||
| Chemical filter | 4 pcs | ||||||
| Power | 500 W | ||||||
| Power supply | AC 220 V ± 10%, 50/60 Hz; 110 V ± 10%, 60 Hz | ||||||
| Pacakaging dimension |
| ||||||
| Gross weight |
|
