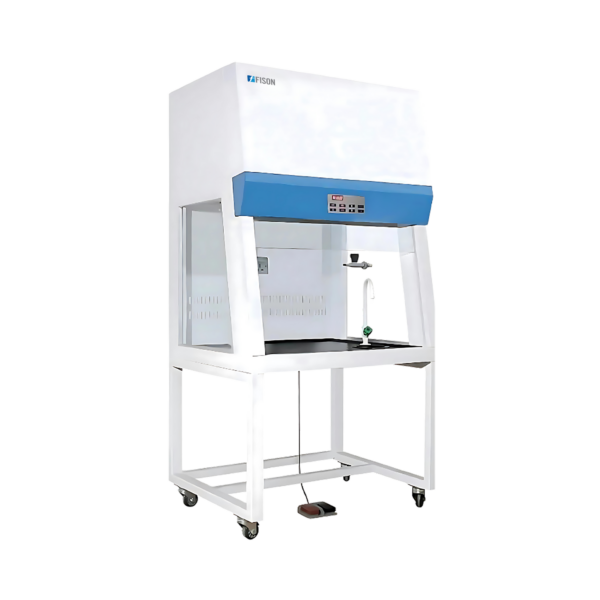

Ductless Fume Hood FM-DFL-A103 is a floor standing unit with microprocessor control system, and LED display. It comes with 1680 × 730 × 745 mm chamber dimension, 520 mm maximum opening and 9 levels adjustable air speed. Equipped with UV lamp for effective sterilization of working environment, centrifugal blower and electronic control system. Designed with three side transparent toughened glass window, anti-UV motorized sliding design front window and waterproof sockets, 4 caster wheel for easy movement, water sink, water tap, gas tap, foot switch, exhaust, active carbon filter and chemical resistant phenolic resin work table.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used for providing effective working environment for laboratory experiments in various fields of microbiology, chemical, biotechnology, research centers etc.
| Internal dimension (W × D × H) | 1680 × 730 × 745 mm | ||||
| External dimension (W × D × H) | 1800 × 840 × 2150 mm | ||||
| Work surface height | 750 mm | ||||
| Maximum opening | 520 mm | ||||
| Air velocity | 0.3 to 0.8 m/s | ||||
| Noise | ≤ 68 dB | ||||
| LED lamp | 16 W × 1 | ||||
| UV lamp | Emission of 253.7 nm for most efficient decontamination | ||||
| Blower | Built-in centrifugal&blower, speed adjustable with 9 levels | ||||
| Front window | Motorized 5 mm anti-UV toughened glass | ||||
| Material |
| ||||
| Waterproof sockets | 2 pcs | ||||
| Power | 500 W | ||||
| Power supply | AC 220 V ± 10%, 50/60 Hz; 110 V ± 10%, 60 Hz | ||||
| Packaging&dimension (W × D × H) | 1950× 1120 × 1680 mm | ||||
| Gross weight | 340 kg |
