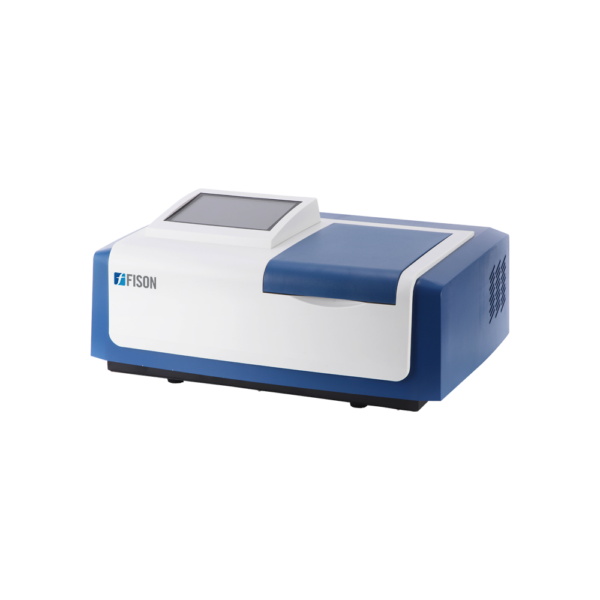

Double Beam UV-Visible Spectrophotometer FM-UVS-C202 comes with a double beam optical system and blazed holographic gratings. With an adjustable bandwidth at 1.5 speed within the range of 190 to 1100 nm, ensures precise results. Incorporates a sophisticated power protection system and ample internal memory. Enhanced with a reliable power protection system and enough memory to store all your test data efficiently
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Double Beam UV-Visible spectrophotometer finds applications across diverse sectors, ranging from pharmaceuticals and environmental monitoring to food and beverage analysis.
| Wavelength Range | 190 to 1100nm |
| Spectral Bandwidth | 1.5nm |
| Wavelength Accuracy | ± 0.5 nm |
| Wavelength Repeatability | ≤ 0.2 nm |
| Grating | 1200 lines/mm |
| Photometric Range | 0.0 to 200.0 %T, -0.301 to -4.000A, 0.000 to 9999 C |
| Monochromator type | Crenzy – Turner |
| Focal length | 160 mm |
| Wavelength | Auto |
| Optical System | Double Beam |
| Photometric Accuracy | ± 0.3% T, ±0.002Abs (0 to 0.5 A), ±0.004Abs(0.5 to 1 A) |
| Repeatability | ≤ 0.15%T , 0.001 Abs (0-0.5A), 0.002 Abs (0.5-1A) |
| Detector | Silicon Photocell |
| Scanning Speed | Fast ,Medium , Slow |
| Stray Light | ≤ 0.03 % T (at220 nm, 360 nm NaNo2) |
| Baseline Flatness | ± 0.002A ( 200 – 1090 nm) |
| Noise | 100% (T) noise≤ 0.15% (T), 0% (T) noises ≤ 0.1% (T) |
| Drift | ≤ 0.0009 Abs/30min (250nm and 500nm after 2h warm-up |
| Display | 8-inch Color Touch Screen |
| Power Consumption | 200 W |
| Power Supply | AC 220 V ± 22 V50 Hz ± 1Hz |
| Packing Dimension( W× D × H) | 710 × 590 × 505 mm |
| Weight | 36 kg |
