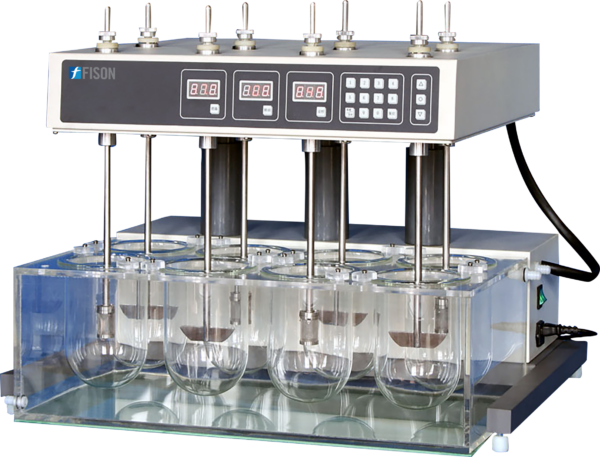

Dissolution Tester FM-DLT-A106 is a microprocessor controlled unit which consists of eight vessels and eight poles (four vessels and four poles at front and other at back) with a speed range of 20 to 200 rpm and time range of 1 to 999 min. It is equipped with a cabinet, control system, electrical system, water bath system, transmission system, sensor, and paddle components. The basket and paddle units are made-up of SUS316L stainless steel. It features magnetism-pumped circular water current to heat the system evenly and has convenient operation with high precision control, mobilization, sensitivity and low noise. The unit has auto testing, auto diagnose and auto alarm system with LED screen to display preset and real data alternately in time.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used in the pharmaceutical, animal feed, pesticides and other industries for detecting velocity and extent of pharmic dissolution from the tablet and capsule during prescriptive menstruum.
| No of vessels | 8 |
| No of poles | 8 |
| Position of vessels and poles | Four vessels and four poles in front and others at back |
| Head part movement | Automatic turn over |
| Speed range | 20 to 200 rpm |
| Speed accuracy | ± 2 rpm |
| Temperature range | Ambient to +45.0°C |
| Temperature Stability | ± 0.3°C |
| Preset timing nine points | 1 to 999 min |
| Time accuracy | ± 0.3% |
| Maximum capacity of beaker | 1000 ml |
| Basket radial run-out | ± 1.0 mm |
| Paddle radial run-out | ± 0.5 mm |
| Power | 1200 W |
| Voltage | AC 220V, 50HzorAC 110V, 60 Hz |
| Dimension (W × D × H) | 680 × 540 × 480 mm |
| Packaging dimension (W × D × H) | 980× 670 × 700 mm |
| Net weight | 74.5 kg |
| Gross weight | 107 kg |
