Dissolution Tester FM-DLT-A103

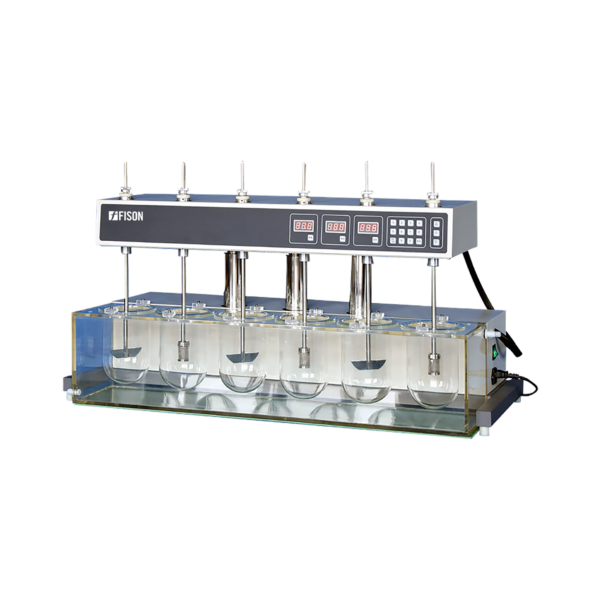

Dissolution Tester FM-DLT-A103 is a microprocessor controlled unit which consists of six vessels and six poles arranged on one line with a speed range of 20 to 200 rpm and time range of 1 to 999 min. It is equipped with a cabinet, control system, electrical system, water bath system, transmission system, sensor, and paddle components. The baskets and paddle units are made-up of SUS316L stainless steel. It features magnetism-pumped circular water current to heat the system evenly and has convenient operation with high precision control, mobilization, sensitivity and low noise. The unit has auto testing, auto diagnose and auto alarm system with LED screen to display preset and real data alternately in time.

Maximize Your Machine Potential

At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.

Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.

Description

Features

Six vessels and six poles arranged on one line
Automatic up and down head movement
Baskets and paddle units are made-up of SUS316L stainless steel
Magnetism-pumped circular water current heat the system evenly and bath liquid achieves an equal temperature
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time
Conveniently operated by keystroke
Preset and real data can be displayed alternately on the LED screen
High automation with auto test, auto diagnose and auto alarm
Time and other parameters can be preset at many points
Tester automatically runs to the next vessel with the automatic beep sound

Applications

Used in the pharmaceutical, animal feed, pesticides and other industries for detecting velocity and extent of pharmic dissolution from the tablet and capsule during prescriptive menstruum.

No of vessels	6
No of poles	6
Position of vessels and poles	Arranged on one line
Head part movement	Automatic turn over
Speed range	20 to 200 rpm
Speed accuracy	± 2 rpm
Temperature range	Ambient to +45.0°C
Temperature Stability	± 0.3°C
Preset timing nine points	1 to 999 min
Time accuracy	± 0.3%
Maximum capacity of beaker	1000 ml
Basket radial run-out	± 1.0 mm
Paddle radial run-out	± 0.5 mm
Power	1200 W
Voltage	AC 220V, 50HzorAC 110V, 60 Hz
Dimension (W × D × H)	960 × 400 × 480 mm
Packaging dimension (W × D × H)	1200 × 510 × 590mm
Net weight	56 kg
Gross weight	84.5 kg
