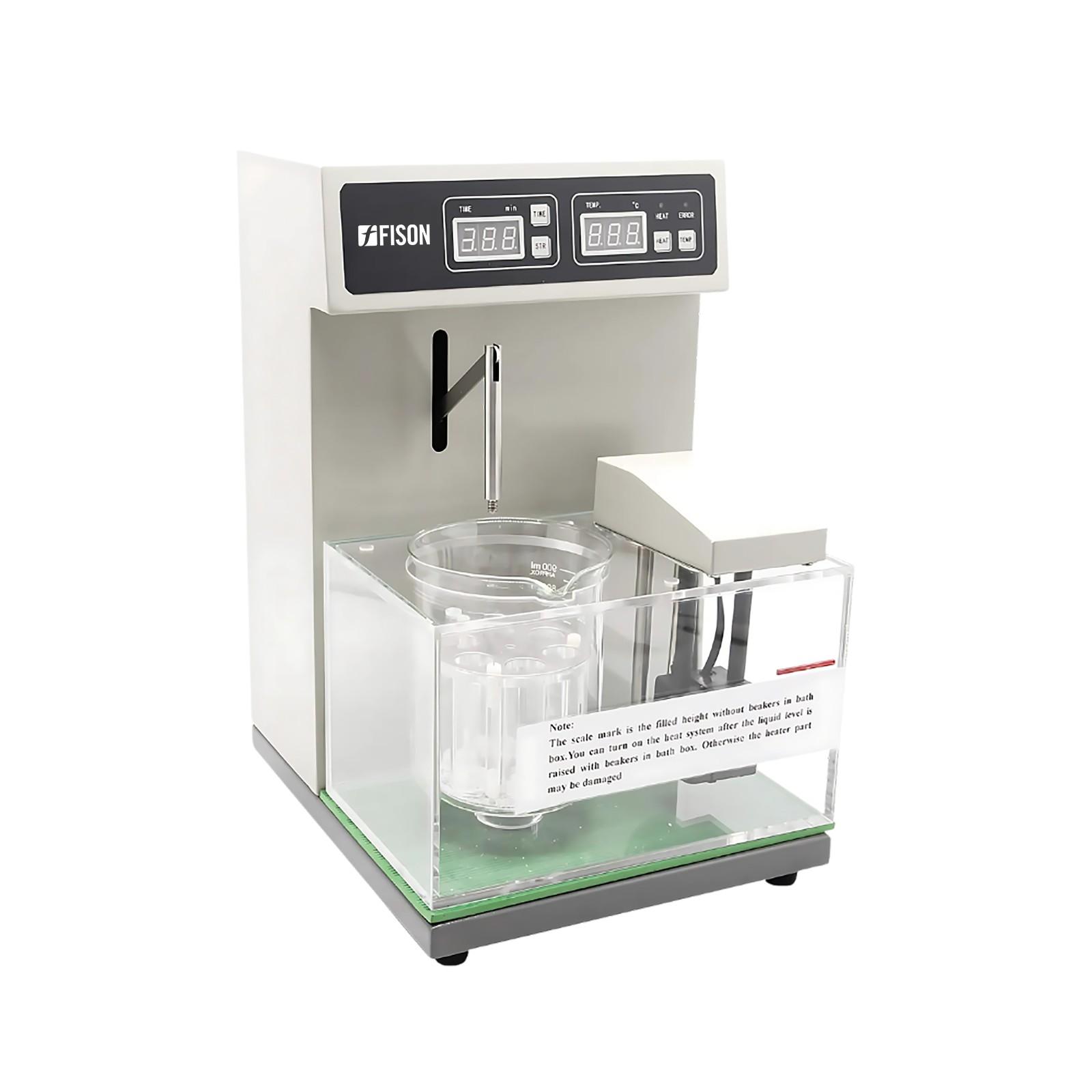

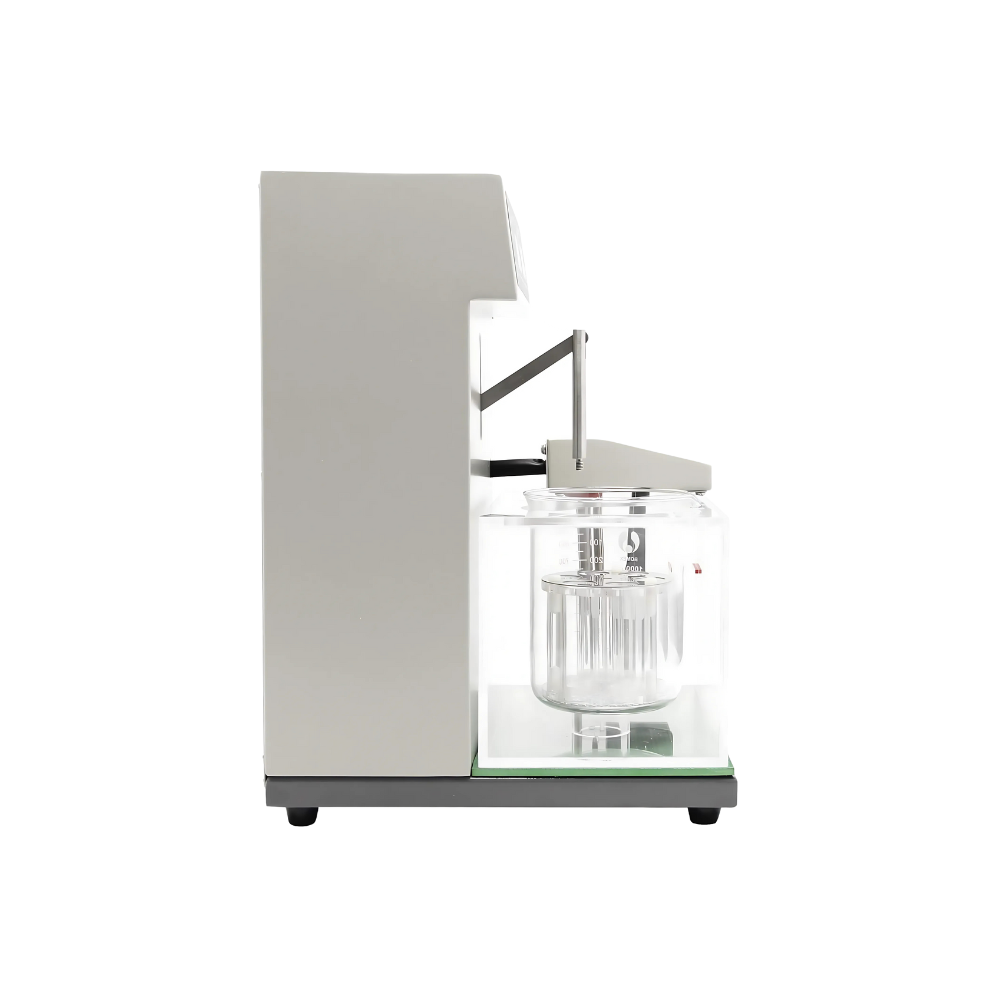

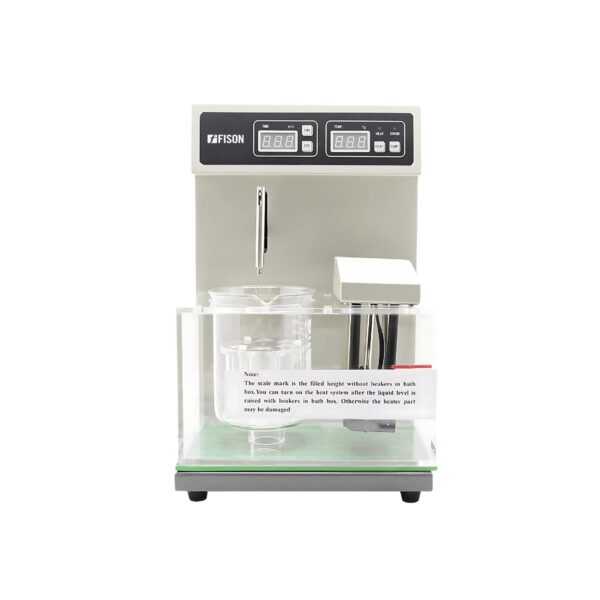

Disintegration Tester FM-DGT-A100 is a microprocessor controlled unit consisting a batch of six tubes in single basket assembly with a temperature range of ambient to 45ºC and automatic time range of 1 to 900 min. It is equipped with a cabinet, control system, electrical system, water bath system, transmission system and sensor. Also features 55 mm basket lifting amplitude, 30 to 32 times per minute nacelle back and forth frequency and 1000 ml flat bottomed beaker capacity. The unit has auto testing, auto diagnose and auto alarm system with LED screen to display preset and real data alternately in time.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Used in the hospitals, medical colleges, research laboratories, pharmaceutical, pesticides and other industries for detecting disintegration of tablet and capsule (solids) in prescriptive conditions.
| Basket assembly | 1 Pc |
| Quantity of Basket glass tube | 6 |
| Flat bottom beaker volume | 1000 ml |
| Temperature range | Ambient to +45.0ºC |
| Temperature accuracy | 37 ± 0.5ºC |
| Nacelle back and forth frequency | 30 to 32 times / min |
| Nacelle back and forth range | 54 to 56 min |
| Automatic time range | 1 to 900 min |
| Basket lifting amplitude | 55 ± 1 mm |
| Screen to cup bottom | 25 ± 2 mm |
| Screen aperture | 0.425 or 0.71 or 1 or 2 mm |
| Continuous working time | > 24 hour |
| Power | 600 W |
| Voltage | AC 220V, 50HzorAC 110V, 60 Hz |
| Dimension (W × D × H) | 260 × 300 × 420 mm |
| Packaging dimension (W × D × H) | 390 × 360 × 500 mm |
| Net weight | 10.5 kg |
| Gross weight | 12 kg |
