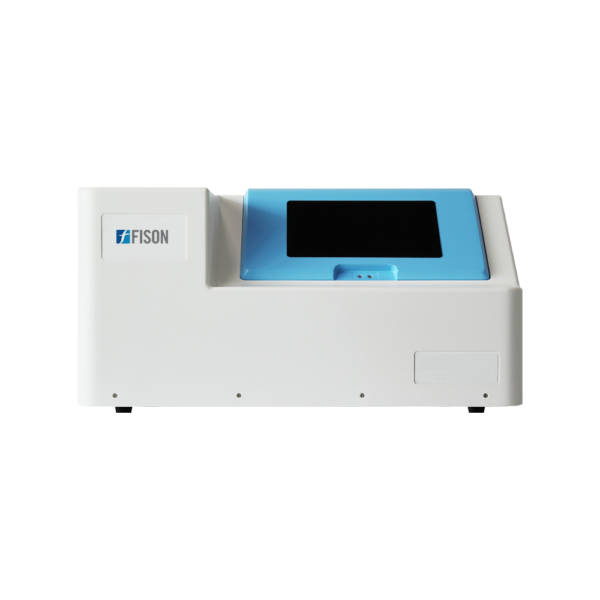

Digital Pathological Slide Scanner FM-DSS-A100 is designed for advanced imaging of pathological slides. It can handle up to 6 slides simultaneously, which ensures efficient high-volume scanning. Each slide is processed in less than 180 seconds, guaranteeing quick turnaround. The scanner boasts automated scanning capabilities and utilizes an LED light source for optimal efficiency.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Digital Pathological Slide Scanner is utilized across various sectors including healthcare, research institutions, pharmaceuticals, and academic settings
| Sample capacity | 6 slides |
| Image resolution | 3200 × 2200 1-inch global shutter camera |
| Frame rate | ≥75 f/s |
| Magnification level | 20 X |
| Numerical Aperture | 0.75 |
| XY stage resolution | 5 µm |
| Z autofocus resolution | 0.25 µm |
| Scanning image resolution | ≤ 0.25 µm/pixel |
| Light source | LED |
| Life span of light source | >20000 hours |
| Sample scan time | Within 180 s |
| Data Management | Local or network |
| Specifications of embedded PC | NVIDIA professional graphics card, PC I0s like keyboard, USB 3.0 |
| Supported Image formats | JPEG or BMP |
| Dimensions | 698 × 464 × 345 mm |
| Packing dimensions | 800 × 550 × 550 mm |
| Net weight | 35 Kg |
| Gross weight | 75 Kg |
