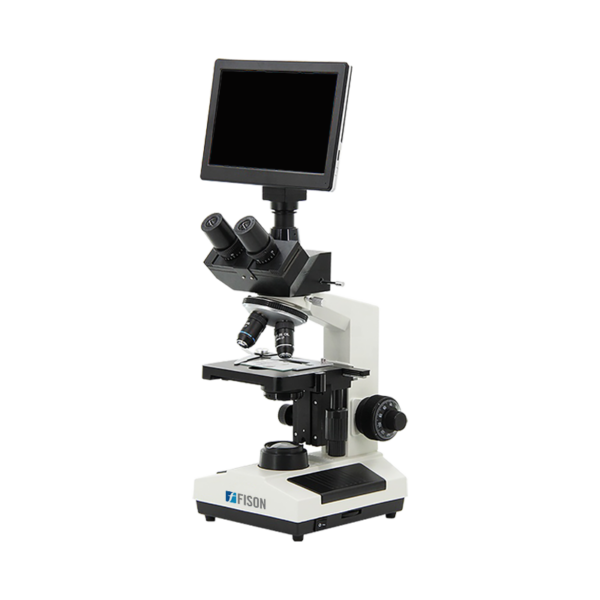

Digital Microscope FM-DM-B100 is a high-quality and advanced digital biological microscope comprising achromatic optical system with 4X, 10X, 40X(s), 100X(s) objectives and blue, green & yellow filters, offers standard magnification of 40X to 1600X. Designed with sliding trinocular head inclined at 45° and with 360° rotation, it has a quadruple nosepiece. 9-inch HD LCD screen with measure, photo, video function, 5.0M HDMI mouse control, USB 2.0 digital camera with TF card, provides real time image output. Features low position coaxial coarse & fine focusing with tension adjustment and up limit. Equipped with widefield eyepiece, double layer mechanical stage and N.A.1.25 abbe condenser, iris diaphragm, with filter holder, this microscope has built-in illumination of halogen lamp and plan-concave mirror.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Digital biological microscope is used across cytological studies, brewing industries, water and waste treatment industries, biotechnology, forensics, dental studies, etc. to inspect and analyse various objects from micro-fabricated parts to large electronic devices.
| Viewing head | Sliding trinocular head inclined at 45°; 360° rotation; Interpupillary distance: 55 to 75 mm; Adjustable tube diopter |
| Head light path | Switch E100: P0/E0: P100 |
| Optical system | Achromatic optical system |
| Illumination | Built-in Illumination 6 V 20 W Halogen Lamp; Plan-concave Mirror |
| Light distribution | Mirror LED |
| Eyepiece | Widefield eyepiece WF 10X/18 mm × 2 pcs; WF 16X/11 mm × 2 pcs |
| Nosepiece | Quadruple Nosepiece |
| Objective | Achromatic 4X/0.10, 10X/0.25, 40X(s)/0.65, 100X(s)/1.25(Oil) |
| Stage | Double Layer Mechanical Stage, 140×140 mm, Moving Range 50×75 mm |
| Standard magnification | 40X to 1600X |
| Focusing | Low Position Coaxial Coarse and Fine Focusing. Fine Focusing Scale 0.002 mm, With Tension Adjustment, With Up Limit |
| Condenser | N.A.1.25 Abbe Condenser, Iris Diaphragm, With Filter Holder |
| Filter | Blue, Yellow and Green |
| Power supply | AC 100 V to 240 V; Wide voltage; Power cord detachable |
| Packaging dimension (L×W×H) | 390×350×520 mm |
| Gross weight | 12 kg |
