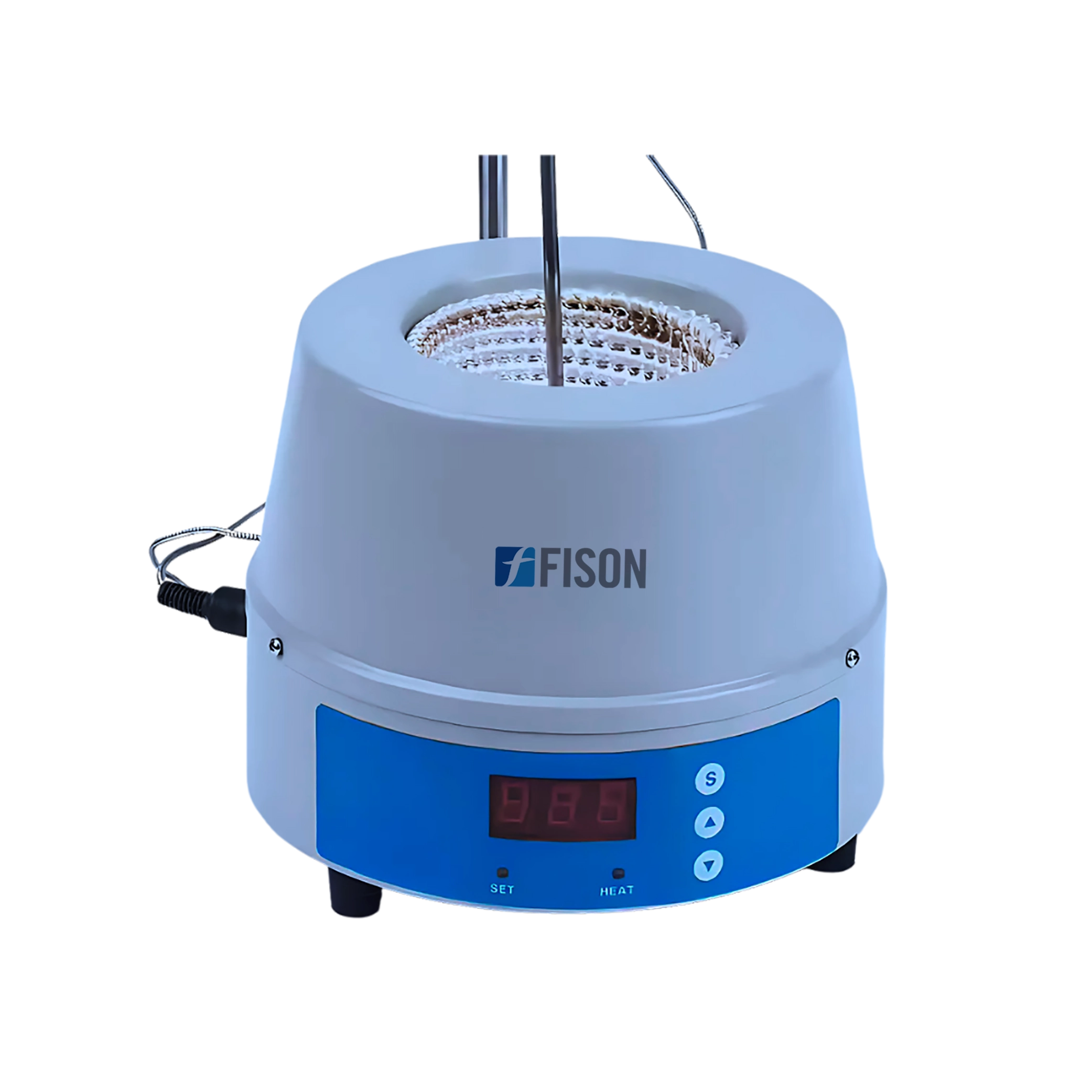

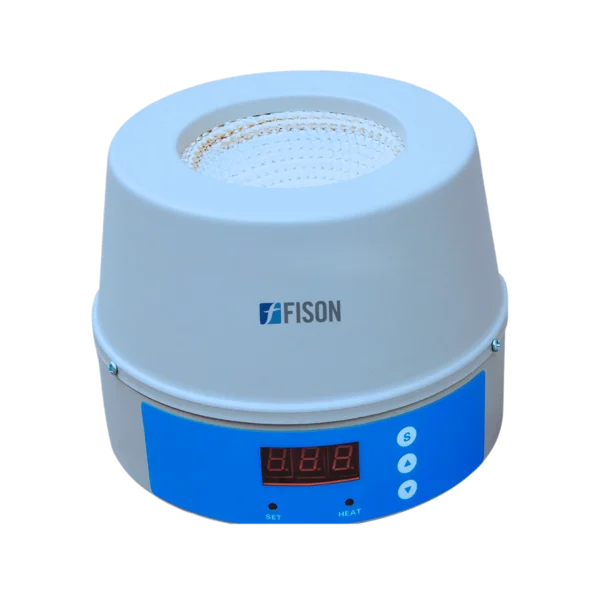

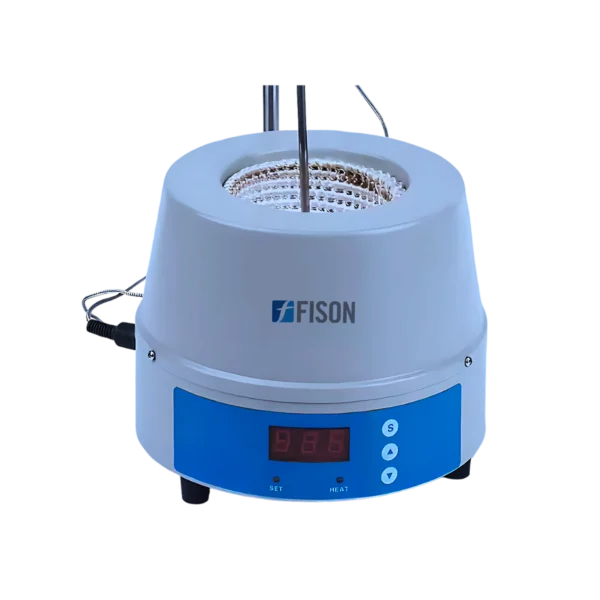

Digital Display Heating Mantle FM-DHM-A100 with a capacity of 50 ml is useful for small-scale chemical reactions. Built with a digital display and distinct light indicators for heat and power status. The mantle can reach a maximum surface temperature of 450°C. Features unique ventilation slots to keep the exterior cool during continuous operation. Our heating mantle is coated with an anti-corrosive layer giving it a longer shelf life.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Our Digital Display Heating Mantle is used in laboratories, pharmaceuticals, hospitals, and medical fields for safe and uniform heating of organic liquids. In research facilities, it is used for the distillation process to extract compounds from the organic sample.
| Capacity | 50 ml |
| Surface Maximum Temperature | 450°C |
| Heating Element | Nichrome Wire |
| Thermal Insulation | Aluminium silicate cotton fiber |
| Working Mode | Continuous |
| Power Consumption | 80 W |
| Power Supply | AC 220 V, 50Hz |
| External Dimension (W × H) | 220 × 165 mm |
| Packaging Dimension (W × D × H) | 230 × 230 × 195 mm |
| Net Weight | 2.5 kg |
| Gross Weight | 2.8 kg |
