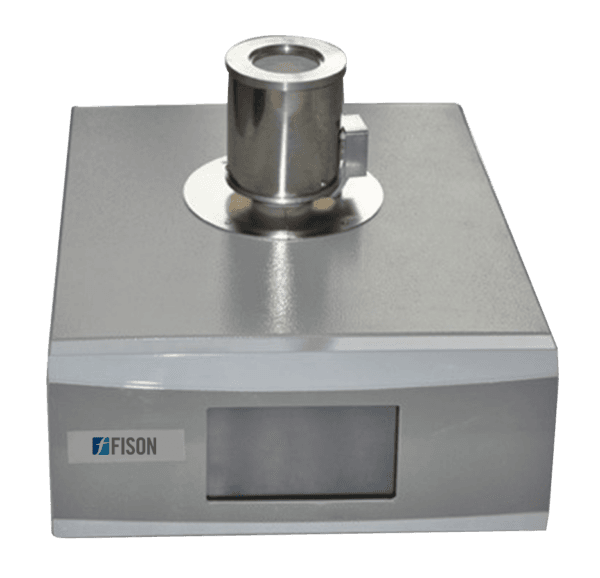

Differential Thermal Analyzer FM-DTA-A100 comes with a furnace body with lid design. It records absorption or emission of heat, physical and chemical changes occurred in a sample with respect to a reference inert material at different phase transitions such as crystallization, melting and sublimation etc. The DTA curve states the changes in phase transition depending on time and temperature.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Differential thermal analyzer is used in material characterization across analytical chemistry, metallurgy, pharmaceutical industry, food, environmental, field’s research and testing.
| Temperature range | RT to 1150°C |
| Measurement range, DTA precision | 0 to 2000 µV, ± 0.1 µV |
| Sample analyzed | Solid and liquidSample |
| Heating speed | 1 to 80°C/ min |
| Temperature resolution | 0.1°C |
| Temperature accuracy | ± 0.1°C |
| Temperature repeatability | ± 0.1°C |
| Air cooled program control | Built-in speed fan next to furnace body |
| Atmosphere control | Built-in gas flowmeter (250ml/min maximum) |
| Display | 24 bit color 7 inch LCD touch screen display |
| Data interface | USB connector, supporting data line, operating software |
| Power consumption | ≤ 2000 W |
| Powersupply | AC 220 V, 50 Hz |
