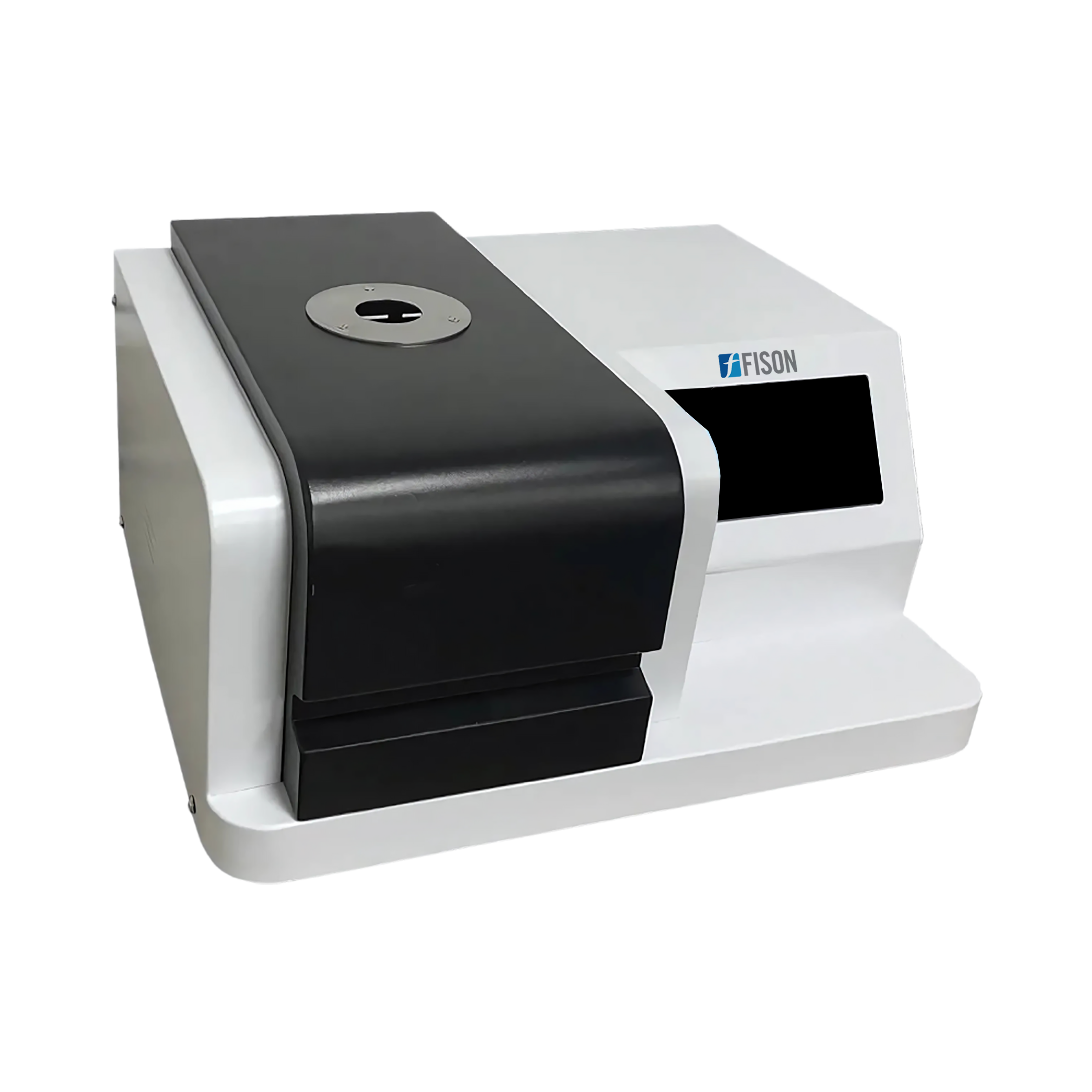

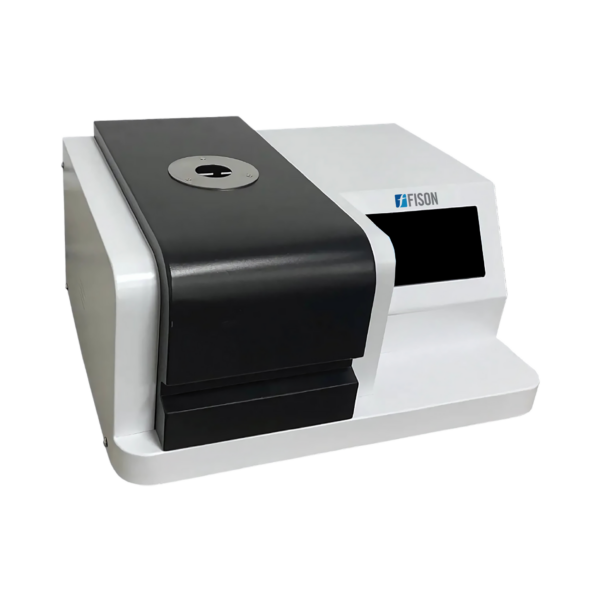

Differential Scanning Calorimeter FM-DSC-A100 offers compact, fully automatic thermal analysis. With a broad temperature range of RT to 550°C, Our unit is suitable for various materials. Equipped with a durable metal furnace body and a 7-inch touchscreen display. Efficient cooling is provided by liquid nitrogen refrigeration. Software control and a USB interface facilitate seamless data management and analysis
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Differential Scanning Calorimeters are essential tools in various sectors, including the polymer industry, pharmaceuticals, food science, chemical production, and material science.
| Temperature range | RT to 550°C |
| Thermal resolution | 0.001°C |
| Temperature variations | ± 0.001°C |
| Temperature repeatability | ± 0.1°C |
| Constant temperature range | Configurable duration up to 24 hours |
| Dynamic heat flow range (DSC range) | 0 to ± 600 Mw |
| Heating speed | 0.1 to 80°C / min |
| DSC signal noise | 0.01Μw |
| DSC resolution | 0.01Μw |
| DSC precision | 0.01Mw |
| Complies with Standards | ISO/TR10837:1991, ASTM D3895-1998, ASTM E 967, ASTM E 968, ASTM E 793, ASTM D 3417, ASTM D 3418, and ISO 11357-6 |
| Control Mode | Automatic temperature rising and fixed-temperature control |
| Curve analysis | Rising scan |
| Gas flow regulation | Embedded digital flow meter and Software control, automatic changing |
| Atmosphere control gas | Nitrogen, Oxygen (auto-switch) |
| Gas flow-rate | 0 to 300 ml/min |
| Gas pressure | 0.2 MPa |
| Cooling device | Air cool` |
| Thermocouples | 3 setsSample temperature measurement Furnace temperature reading Internal ambient temperature measurement |
| Calibration standard | Includes reference material and calibration function for user-adjusted temperature and enthalpy correction |
| Interface | USB |
| Power supply | AC220V/50Hz |
| Packing Dimensions | 620 × 540 × 500 mm |
| Net Weight | 25 Kg |
| Gross Weight | 28 Kg |
