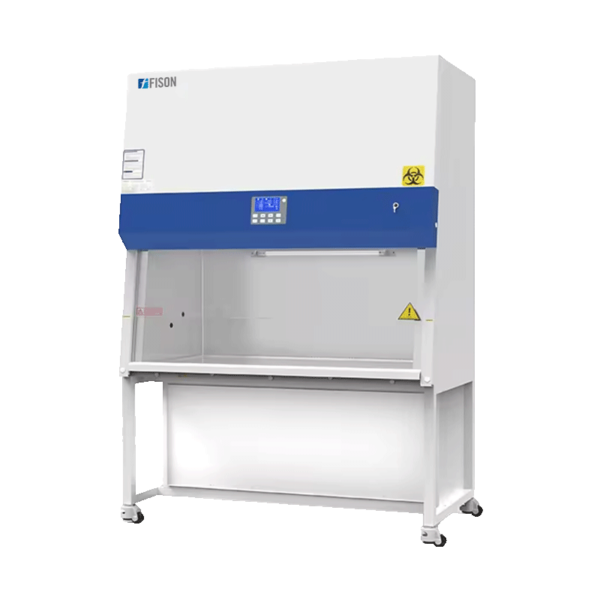

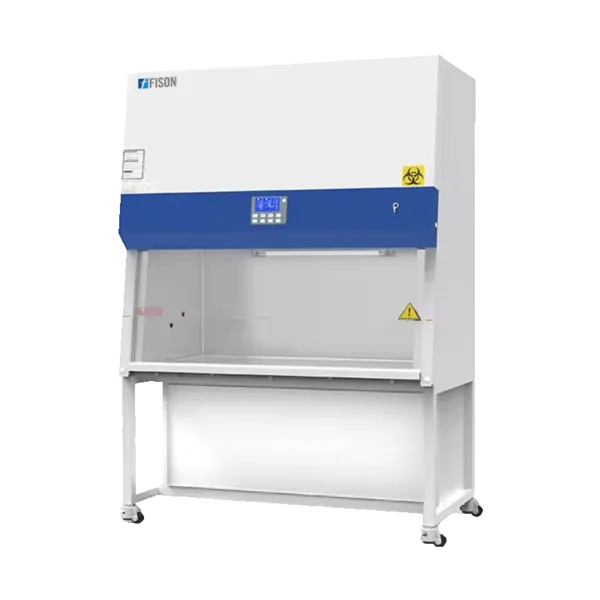

Cytotoxic Safety Cabinet FM-CTC-A101 provides safe environment for handling the cytotoxic drugs. Integrated with UV lamp to ensure precise decontamination. Along with this, bag in and bag out filter simplifies the operation of the cabinet. Equipped with premium quality water and gas taps to ensure smooth workflow. Advances in the cabinet provide user with a remote control to make it more user friendly.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Cytotoxic Safety Cabinet is in action across pharmaceuticals, healthcare, biotechnology, environmental sciences, chemical industries, etc.
| Tested Opening | Safety Height: 200 mm |
| Max Opening | 440 mm |
| Inflow Velocity | 0.53 ± 0.025 m/s |
| Down Flow Velocity | 0.33 ± 0.025 m/s |
| Exhaust Volume | 648 m³/h |
| Air Supply Filter | ULPA filter, efficiency > 99.9995% for particle size at 0.12 µm |
| Exhaust Filter | ULPA filter: First exhaust filter: 0.12 µm efficiency 99.9995% HEPA filter: Secondary exhaust filter: 0.3 µm efficiency 99.995% |
| Alarm System | Abnormal airflow velocity, Filter replacement, Front window at unsafe height; High filter pressure alarm |
| Noise | ≤ 67 dB |
| UV Lamp | 40 W × 1, UV life indicator, UV timer |
| LED Lamp | 16 W × 2 |
| Illumination | ≥1000 Lux |
| Consumption | 1300 W |
| Waterproof Socket | Two, Total load of two sockets: ≤ 500 W |
| Display | LCD |
| Control system | Microprocessor |
| Display parameters | Temperature and humidity |
| Material | Work Area: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria powder coating |
| Front Window | Motorized, two-layer laminated toughened glass N6 mm, anti-UV |
| Caster | Foot master Caster |
| Power supply | AC 220 V±10%, 50/60 Hz, 110 V ± 10%, 60 Hz |
| Exterior dimension (W × D × H) | 1877 × 760 × 2100 mm |
| Interior dimension (W × D × H) | 1700 × 600 × 630 mm |
| Packing dimension (W × D × H) | 2050 × 910 × 2260 mm |
| Gross weight | 430 Kg |
