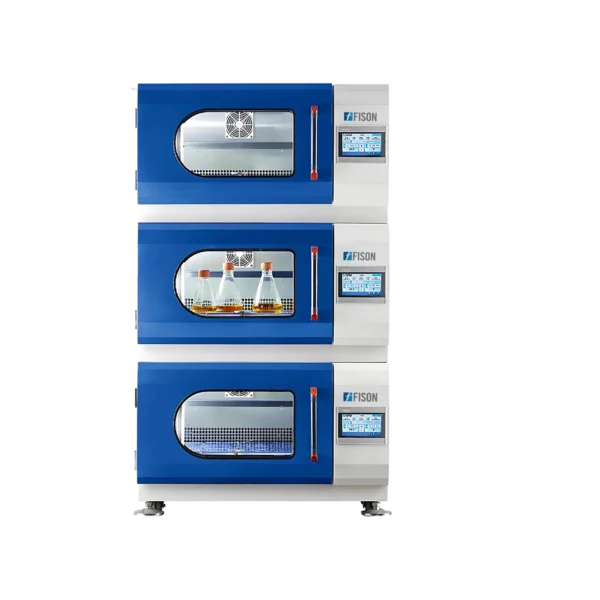

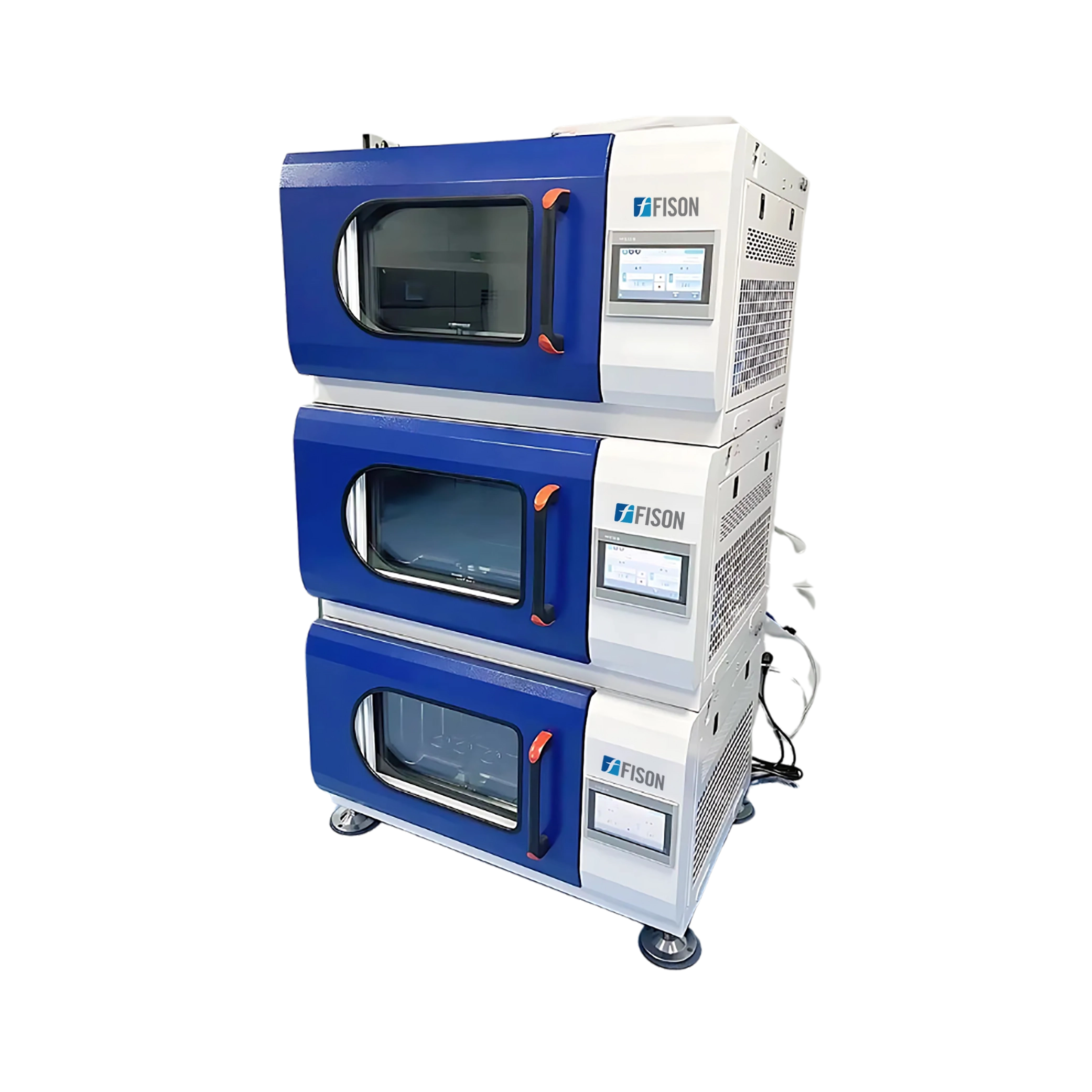

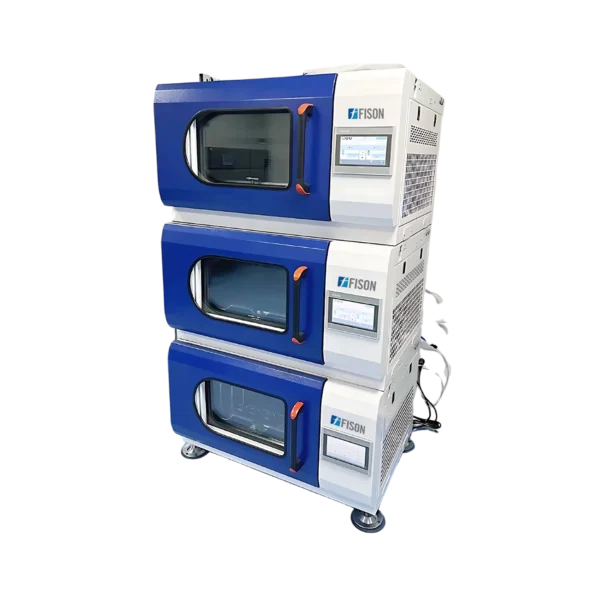

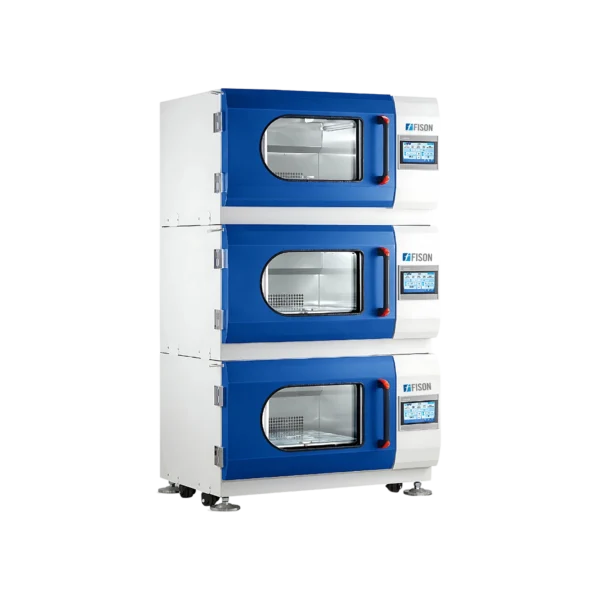

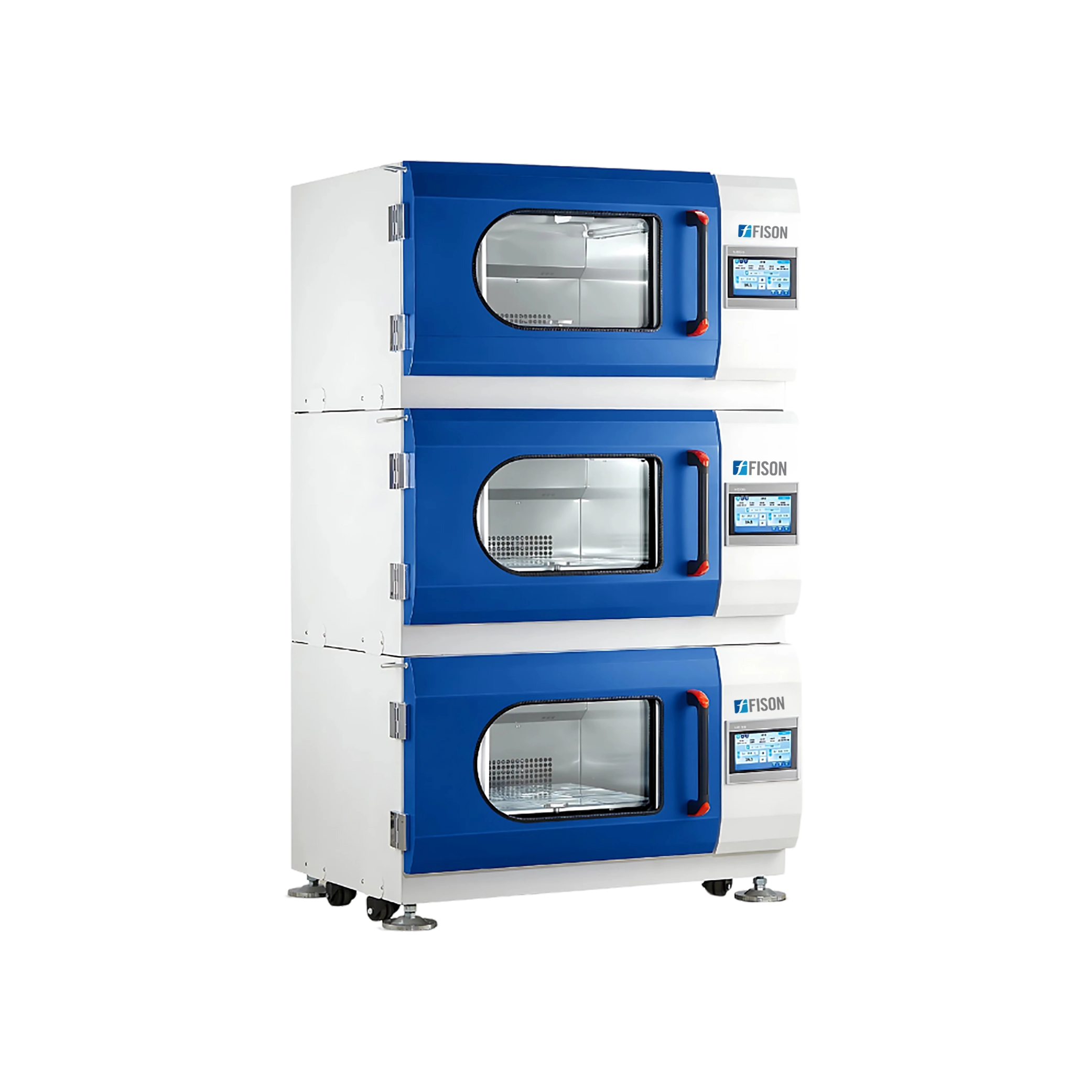

CO2 Shaking Incubator FM-CSI-A104 has a precise temperature distribution of ±0.3 °C at 37 °C, optimal conditions for sensitive cell cultures. It features uniform temperature distribution for consistent results across all samples. This water-resistant design enhances durability and is ideal for lab environments. Our incubator ensures a smooth, vibration-free startup, protecting delicate cultures from disturbances.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
CO2 Shaking Incubator FM-CSI-A104 offers precise control of temperature, CO2, and humidity with UV sterilization, ensuring contamination-free cultures. Their stackable design and built-in shaker optimize space and efficiency for cell biology and microbiology labs.
| Volume | 160 L |
| Rotation Speed | 2 to 300 rpm |
| Speed Control Accuracy | ±1 rpm |
| Shaking Throw | 50 mm |
| Shaking Motion | Orbital |
| Ambient Temperature | 5 to 35°C |
| Temperature Control Range | 4 to 60°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Distribution | ±0.3°C at 37°C |
| Temperature Sensor Principle | Pt-100 |
| Maximum Loading Capacity | 35 Kg |
| Temperature Control Mode | PID control mode |
| Sterilization Method | UV sterilization |
| CO2 Sensor Principle | Infrared (IR) |
| CO2 Control Range | 0 to 20 % |
| CO2 Display Resolution | 0.001 |
| CO2 Supply Pressure | 0.05 to 0.1 Mpa |
| Data Export Interface | USB |
| Historical Data Storage | 800,000 messages |
| Timer | 0 to 999 hours |
| Illumination | Fluorescent tube, 30 W |
| Maximum Power Consumption | 1300 W |
| Power Supply | 115/230 V ±10%, 50/60 Hz |
| Tray Size | 288 × 404 mm |
| Maximum Working Height | 340 mm |
| Tray Capacity of Micro Titer Plates | 32 (24, 48 and 96 well plate) |
| Dimensions (W × D × H) | 1000 × 725 × 620 mm (1 unit)1000 × 725 × 1170 mm (2 units)1000 × 725 × 1720 mm (3 units) |
| Internal Dimensions (W × D × H) | 720 × 632 × 475 mm |
| Weight | 155 Kg |
