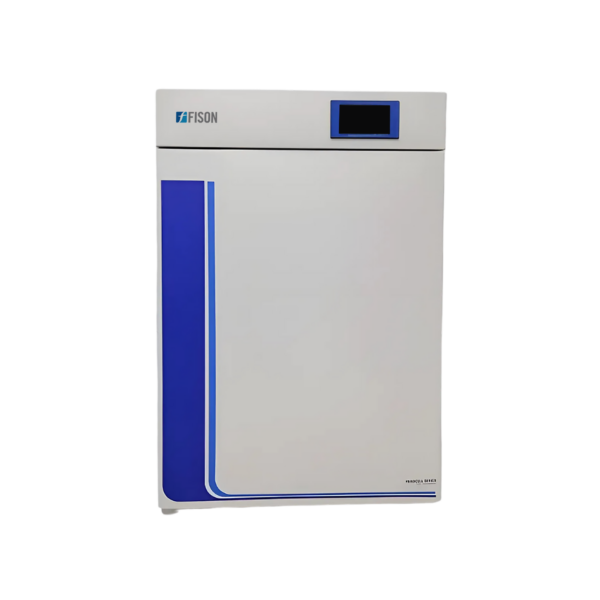

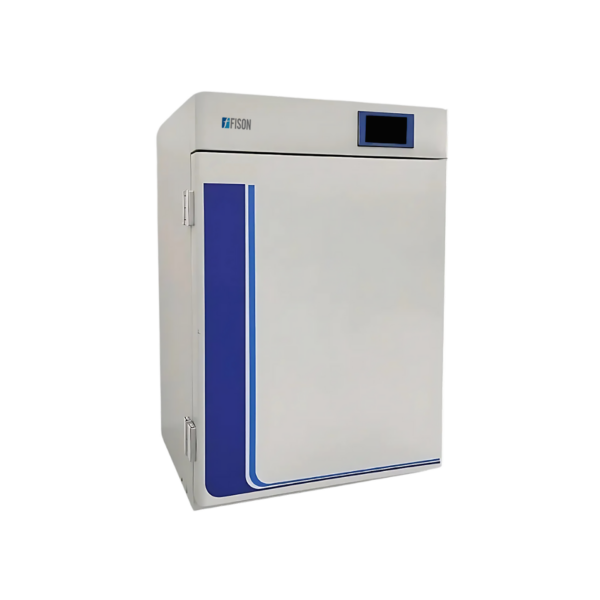

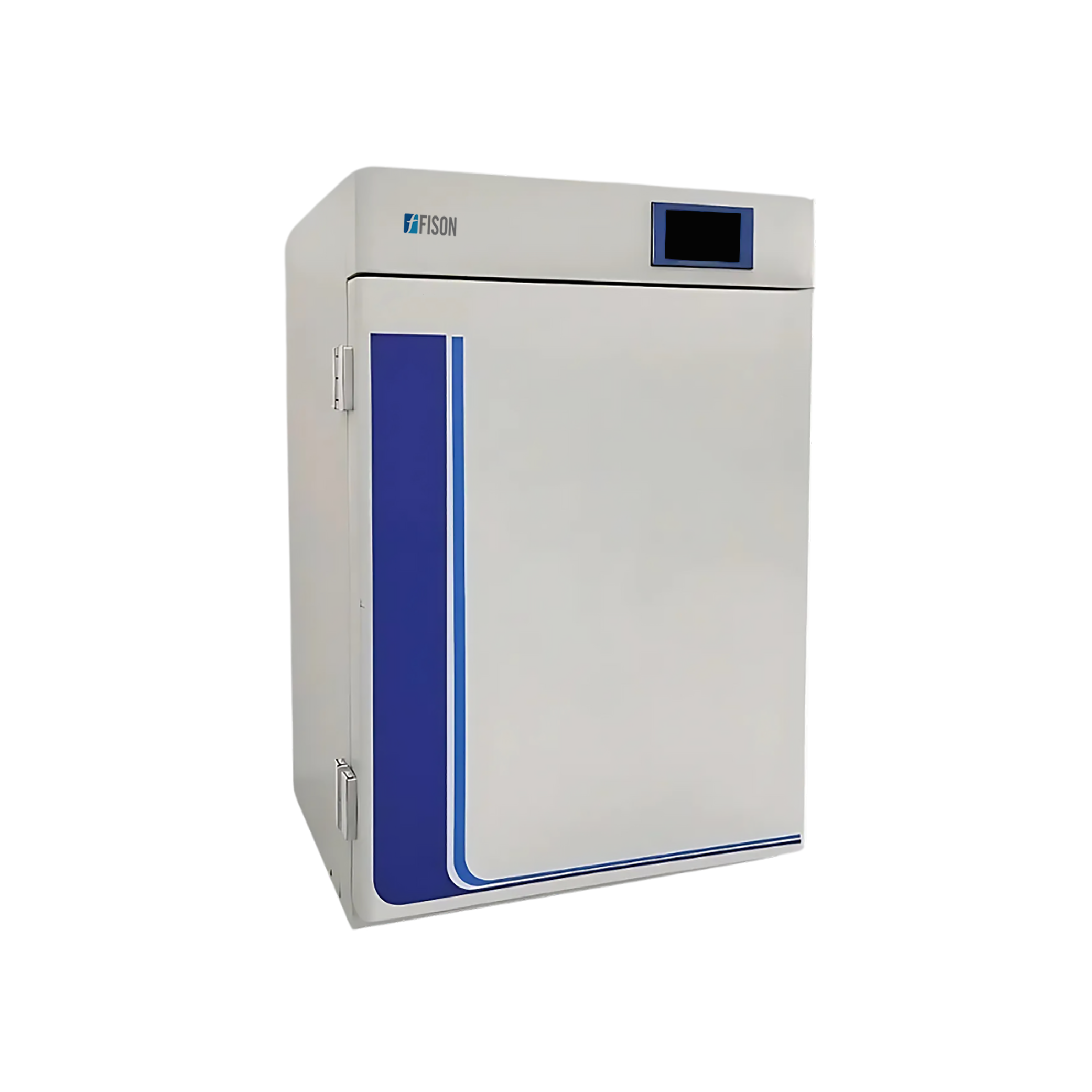

CO2 Incubator FM-CIN-A100 is a lab instrument with a spacious 240 L volume that is ideal for cell culture and microbiological applications. The incubator is equipped with a high-heat sterilization capability reaching up to 140 °C. This ensures a sterile environment, effectively eliminating contaminants and reducing the risk of culture disruptions. Our incubator offers precise CO2 control to maintain an optimal atmosphere.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
CO2 Incubator FM-CIN-A100 maintains ideal conditions for cell cultures by controlling temperature, humidity, and CO2 levels. Its high heat sterilization function eliminates contaminants for research in areas like cell biology and tissue engineering.
| Volume | 248 L |
| Temperature Control Range | Ambient +5 to 60°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Stability | ±0.1°C |
| Temperature Field Uniformity | ±0.3°C at 37°C |
| Timing Function | 0 to 999.9 hours |
| CO2 Measurement Principle | Infrared (IR) Detection |
| CO2 Control Range | 0 to 20 % |
| CO2 Display Resolution | 0.001 |
| CO2 Supply | 0.05 to 0.1 Mpa |
| Relative Humidity | Ambient Humidity ~95% at 37°C |
| HEPA Filtration | ISO 5 Level, 5 Minutes |
| Sterilization Method | 140°C High heat sterilization |
| Temperature Recovery Time | ≤10 min |
| CO2 Concentration Recovery Time | ≤5 min |
| Historical Data Storage | 250,000 Messages |
| Scalability | Up to 2 Units can be Stacked |
| Working Environment Temperature | 18 to 30°C |
| Maximum Power | 1000 W |
| Power Supply | 115 / 230 V ± 10 %, 50 / 60 Hz |
| Internal Dimensions (L × W × H) | 674 × 526 × 675 mm |
| External Dimensions (L × W × H) | 800 × 652 × 1000 mm |
| Net Weight | 132 Kg |
| Gross Weight | 160 Kg |
