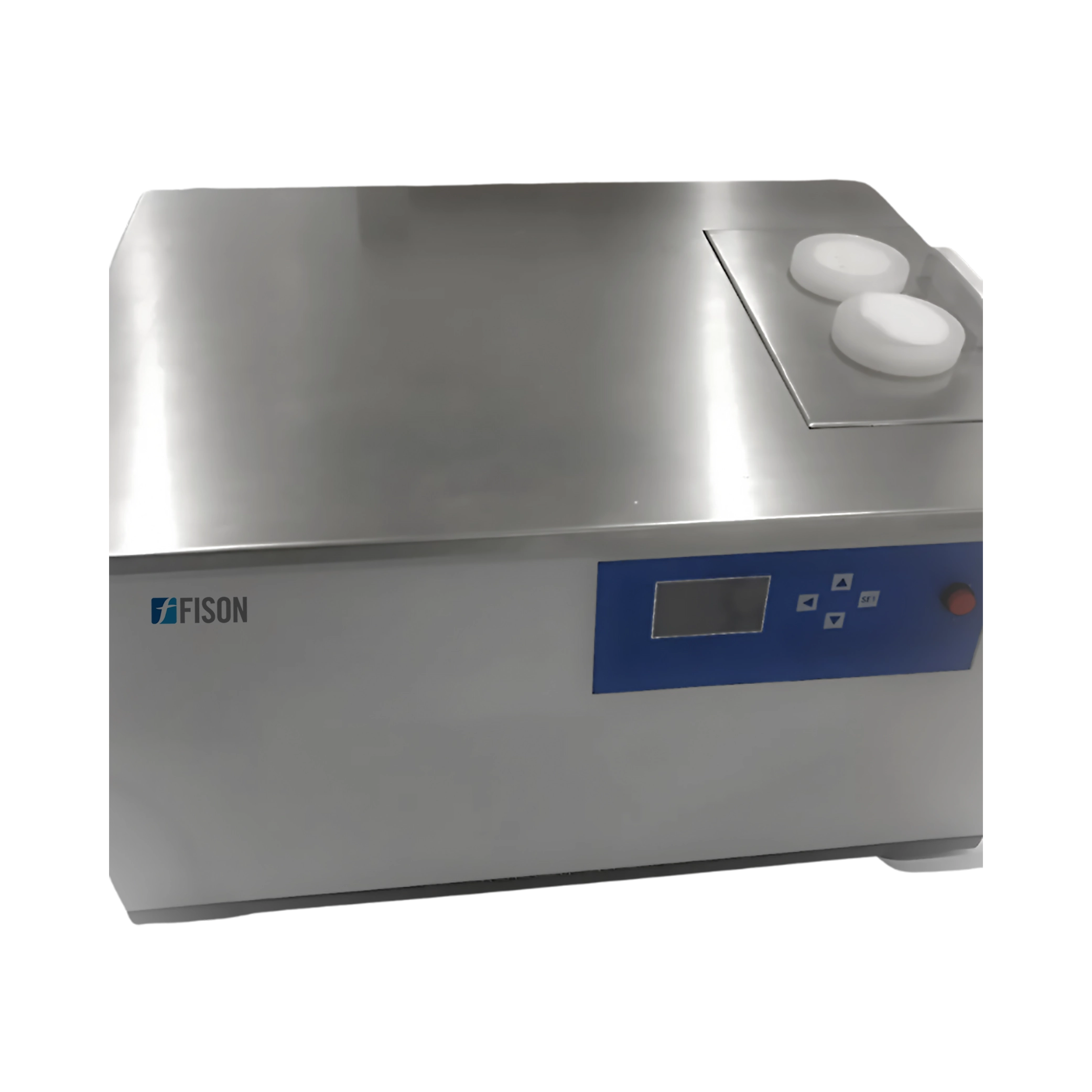

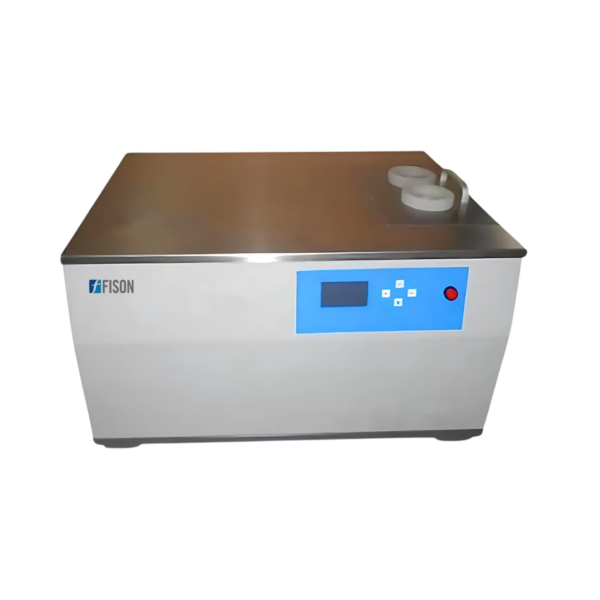

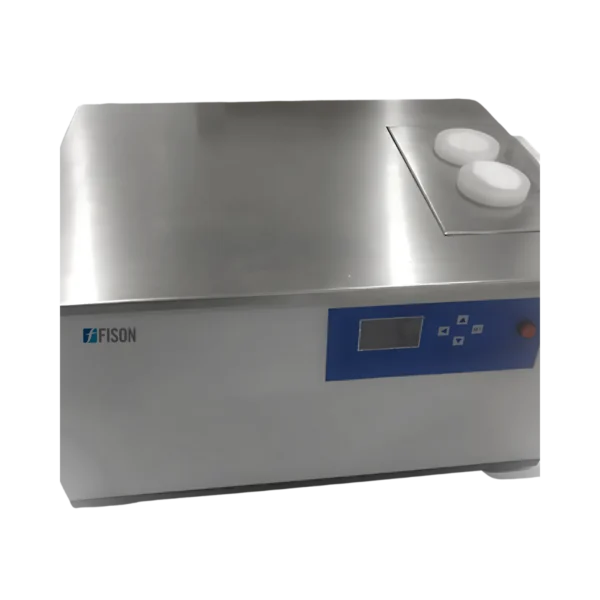

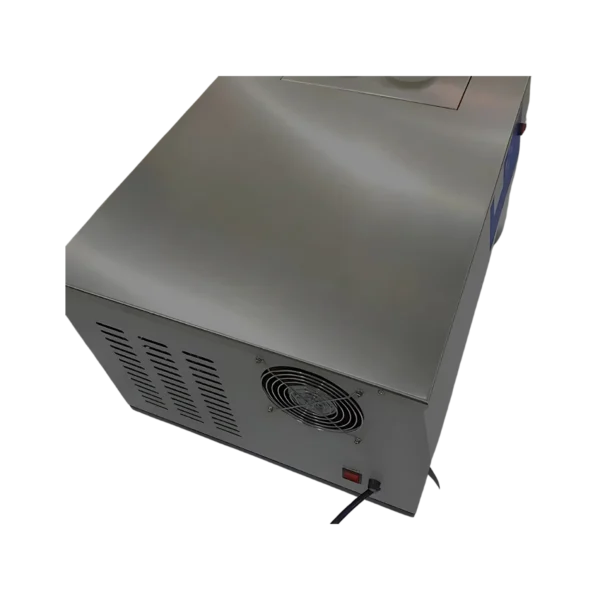

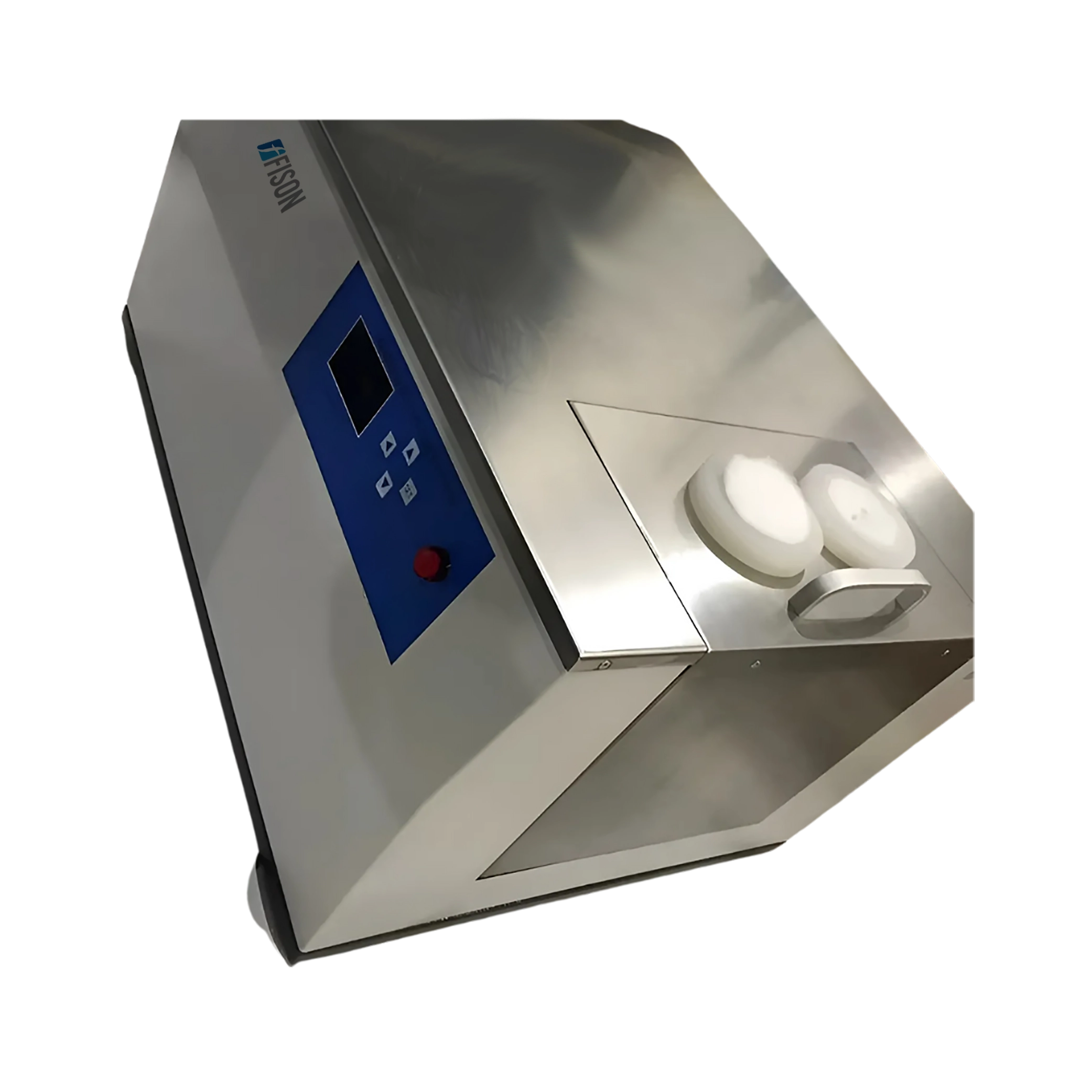

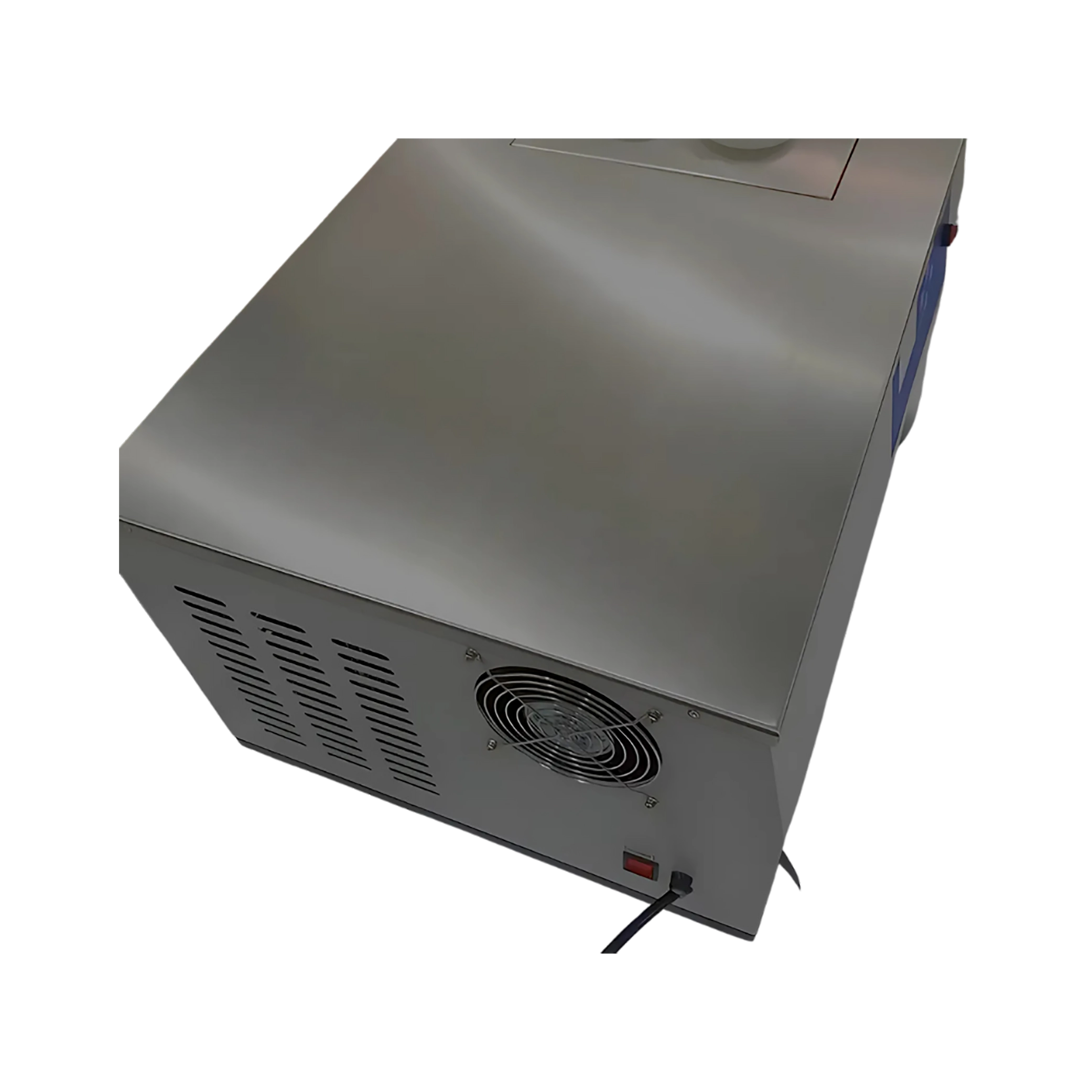

Cloud Pour Point Tester FM-CPT-A100 auto regulates sample temperatures down to minimal sub-zero conditions of -70℃. Powered by U-tube differential suction filter with extraction pressure of 220 mmH2O. Designed with multi-sample capacitated two-bath isothermal system. Built with stainless steel to achieve fire-resistant thermal stability. Our product accurately detects cloud and pour point of petroleum and other fluids.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Cloud Pour Point Tester employs dual technology to measure both cloud and pour point of fluids important to petroleum and bioenergy industries.
| Methods of Temperature Control | One-bath, Two-bath |
| Temperature Measurement Range | -70℃ to Room temperature |
| Temperature Control Accuracy | ± 0.5℃ |
| Working Temperature | ≤ 30℃ |
| Relative Humidity | ≤ 85% |
| Suction Filter Pressure Gauge Type | U-tube differential pressure gauge |
| Filter Extraction Pressure | 1961 Pa (220 mmH2O) |
| Filter Working Temperature | ≤ 40℃ |
| Filter Relative Humidity | ≤ 85% |
| Filter Power Supply | AC 220 V ± 22 V, 50 ± 1 Hz |
| Filter Power Consumption | ≤ 150 W |
| Filter Dimensions | 255 × 100 × 405 |
| Filter Weight | 5 kg |
| Main Unit Power Supply | AC 220 V ± 10%, 50 Hz |
| Main Unit Power Consumption | 700 W |
| Main Unit Dimensions | 600 × 450 × 340 |
| Main Unit Weight | 50 kg |
