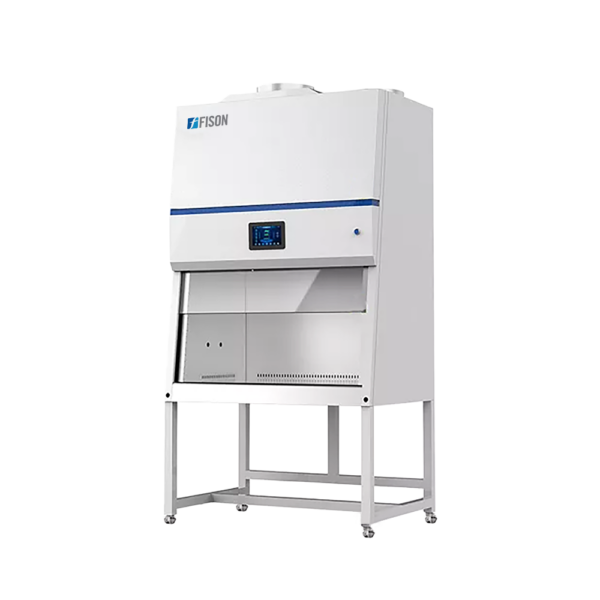

Class II B2 Biological Safety Cabinet FM-BSC-A501 is a preciously designed cabinet, that ensures utmost safety while handling biological materials. With a maximum opening of 420 mm, it ensures a controlled airflow, regulating both inflow and downflow velocities. Configured with an alarm system to alert for abnormal airflow velocity, filter replacement, and unsafe front window height. Our cabinet is enhanced with a washable pre-filter and an efficient ULPA filter boasting 99.999% effectiveness.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Class II Biological Safety Cabinet is utilized as a vital shield against biological threats and contamination in diverse sectors such as pharmaceuticals, culinary, microbiological, and research laboratories, ensuring a secure environment for various scientific application
| Max Opening | 440 mm |
| Tested Opening | Safety Height 200 mm (8 inch) |
| Inflow Velocity | 0.53 ± 0.025 m/s |
| Down flow Velocity | 0.33 ± 0.025 m/s |
| Pre-Filter | Washable |
| ULPA Filter | Two, 99.999 % efficiency at 0.12 μm, filter life indicator |
| Front Window | Motorized, two-layer laminated toughened glass ≥ 6 mm, anti UV |
| Noise | ≤ 65 dB |
| Illumination | ≥ 1000 Lux |
| LED Lamp | 16 W × 2 |
| Power | 850 W |
| Display | LCD display, exhaust filter and down flow filter pressure, filter and UV lamp working time, inflow and down flow velocity, filter life, humidity and temperature, system working time etc. |
| Waterproof Sockets | Two, total load of two sockets,500 W |
| Control System | Microprocessor |
| Airflow System | 0 % Air recirculation, 100 % air exhaust |
| Alarm | Abnormal airflow velocity, Filter replacement, Front window at unsafe height |
| Exhaust Duct | 4 meters PVC duct, Diameter 300 mm |
| Material Work Zone | 304 stainless steel |
| Material Main Body | Cold-rolled steel with anti-bacteria powder coating |
| Work Surface Height | 770 mm |
| Caster | Foot master caster |
| UV Lamp | 40 W × 1 UV timer, UV life indicator, emission of 253.7 nano meters for most efficient decontamination |
| Illuminating Lamp | 1000 lux |
| Power Consumption | 1300 W |
| Power supply | AC 220V ± 10 %, 50/60 Hz; 110V ± 10 %, 60 Hz |
| Internal dimension (W×D×H) | 1350 × 600 × 660 mm |
| External dimension (W×D×H) | 1500 × 775 × 2250 mm |
| Net Weight | 64 kg |
| Gross weight | 300 Kg |
