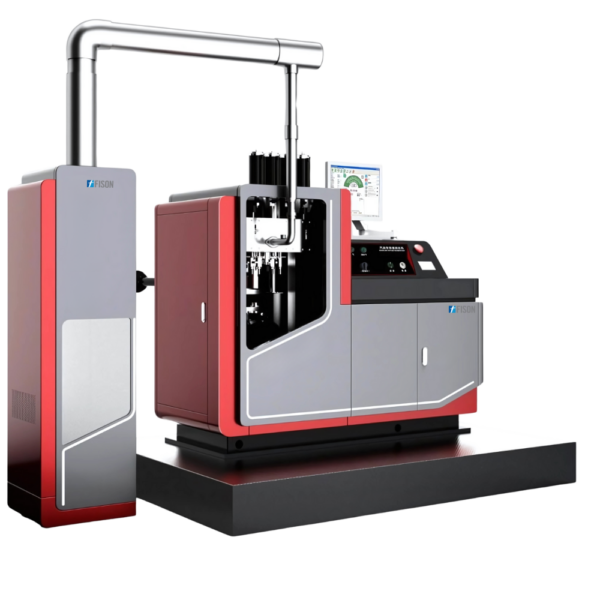

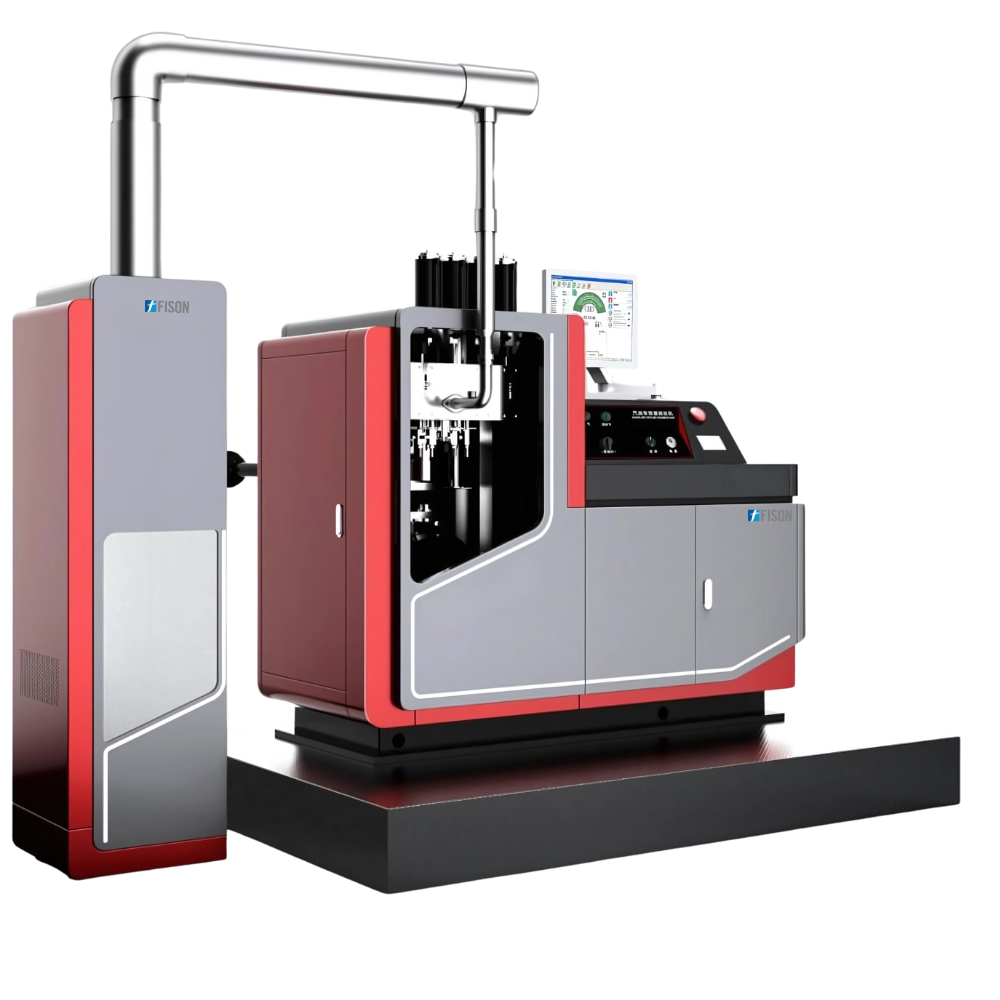

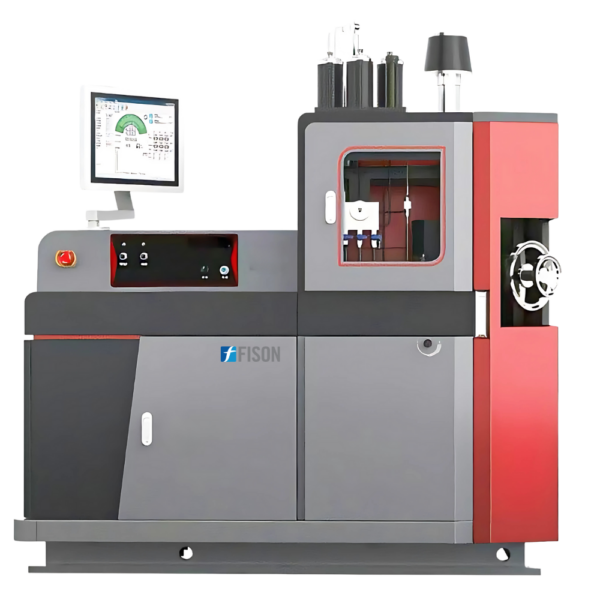

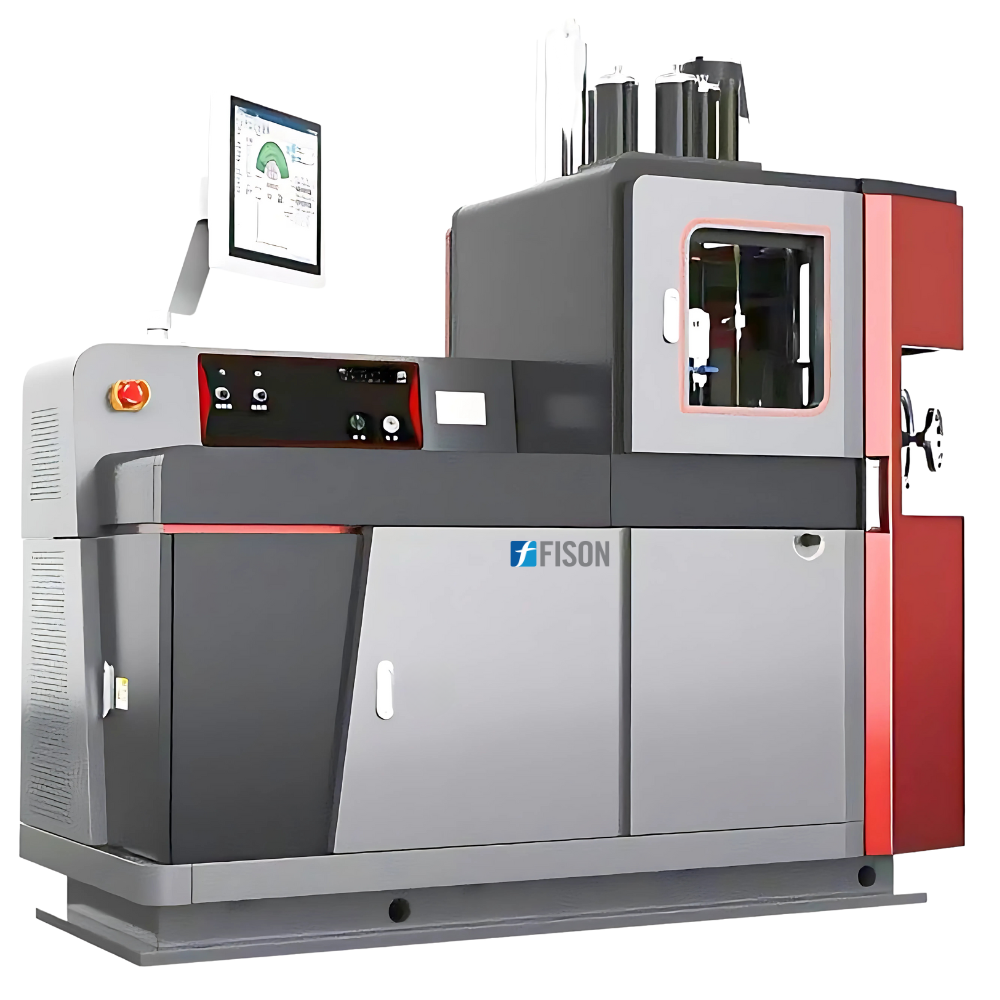

Cetane Analyzer FM-CTA-A100 features a piston stroke of 114.3 mm, ensuring precise and consistent engine operation for accurate cetane number measurements. It includes a single-cylinder, four-stroke engine with a variable compression ratio for precise fuel testing. This maintains a stable cylinder jacket coolant temperature for engine performance. Our Analyzer has precise temperature controls, ensuring optimal testing conditions for accurate results.
At Dyrec, we are committed to empowering your business with the latest solutions. Our top-quality rotary joints are designed to optimize the performance of your equipment.
Take the next step toward success by contacting us or downloading our comprehensive product guide. Your journey toward success begins here.
Cetane Analyzer FM-CTA-A100 is used in laboratories, fuel testing facilities, and industries that accurately measure the cetane number of diesel fuels. It applies to diesel fuel quality evaluation, ensuring compliance with international standards and optimal performance.
| Piston Stroke | 114.3 mm (4.5 inch) |
| Range of Compression Ratio | 8:1 to 36:1 |
| Inner Diameter of Cylinder | 82.55 mm (3.25 inch) |
| Engine Speed | 900 ± 9 r/min |
| Injection Flow Rate | 13.0 ± 0.2 ml/min |
| Oil Atomizing Advance Angle | 13° ± 0.2° (BTDC) |
| Injector Coolant Passage Temperature | 38 ± 2 ℃ |
| Fuel Pressure | 172 to 207 kPa |
| Fuel Temperature | 57 ± 8 ℃ |
| Cylinder Jacket Coolant Temperature | 100 ± 2 ℃ |
| Intake Air Temperature | 66 ± 0.5 ℃ |
| Engine Cycling Water Temperature | ≤ Ambient Temp. + 5 ℃ |
| Power Supply | 380 VAC ± 10%, 50 Hz, 3 Phase |
| Power Consumption | 10,000 W |
| Dimensions (L×W×H) | 1450 × 720 × 1750 mm |
| Weight | 1000 kg |
